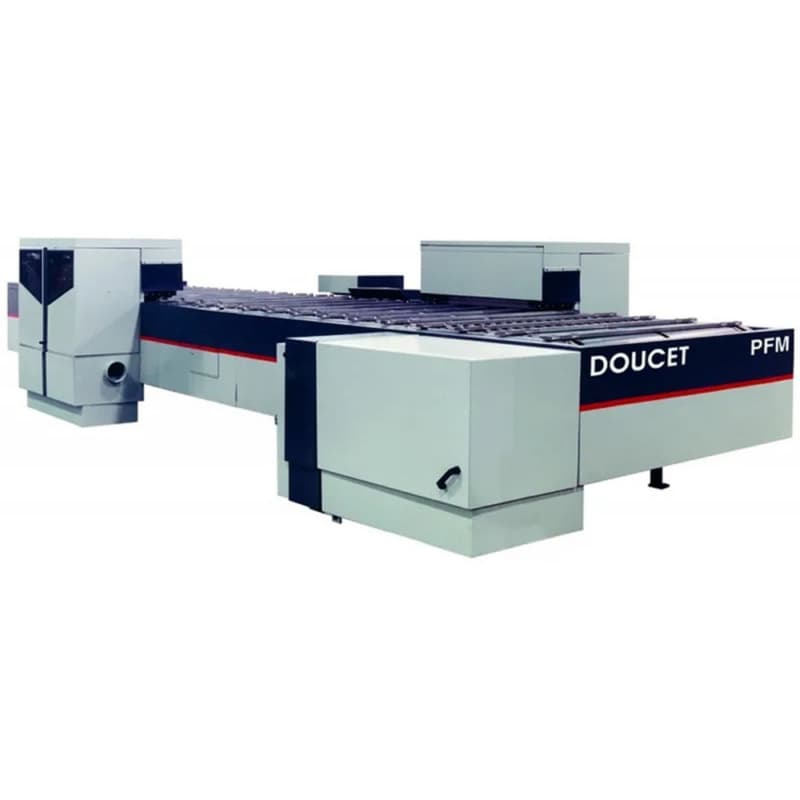

The Doucet PFM End Matcher ensures accurate squareness. It's built for premium wide board flooring. Handling diverse wood species and sizes, it streamlines changeovers. With time-saving features, it's robust and high-performance. Ideal for manufacturers seeking efficiency, flexibility, and quality.
Key Features & Benefits
Precision Squareness for Premium Flooring
• Engineered to meet high squareness standards, ideal for wide plank production
• Machining centers are fully enclosed, ensuring both precision and operator safety
• End matching is consistent across various board sizes and species
Versatile Material Handling for Different Dimensions
• Accommodates boards from 1.75" to 8.25" wide and 0.375" to 0.75" thick
• Even-ended rollers manage boards from 7' to 8' in length without jamming
• Transfers, aligns, and outfeeds boards seamlessly using 24" conveyors
Efficient Feed and Drive System for Continuous Operation
• 10 HP variable speed main drive reaches up to 60 FPM, balancing power and control
• Five 3 HP machining motors ensure reliable cutting and shaping
• Traverse bar conveyor with 12" spacing handles production flow smoothly
Quick Changeovers to Maximize Uptime
• Simplified setup reduces downtime between production runs
• Optional conveyor extensions support multiple cut-off saw configurations
• Automatic chain oilers keep the system running with minimal maintenance
Advanced Features to Prevent Tear-Out
• Jump scoring saw on tongue side prevents front corner tear-out
• Jump scoring saw on groove side ensures clean intersections
• Optional "soft touch" hold-down system for pre-finished materials
• Traverse bar extensions (6' or 11') for multiple cut-off saws
Safety and Dust Control Built-In
• Interlocked doors on machining centers protect the operator
• Dust collectors beneath the machining centers maintain a cleaner work area
• Fully enclosed machining zones minimize airborne particles and hazards
- Conveyor Size: 25' x 5'
- Feed Speed: 60 FPM
- Lubrication System: Automatic Chain Oilers
- Motor: 10 HP
- Thickness: 0.375" to 0.75"
- Traverse Bars Center-To-Center: 12"
