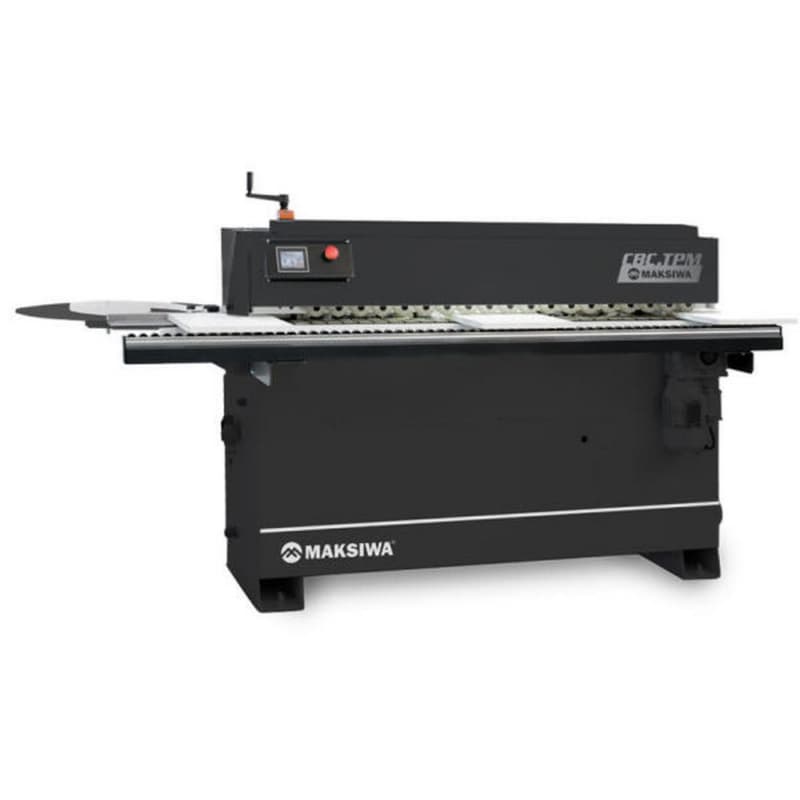

The Maksiwa CBC.TPM is a high-performance automatic edgebander designed for shops seeking professional-grade results in a compact footprint. Built for precision, ease of use, and reliability, this machine features pre-milling, top and bottom trimming, and buffing stations to deliver clean, seamless edge applications across a range of panel materials. Whether you're working with PVC, ABS, wood veneer, or melamine, the CBC.TPM ensures a factory-quality finish on every job.
Key Features & Benefits:
Robust & Compact Machine Structure:
• Industrial steel frame construction ensures long-term stability and durability.
• Compact design ideal for small to mid-sized shops without compromising on performance.
• Easy-access panels and clear layout for maintenance and adjustments.
Advanced Edgebanding Capabilities:
Pre-Milling Station:
• Two high-frequency motors (12,000 RPM) with diamond cutters prepare the panel edge by removing up to 1.5mm of material.
• Ensures a clean, square surface before glue applicationeliminating imperfections from prior cuts.
Glue Pot & Application:
• Teflon-coated 1.5kg glue pot with precise temperature control for EVA hot melt glue.
• Adjustable glue spreader ensures even application with reduced waste and improved adhesion.
Edgebanding Specifications:
• Handles banding from 0.4mm to 3mm thick and panel thickness from 10mm to 45mm.
• Capable of applying edge material on panels up to 2500mm long.
• Manual banding height adjustment with digital readout for fast, accurate setups.
Top & Bottom Trimming Units:
• Dual HF trimming motors (12,000 RPM) for fast and precise trimming of overhanging edge material.
• Linear guides ensure accuracy, and adjustable settings provide clean results on various edge types.
Buffing Station:
• Dual buffing wheels polish the edges, removing any remaining glue residue and enhancing the finish.
• Delivers a smooth, professional edge ready for immediate use or final packaging.
Smart Operation & Ergonomics:
• Digital control panel with easy-to-use touchscreen interface.
• PLC-controlled sequence of operations with integrated safety features.
• Manual panel feed with ergonomic support table and adjustable side guides for accurate alignment.
Built-in Safety & Support:
• Safety covers over working units and emergency stop buttons located within easy reach.
• Clear dust collection ports for cleaner operation and improved visibility.
• Includes tool kit and user manual for setup, calibration, and maintenance.
- Edgebanding Coil Support Diameter: 59"
- Edgebanding Thickness: 0.0157" - 0.07"
- Extendable Panel Support Rail Length: 83-1/2"
- Extension Table Max Width: 10"
- Feed Speed: 21 FPM
- Glue Pot Capacity: 1 lbs
- Glue Pot Temperature: 356°F - 410°F
- Max Pre-Milling Height: 1"
- Max. Edgebanding Height: 1"
- Max. Machine Dimension: 93-1/2" x 40-13/16" x 53"
- Min. Panel Length: 7-7/8"
- Min. Panel Width: 4-3/4"
- Min. Dust Collection Requirements: 7 SCFM @ 90 PSI
- Net Weight: 1191 lbs
- Min/Max Panel Thickness: 10-40 MM
- Recommended Glue: Granulated Hot-Melt EVA
- Shipping Dimension: 91" x 30" x 57"
- Size Of Dust Collector Ports: 5"
- Sound Rating: 80 dB
