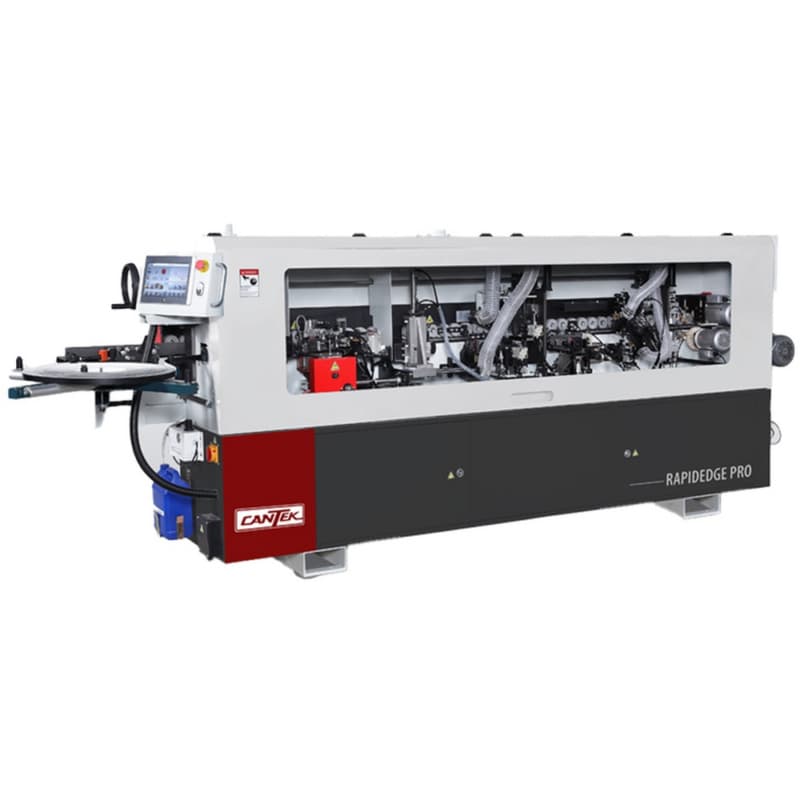

The Cantek MXRAPIDEDGE Automatic Edgebander is engineered for high-performance edge banding. Offering rapid changeovers and precision trimming, it is ideal for professional-grade results with minimal downtime. With a compact design, this machine is built to streamline production and maximize output. It's the perfect choice for shops looking to enhance efficiency without compromising quality.
Key Features & Benefits
Rapid Changeover for Speedy Production
- The MXRAPIDEDGE can apply edges from 0.4 mm to 3 mm with fast changeovers
- Quick glue pot change ensures minimal downtime during production
- Achieve optimal speed of 29 FPM (9 m/min) for higher output
High-Precision Trimming for Perfect Edges
- End trimming system with high-frequency 12000 RPM motor guarantees clean cuts
- Top and bottom trimming units with a rapid adjustment system for different edge thicknesses
- Corner rounding unit delivers consistent radius finishes for a professional look
Advanced Glue Application for Clean Edges
- Teflon-coated glue pot for quick, mess-free application
- Adjustable glue feed for customized application based on materials
- Glue-free edgebanding option reduces material costs and improves efficiency
Efficient Feed System for Smooth Operation
- Heavy-duty chain feed system ensures stable workpiece handling
- Pressure roller unit improves glue bond quality
- Spring-loaded pressure system adapts to various edge thicknesses
Rapid Edge Application for Maximum Output
- Achieve optimal production speeds with minimal setup time
- Streamlined operation for quick and precise edge banding on all materials
Precision Trim for a Flawless Finish
- Advanced trimming system ensures clean and accurate edge finishes
- Consistent results on both straight and curved surfaces.
- Automatic adjustments for different edge thicknesses and finishes
Durable Construction for Longevity
- Built with high-quality components for daily industrial use
- Reliable operation even under heavy workloads
- Long-lasting performance with minimal maintenance
User-Friendly Touch Screen Interface
- Easy-to-use interface for all skill levels
- On-screen error diagnostics for quick issue resolution
- Effortless machine control with intuitive settings
- Weight: 2,618.000 lbs
- Dust Collection Outlet: 5" x3 (127 mm x3)
- Edge Thickness: 0.0158"~0.118" (0.4 ~ 3 mm)
- Electrical Consumption: 11.4 HP (7 kW)
- Electrical Requirements: 230 /3 /60 (26 Full Load Amps)
- Extensible Support Width: 22" (560 mm)
- Feed Speed: 29 FPM (9 m/min)
- Machine Weight: 2024 lbs (910 kg)
- Min. Panel Length: 6.7" (170 mm)
- Min. Panel Width: 3.54" (90 mm)
- Panel Thickness: 0.315" ~1.77" (8~45 mm)
- Shipping Dimension: 156" x 29" x 69" (3960 x 730 x 1748 mm)
- Working Table Height: 38" (960 mm)
