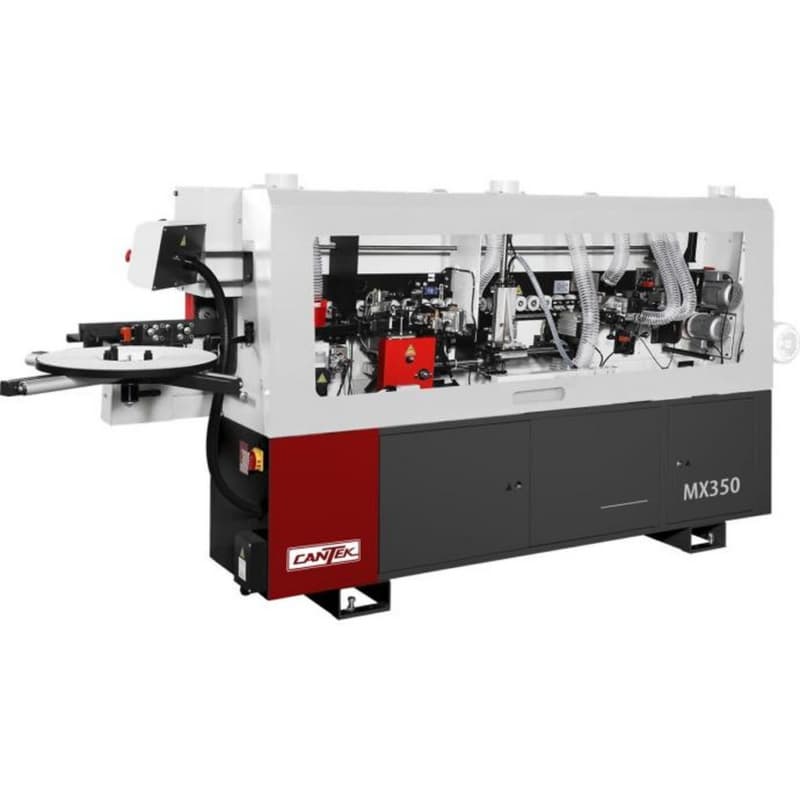

The Cantek MX3503 Automatic Edgebander is engineered for precision edge banding on cabinet parts and case goods, delivering flawless results with minimal glue lines. Compact yet powerful, it handles edge tape from 0.4 mm to 3 mm with quick-change capability for color shifts. Pre-milling cutters ensure square, smooth edges for a premium finish, while high-frequency motors drive quality trimming and buffing. Easy-to-use controls and a smart layout make it a go-to solution for small shops that demand professional results without sacrificing space.
Key Features & Benefits
Precise Edge Preparation Ensures a Flawless Finish
- Counter-rotating diamond pre-milling cutters produce clean and square panel edges for nearly invisible glue joints
- Heated infeed fence pre-warms panels for better glue penetration and adhesion
- Heavy-duty pressure beam with extendable support stabilizes panels for consistent cutting accuracy
Quick-Change System Increases Workflow Flexibility
- Teflon-coated quick-change glue pot swaps out in minutes to accommodate different glue colors
- Automatic edge feeding accepts edge material from 0.4-3 mm with optional hand-fed strips
- Edge coil support plate handles up to 31-1/2" diameter coils for long uninterrupted runs
High-Frequency Trimming and Polishing Deliver a Premium Look
- High-frequency motors on end trim and top/bottom trim ensure smooth, high-speed finishing
- Multi-function trimmers handle both flush and radius trimming with ease
- Buffing unit polishes the edge surface to a clean, professional appearance
Robust Design Enhances Durability and Stability
- Powerful conveyor chain feed keeps the workpiece stable during application and trimming for consistent quality
- Spring-loaded pressure unit with dual rollers guarantees firm, even contact on every panel
- Compact footprint and sturdy build make it a perfect fit for small to mid-size shops
User-Friendly Controls Support Quick Adjustments
- PLC control with LED display and keypad allows for intuitive operation and fast setup changes
- User-friendly adjustments simplify switching between edge tape thicknesses
- Efficient control panel layout reduces setup time and increases shop productivity
- Weight: 1,600.000 lbs
- Compressed Air Requirements: 7.06 CFM
- Edge Thickness: 0.0158"~0.118" (0.4 ~ 3 mm)
- Electrical Requirements: 230/3/60: 40 Amps
- Feed Motor: 1 HP
- Feed Speed: 29 FPM (9 meters/min.)
- Front/Rear Trimming Motor: 0.3 HP
- Glue Pot: 1-3/4 HP
- Glue Spindle Motor: 1/4 HP
- Lower Buffing Motor: 0.16 HP
- Lower Trimming Motor: 1/2 HP
- Machine Weight: 1452 lbs (660 kg)
- Max. Pre-Milling Thickness: 1.77" (45 mm)
- Min. Panel Length: 6.7" (170 mm)
- Min. Panel Width: 4" (100 mm)
- Panel Thickness: 0.315"~1.77" (8~45 mm)
- Pre-Heating: 1/2 HP
- Pre-Milling Motors (2 Pcs): 1-1/2 HP x 2
- Shipping Weight: 1558 lbs (708 kgs)
- Total Connected Power: 10 HP (7.5 kW)
- Upper Buffing Motor: 0.16 HP
- Upper Trimming Motor: 1/2 HP
- Working Table Height: 33.5" (850 mm)
