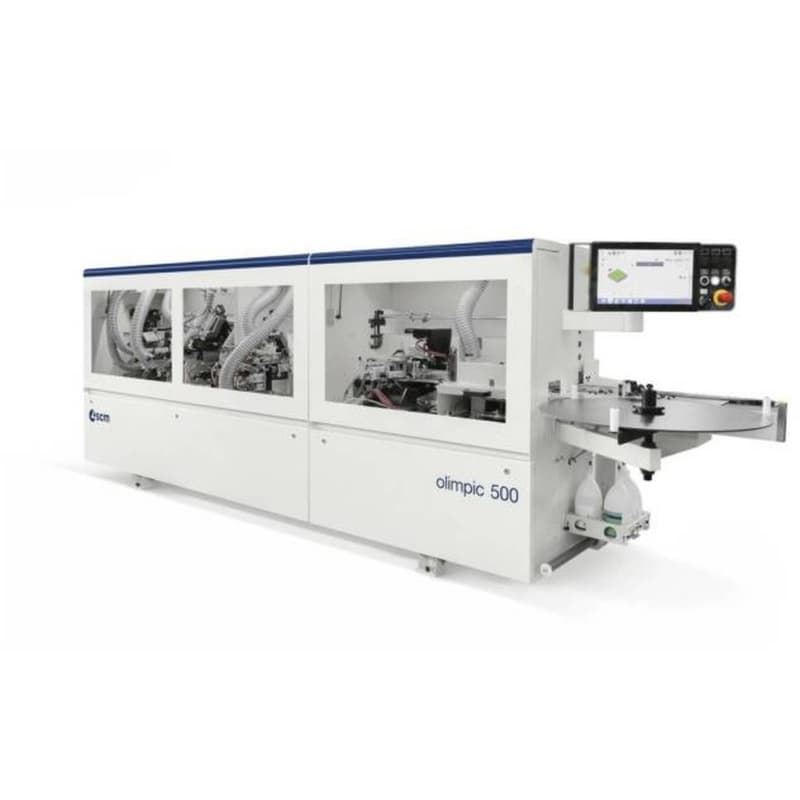

The SCM Olimpic 500P TE Edgebander is built for small to medium-sized workshops needing top-tier performance without using too much floor space. Renowned for reliability, it performs premilling, trimming, scraping, and buffing with consistent precision. With a working length of 4300 mm and speeds up to 18 m/min, it offers excellent efficiency and versatility. Available in pneumatic and electronic versions, it processes two radii with dedicated tools for optimal edge quality.
Key Features & Benefits
Quick Glue Changes with SGP-E for Seamless Workflow
• The SGP-E glue pot allows fast switching between EVA and polyurethane adhesives
• Delivers cleaner joints and consistent bonding across all panel types
• Minimizes downtime and supports a variety of edge materials
Dual Radius Machining for Superior Edge Quality
• Features the Multiedge device across all working units, including rounding
• Supports machining with two radii using dedicated tools for each
• Ensures a high-quality finish regardless of panel type or shape
User-Friendly Interface with Maestro Active Edge
• Large touchscreen panel enables clear, intuitive control over all operations
• Maestro Active Edge software allows seamless integration with company systems
• Simplifies setup and reduces the learning curve for operators
Efficient Edge Feeding Outside the Safety Cabin
• The external edge feeding system cuts down on setup time
• Improves safety by keeping the feeding mechanism outside the cabin
• Increases throughput without compromising operator security
Complete Edgebanding Functionality in One Machine
• Includes premilling, end trimming, top/bottom trimming, and buffing
• Also equipped with profile and glue scraping units for smooth, finished edges
• Compact design with a working length of 4300 mm, ideal for tight shop spaces
- Compressed Air Requirements: 6 Bar
- Edge Thickness: 0.3-6 mm
- Feed Speed: 12 m/min
- Min. Panel Width: 60 mm
- Panel Thickness: 8 - 60 mm
