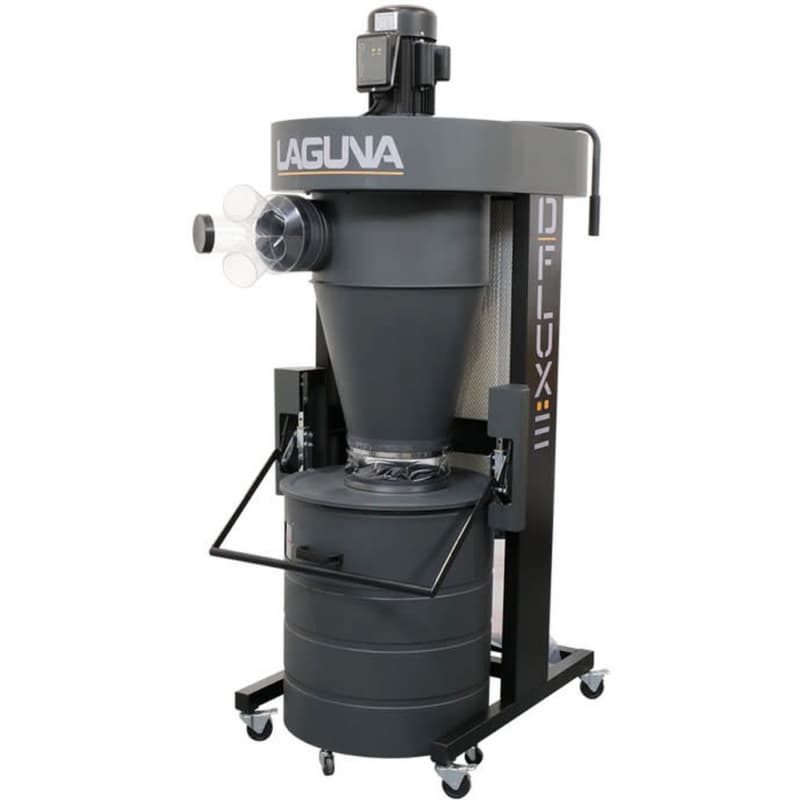

The Laguna D|Flux:3 is a powerful 2-stage cyclone dust collector designed for serious woodworking shops that demand high-volume dust extraction with superior fine-particle filtration. Powered by a 3 HP, 220V motor driving a 16" cast aluminum impeller, the D|Flux:3 delivers up to 1,941 CFM of airflow and 11" of maximum static pressure enough to support ducted systems and multiple machines. Its high-efficiency cyclone separator captures heavy chips and debris in a 45-gallon steel drum before air passes through a 1-micron canister filter, keeping your shop air clean and your filter lasting longer.
Key Features & Benefits
Powerful 2-Stage Cyclone Performance
- 3 HP, 220V TEFC motor provides strong, reliable suction for demanding shop environments.
- Maximum airflow of 1,941 CFM with up to 11" of static pressure handles ducted systems and long hose runs with ease.
- 16" cast aluminum impeller delivers efficient, high-velocity airflow.
- High-efficiency cyclone separator pre-separates heavy chips and debris before they reach the filter, extending filter life and reducing maintenance.
Superior Filtration
- 1-micron canister filter (14.5" × 39.38") captures fine dust particles for cleaner shop air.
- Manual paddle cleaning system allows quick filter maintenance without removing the canister.
- Fine dust is collected in a clear plastic bag beneath the canister for easy monitoring and disposal.
Large-Capacity Collection
- 45-gallon steel drum provides ample collection volume, reducing the frequency of emptying between jobs.
- Negative pressure drum bag retention keeps the collection bag securely in place during operation.
- See-through dust sleeve lets you monitor fill level at a glance without opening the drum.
User-Friendly Design
- Wireless RF remote control for convenient on/off operation from anywhere in the shop.
- Air-strut-assisted drum lid (NGX Strut Assembly) makes opening and closing the drum lid effortless.
- Magnetic hose connector on the drum bag provides quick, tool-free attachment and disconnection.
- Clear hose on the drum lid for visibility during operation.
Mobility & Connectivity
- 8 total casters — 4 locking/swiveling casters on the machine and 4 swiveling casters on the drum for easy repositioning around the shop.
- 8" inlet with included 3 × 4" splitter allows connection to multiple machines with standard dust collection hose.
- Voltage: 220 V
- Motor Power: 3 HP
- Filter Size: 14.5" x 39.38"
- Inlet Diameter: 8"
- Sound Rating: 79 dB
- Max Static Pressure: 11"
- Fan Size: 16"
- Collection Capacity: 45 Gallon Drum
