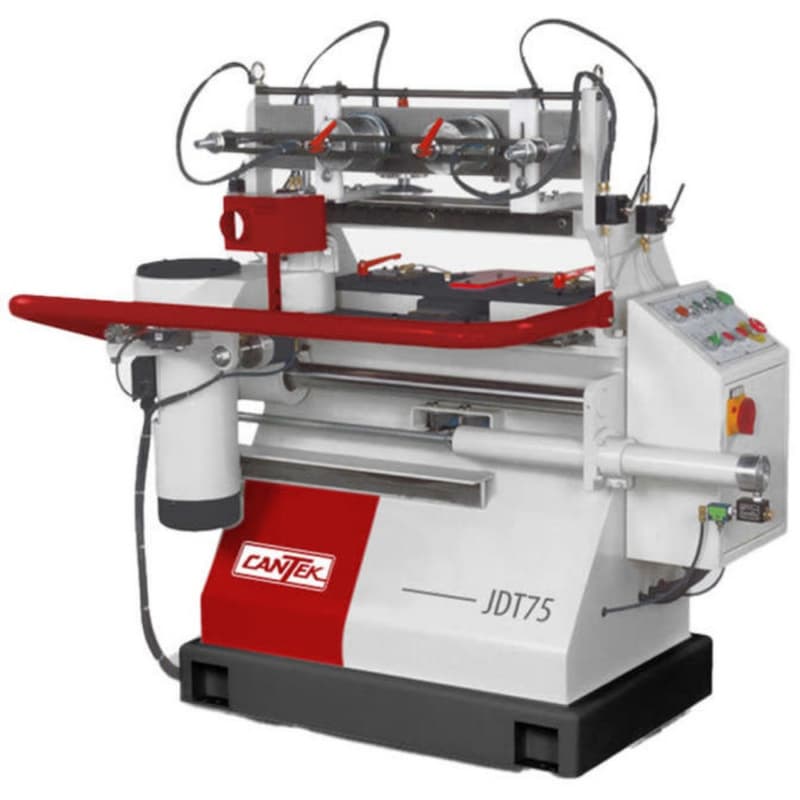

The Cantek JDT75 Automatic Dovetailer offers fully automatic, high-volume dovetail joinery for drawer box production. Engineered for both solid wood and plywood, the JDT75 delivers exceptional speed and consistencyproducing up to 40 drawer boxes per hour. Built with heavy-duty components and advanced features, this machine is the ultimate solution for professionals seeking quality, durability, and efficiency in one powerhouse tool.
Key Features & Benefits
High-Speed, Precision Output
- Cuts pins and tails simultaneously for flawless dovetail joints.
- Produces up to 40 drawer boxes per hourmaximizing productivity.
- Compatible with solid wood and plywood for versatile applications.
Built for Performance & Longevity
- Robust cast iron frame eliminates vibration and increases machine life.
- High-speed 21,500 RPM spindle ensures ultra-smooth, accurate cuts.
- Two-flute dovetail bit delivers clean, tight-fitting joints every time.
Customizable & Efficient Operation
- Independently adjustable tenon and mortise depth for precision fit.
- Pneumatic clamping system allows quick material changes.
- Three selectable cycle speeds adapt to different materials and quality needs.
Smart Features for Ease & Safety
- Automatic lubrication system maintains optimal machine performance.
- Integrated dust hood keeps the work area clean and safe.
- Front safety rail enhances operator protection.
- Weight: 1,210.000 lbs
- Spindle Speed: 21,500 RPM
- Spindle Motor: 2 HP
- Spindle Diameter Shank: 12 mm
- Min/Max Working Length: 7.87"/59"
- Min/Max Working Width: 2.36"/16.93"
- Feed motor: 2 HP
- Vertical Material Thickness: 0.275"/2.36"
- Horizontal Material Thickness: 0.394"/1.18"
- Fixed Pitch: 25mm
- Shipping Weight: 1,210 lbs.
- Shipping Dimensions: 55.12" x 34.65" x 55.12"
- Electrics: 230V / 3Ph / 60Hz = 13.6 FLA
- Feed Speeds: 16, 22, 31 cycles/min
