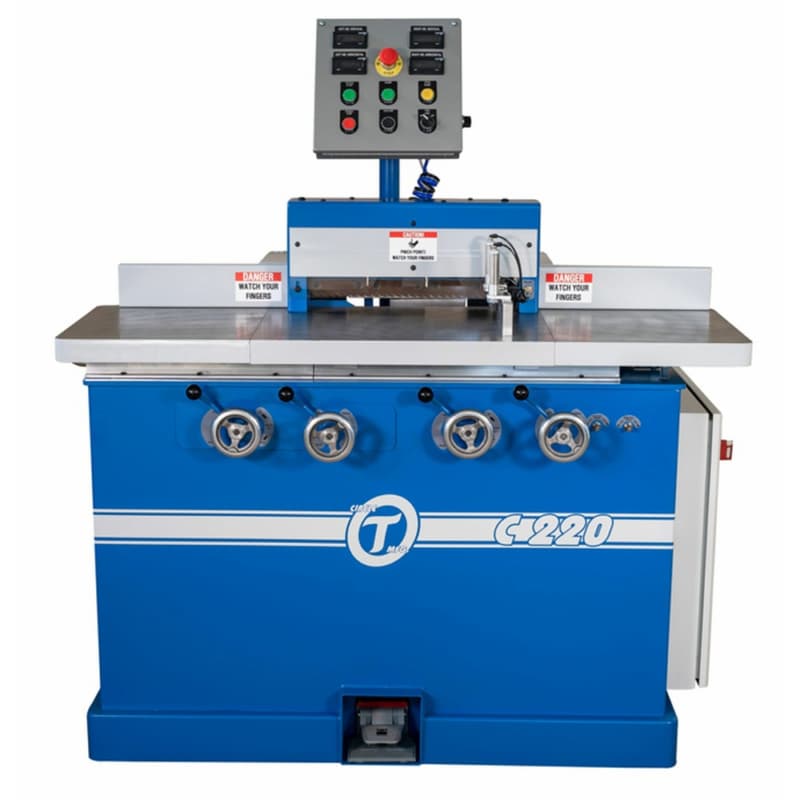

The Circle T C220 Easy Coping Machine is a high-performance solution designed for quick, accurate, and repeatable coping operations in professional shops. With a 16" wide cutting capacity and support for 5/8" to 1" thick materials, it handles a wide range of profiles effortlessly. Equipped with quick-change spindles, pneumatic hold-down clamps, and foot pedal activation, it maximizes speed and operator comfort. The dual 5HP motors and flat belt drive ensure reliable cutting power and smooth performance in demanding production environments.
Key Features & Benefits
Quick-Change Spindles and Foot Pedal Activation for Maximum Efficiency
• Easy quick-change spindles included allow rapid cutter swaps to reduce setup time
• Easy foot oedal cycle Start lets the operator control the cycle hands-free for improved safety
• Boosts overall shop throughput and minimizes downtime during profile changes
Pneumatic Hold-Down System for Accurate and Stable Cuts
• EASY pneumatic hold down clamp system keeps the material firmly in place during cutting
• Eliminates movement and ensures consistently clean copes even on complex profiles
• Reduces operator effort while improving repeatability and cut quality
Wide Cutting Range to Handle Various Job Requirements
• Supports up to 16" wide cutting capacity for large panels or intricate parts
• Handles material thickness from 5/8" to 1", ideal for most door and frame components
• Compatible with both 3" and 4" (ID) cutters for added flexibility
Reliable Motor Power and Drive System for Consistent Results
• Dual 5 HP main motors provide robust performance for high-volume jobs
• Flat belt drive ensures smoother transmission and reduced vibration
• Supports both 220 V and 460 V 3-phase power, adaptable to most shop environments
Digital Spindle Adjustments for Precision Setup
• Features Y and Z axis spindle adjustments with DRO for fine-tuned accuracy
• Digital readouts reduce error and speed up setup for repeat operations
• Ideal for precise coping when working with varying part dimensions
Integrated Dust and Air Requirements for Clean
• Dual 4" dust ports with 670 CFM requirement each help keep the workspace clean
• Requires just 0.3 CFM @ 100 PSI to power the clamp and table
• Keeps both the air and work surface clear for optimal operator visibility and machine longevity
- Weight: 1,100 lbs
- Dust Collection Requirements: 670 CFM
- Dust Port: 4"
- Motor: 5 HP
- Pneumatic Requirements: 0.3 CFM
- Shipping Weight: 1900lbs
- Spindle Size: 1-1/4"
- Table Height: 36"
- Table Size: 53" x 16"
