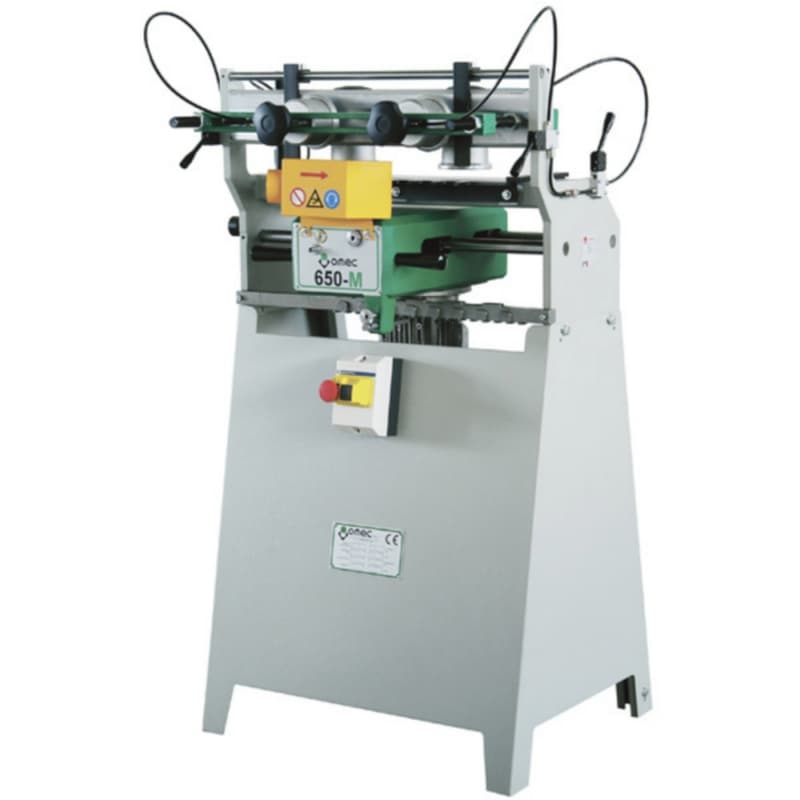

The Omec 650-M Hand-Operated Dovetail Milling Machine is designed for precise and efficient dovetail cutting in drawer boxes and furniture components. Equipped with a high-speed 16,500 RPM milling spindle, it allows for adjustable-height cutting to accommodate various woodworking needs. The machine offers four different indent styles and features manual pneumatic clamping for secure and stable operation. Its user-friendly controls, including side-mounted hand wheels and a magnetothermic switch, make it an ideal choice for professional and custom woodworking applications.
Key Features & Benefits
Versatile Dovetail Cutting for Custom Joinery
• Capable of cutting four different dovetail styles to suit various design needs.
• Adjustable cutting height for precise control over indent depth.
• Ideal for crafting strong and professional drawer joints in furniture production.
High-Speed Precision with Efficient Milling
• 16,500 RPM spindle speed ensures clean and accurate cuts.
• Stable and consistent milling performance for reliable results.
• Smooth and controlled operation, reducing material waste.
User-Friendly Operation for Maximum Productivity
• Manual pneumatic clamping system ensures secure material positioning.
• Easy-to-use lever hand wheels for quick adjustments.
• Magnetothermic switch provides safe and efficient motor control.
- Weight: 125 kg
- Center to Center of Indents: 25-40-50-80 mm
- Min/Max Working Length: 7.87"/59.06"
- Min/Max Working Width: 2.36"/16.54"
- Over-All Dimensions: 80 x 72 x 132 cm
- Packed Machine Weight 161 kg: 161 kg
- Packing Dimensions: 88 x 140 x 74 cm
- Spindle Motor: 1 HP
- Spindle Speed: 16,500 RPM
- Working Pressure: 0,7 MPascal
