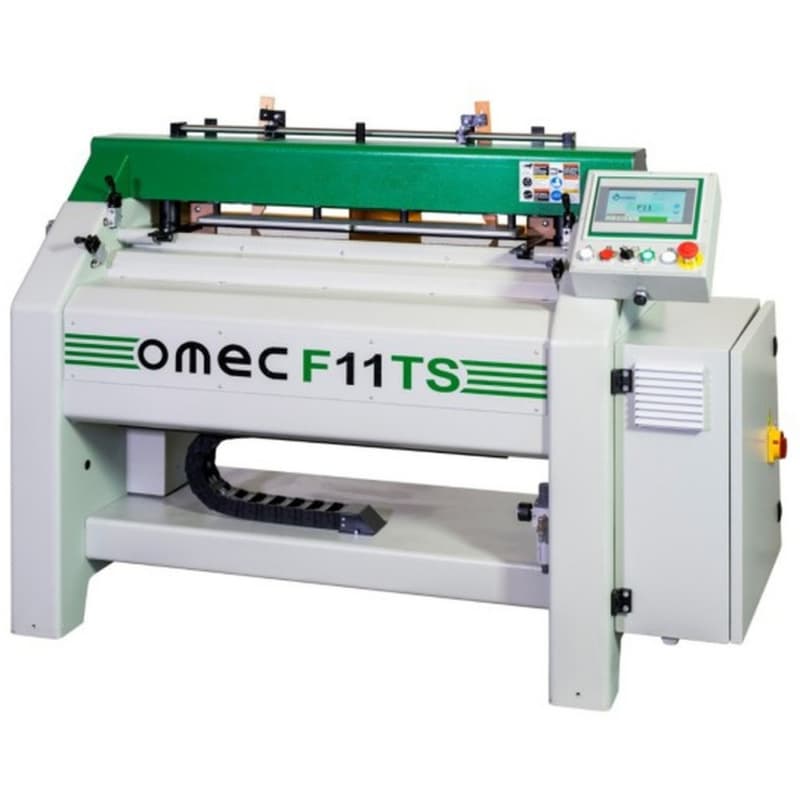

The Omec F11TS is an advanced CNC-controlled dovetailer engineered for precision joinery in drawer and furniture production. With the ability to cut ten different types of dovetails, it provides unmatched flexibility for various woodworking applications. Equipped with a high-speed spindle and a user-friendly control panel, this machine ensures fast and accurate machining of both single and paired workpieces. Its pneumatic clamping system streamlines the process, making production smoother and more efficient.
Key Features & Benefits
Versatile Cutting for Different Joinery Needs
• Cuts ten types of dovetail joints, including French and parallel indents.
• Adjustable cutting height accommodates a variety of workpieces.
• Supports single or simultaneous cutting of male and female joints.
Precision and Efficiency with CNC Control
• Numerically controlled system enables highly accurate machining.
• User-friendly push-button panel allows quick setup and operation.
• Easily adjustable machining limits ensure maximum flexibility.
Optimized for Production Workflow
• Pneumatic clamping and release ensure secure workpiece positioning.
• High-speed 6 HP motor enhances cutting performance.
• Designed for reliable and consistent results, reducing manual adjustments.
- Weight: 530 kg
- Centre to Centre Joints: variable a fisso mm
- Drawers Production: 120 n/h
- Mill cutter: 1 N°
- Mill Cutter Revolutions: 18.000 n/1'
- Min/Max Working Length: 85x170x120 cm
- Min/Max Working Width: 2.36"/30.31"
- Packaging Dimensions: 96x190x143 cm
- Packed Machine Weight: 687 kg
- Spindle Motor: 6 HP
- Spindle Speed: 18,000/24,000 RPM
- Working Pressure: 0,7 MPascal
