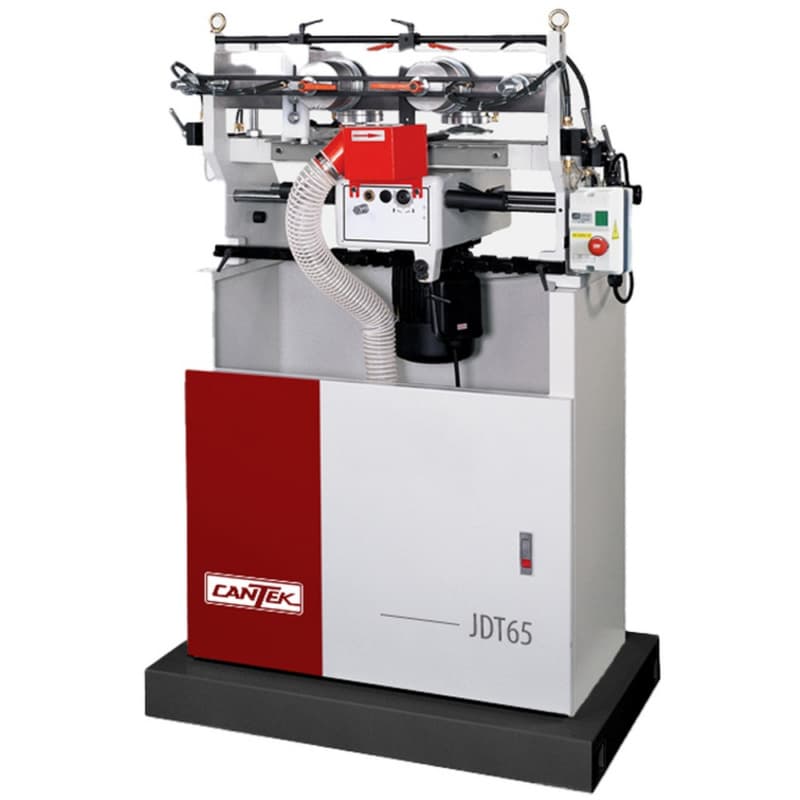

The Cantek JDT-65 Manual Dovetail Machine is engineered to deliver flawless dovetail joints ideal for premium cabinetry and fine furniture. Designed for both solid wood and plywood applications, this machine simultaneously cuts pins and tails to ensure precise alignment and a superior finish. With its intuitive operation, pneumatic clamping, and multiple pitch options, the JDT-65 enhances efficiency while maintaining consistency. Built for professionals who demand durability, aesthetics, and reliability in every joint.
Key Features & Benefits
One-Pass Precision
- Simultaneously cuts both pin and tail for fast, accurate dovetail joints.
- Completes all four sides of a drawer in a single setup, streamlining workflow.
- Accommodates various wood types, including plywood and solid wood.
User-Friendly & Versatile
- Easy-to-use template system enables quick, accurate cuts with minimal training.
- Includes a four-sided template with pitch options: 1", 1-1/2", 2", and 2-1/2".
- Adjustable tenon and mortise depth tailored to your workpiece thickness.
Consistent, Clean Cuts
- Floating dovetailing unit glides on chrome steel guiderails with ball bearings.
- Solid carbide, single-flute eccentric bit ensures tight-fitting joints.
- High-speed 18,500 RPM spindle delivers smooth, sharp results.
Durable & Safe Design
- Pneumatic clamping secures materials quickly, reducing downtime.
- Enclosed base enhances stability and operator safety.
- Magnetic switch with thermal overload protection safeguards motor performance.
Precision Setup & Repeatability
- Indicator bar provides accurate visual reference for cutting positions.
- Compatible with 12 mm TCT eccentric cutter for consistent joint quality.
- Ideal for drawers and furniture parts requiring a lasting, high-quality joint.
- Weight: 525.000 lbs
- Spindle Speed: 18,500 RPM
- Min. Workpiece Size: 7.9" x 2.4" (200 x 60mm)
- Max. Workpiece Size: 59" x 16.5" (1500 x 420mm)
- Min. Dovetail Height: 3/16" (5mm)
- Max. Dovetail Height: 0.71" (18mm)
- Table Height from Floor: 46.5" (1180mm)
- Min. Front Thickness: 0.28" (7mm)
- Motor: 1 HP
- Max. Front Thickness: 2.36" (60mm)
- Min. Side Thickness: 0.28" (7mm)
- Max. Side Thickness: 2.36" (60mm)
- No. of Spindles: 1
- Dust Collection Ports: Front: 2.5" (63.5mm), Rear: 4" (100mm)
- Shipping Dimensions: 42 ½" x 30" x 65 ½" (1070 x 750 x 1660mm)
- Center Spacing of Dovetails: 1", 1.5", 2", 2.5"
- Electrics: 230V / 1Ph / 60Hz = 8.0 FLA
- Air Pressure Requirement: 6 bar
- Net / Gross Weight: 440 lbs / 510 lbs (200 kg / 223 kg)
