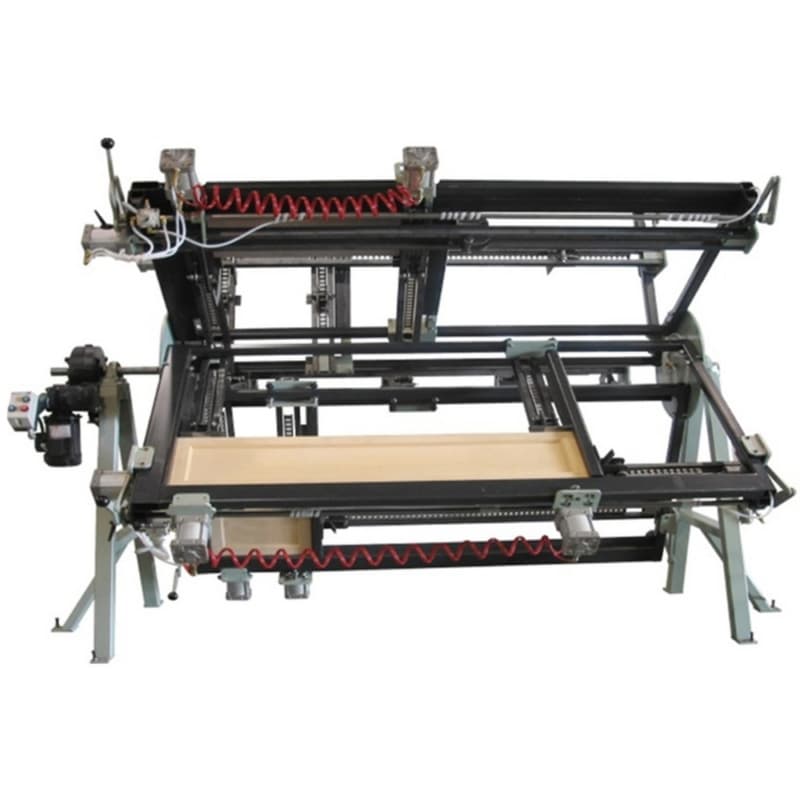

The Doucet RDM Door Clamp is a five-section rotary fixture engineered for rapid, accurate assembly of cope-and-stick cabinet doors from 5-1/2†× 12-1/2″ up to 30″ × 72″ (or larger with options). Its welded-steel frame and brand-name pneumatic valves deliver consistent clamping force, while automatic section indexing lets you rotate between clamping stations in seconds. Designed for both large pantry doors and small drawer fronts, the RDM ensures square, gap-free joints every cycleboosting throughput and reducing rework.
Key Features & Benefits
Five-Section Rotary Indexing for Maximum Throughput
• Automatic indexing lets you rotate to the next section in under two seconds, minimizing downtime between clamps
• Five independent clamps secure multiple doors or panels simultaneously, multiplying your assembly capacity
• Precision gear-motor drive maintains exact 90-deg spacing, ensuring every joint is square without manual realignment
Heavy-Duty Pneumatics for Consistent Clamping
• Double-acting air cylinders apply uniform pressure on each clamp, eliminating variability and joint gaps
• Brand-name pneumatic valves deliver responsive actuation and long service life under continuous use
• Optional dual-pressure system lets you switch between low and high clamping force for delicate frames versus hardwoods
Modular Sections & Expanded Capacity Options
• Standard five-section frame handles doors up to 30" × 72" and drawer fronts down to 5-1/2" × 12-1/2"
• Upgradeable to eight sections or combined-section layouts for oversized assemblies up to 48" × 96"
• Add-on vertical clamps accommodate stile-and-rail profiles or T-inserts for specialty door styles
- Capacity: 30" x 72"
- No. Of Clamps: 3/Section
