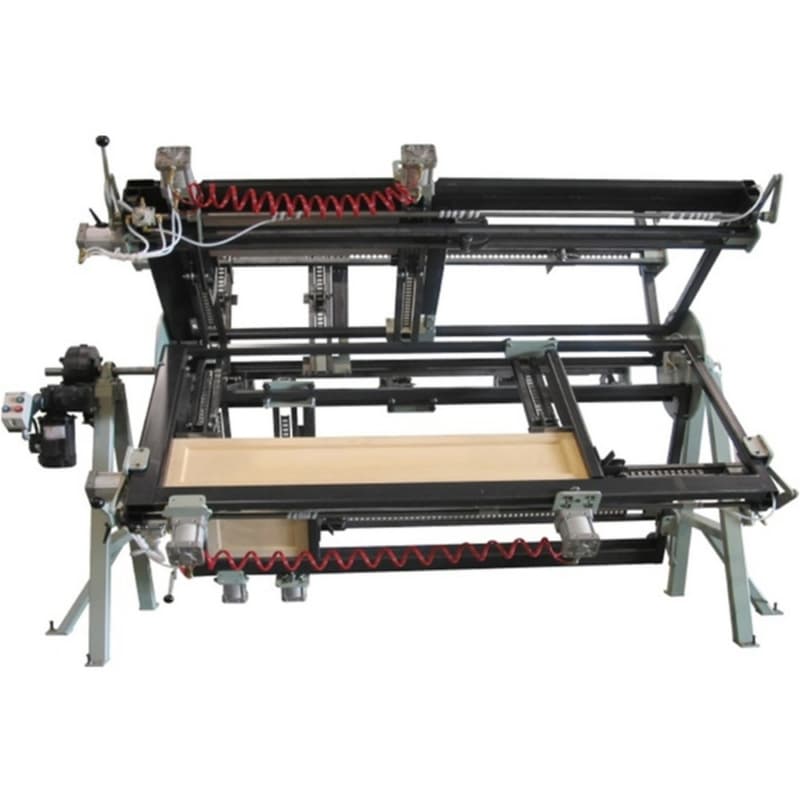

The Doucet RDM-MITER Rotary Miter Door Clamp delivers fast, square joints on both 45-deg miter and 90-deg cope-and-stick cabinet doors. Its five-section designwith four clamps per sectionsecures door frames from 5-1/2" × 12-1/2" up to 30" × 72" in a single cycle. Automatic indexing rotates each clamp station into position in seconds, while the heavy-duty tubular frame and “no-compromise†pneumatics ensure consistent pressure and perfect squareness. Optional slim-door inserts and dual-pressure pneumatics adapt the system for narrow stile profiles and delicate veneers.
Key Features & Benefits
Rapid Rotary Indexing for Continuous Workflow
• Automatic section indexing rotates to the next clamp station in under two seconds, eliminating manual repositioning and boosting throughput
• Five independent sections allow simultaneous clamping of multiple doors or frames, cutting cycle time by up to 80%
• Precision gear-motor drive holds each station at exactly 45 degree or 90 degree, ensuring square joints without secondary adjustments
High-Force Pneumatics for Perfect Joints
• Double-acting air cylinders provide uniform clamping across all four clamps per section, preventing gap formation at corners
• Brand-name pneumatic valves deliver consistent pressure and rapid response, ensuring repeatable results shift after shift
• Optional two-stage clamping lets you select a gentle initial grip for delicate moldings, then ramp up force for final squaring
- Capacity: 30" x 72"
- No. Of Clamps: 4/Section
