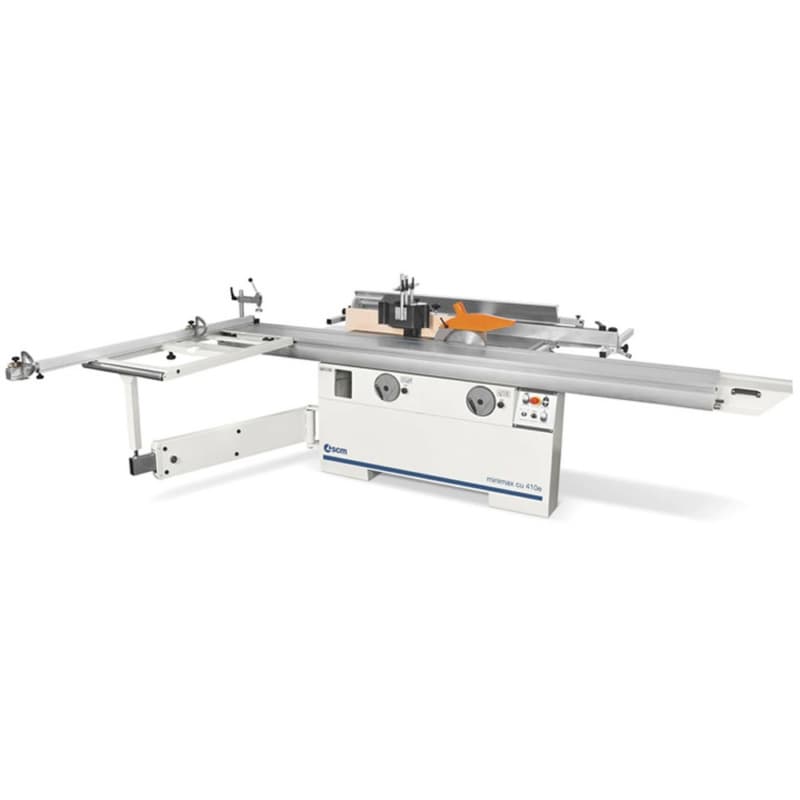

The SCM CU 410E-T 8.5 Combination Machine offers exceptional performance for woodworking workshops. It combines Minimax's renowned quality with an affordable price, making it the perfect solution for artisan workshops looking for versatility and precision. With easy-to-use features, advanced safety measures, and customizable flexibility, this machine ensures you can perform a wide range of tasks efficiently and accurately. Ideal for various woodworking applications, it delivers top-tier results without compromising on performance.
Key Features & Benefits
Ease of Use for Seamless Operations
• Ergonomic worktable design opens towards the inside of the machine for better accessibility and comfort
• Anodized-extruded guides with support and rapid locking ensure smooth and precise movement
• Effective feeding system on the planer enhances ease of use, making it suitable for all machining types
Maximum Flexibility in Machining
• Spindle moulder unit with variable speeds offers flexibility in cutter operations
• Micrometric spindle moulder hood allows for precise molding work
• Optional tenoning operations are made easy with the aluminum carriage and dedicated speed
Unmatched Accuracy for Precision Work
• Tiltable saw unit with anodized aluminum carriage provides superior cutting precision
• Hand wheels for lifting and tilting ensure easy adjustment between machining tasks
• High-quality standard features guarantee precise and accurate results across all operations
Enhanced Safety for Operator Protection
• CE safety devices, including shaft protection, ensure safe shaping and operation on curved profiles
• Large dimensioned surfacing tables make planer operations easier and safer
• Safety systems are designed to protect operators during all machining processes
Tersa Cutterhead for Superior Finish
• Tersa cutterhead provides smooth and precise cuts, reducing maintenance time
• Quick tool change system ensures enhanced efficiency and precision
• Cost-effective solution without compromising on cutting quality or durability
- Cutterhead Working Width: 16" (410 mm)
- Jointer Bed Length: 78" (2000 mm)
- Max. Sawblade Diameter: 12" (315 mm)
- Sawblade Arbor Size: 5/8" (16 mm)
- Max. Sawblade Projection: 3.75/2.75" (100/71 mm)
- Rip Capacity: 36" (915 mm)
- Max. Useful Spindle Length: 4" (125 mm)
- Spindle Moulder Speed: 1700/4000/7000/9000 RPM
- Max. Tool Diameter When Profiling: 8.25" (2600 mm)
- 1 Ph Motor: 4.8 HP
- Cutterhead: TERSA
- No-Deg Of Standard Knives: 87 mm/3 n-deg
- Dimension Of Standard Knives: 410 mm x 30 mm x 3 mm
