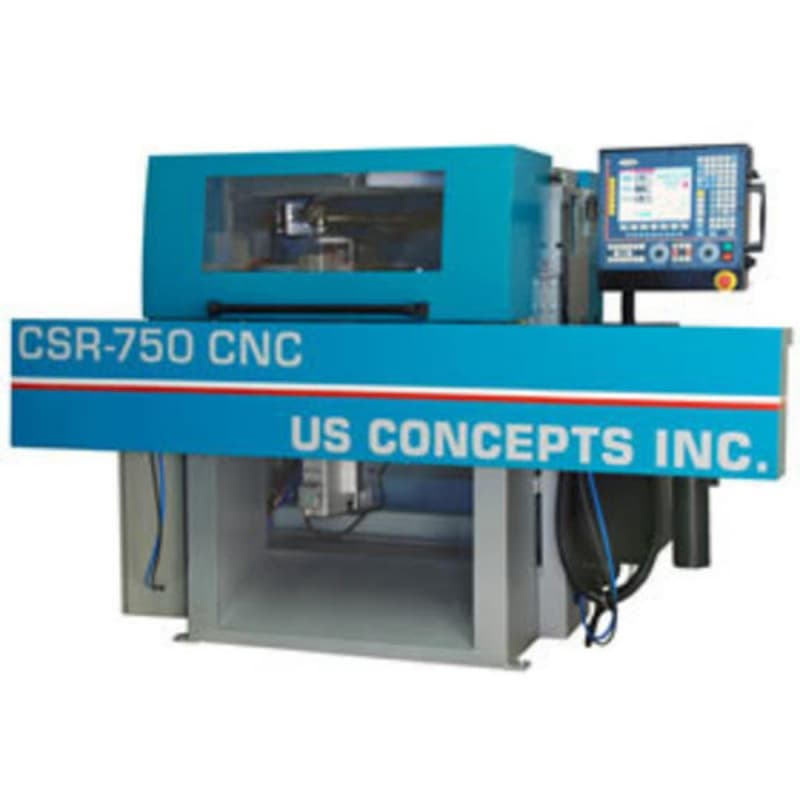

The CSR-750CNC Automatic CNC Stair Router transforms stair production by combining preloaded stair programs with full CNC programming capability. Operators of any skill level can simply select a stair style, enter rise, run, and quantity, then push Startno manual layout required. Rugged cast-iron construction and FAGOR 8055i/A control ensure precision, reliability, and minimal downtime.
Key Features & Benefits
Preprogrammed Stair Styles for Instant Productivity
• Choose from six built-in stair profiles with 45-deg reliefwithout writing a single CNC line of code
• Automated board advance and cycle start eliminate manual jigging and measurement mistakes
• Seamlessly switch between closed-stringer and open-stringer jobs
Dual High-Speed Motors for Balanced Precision
• Two 5 HP motors (12,000–18,000 rpm) rout left and right stringers concurrently, halving cycle time
• Identical feed rates and spindle speeds ensure mirror-image stringers with no hand-finishing
• Independent speed controllers let you fine-tune feed for different wood species or bit types
Full CNC Flexibility for Custom Profiles
• Import or write custom stair routines as needed
• Industry-leading 3-axis package with RS232, USB, and network ports for seamless transfer
• Networked capability lets supervisors upload new programs and monitor jobs
- Weight: 4,500.000 lbs
- Max. Material Width: 12"
- Material Thickness: 3/4"- 3-1/2"
- Tool Shank Capacity: 3/4"
- Max. Feed Speed: 300 FPM
- Communication Ports: RS232, USB, network
- Machine Dimensions: 94"L x 60"D x 64"H
- Weight Approx.: 4200 lbs
- Dust Outlet: 8"
