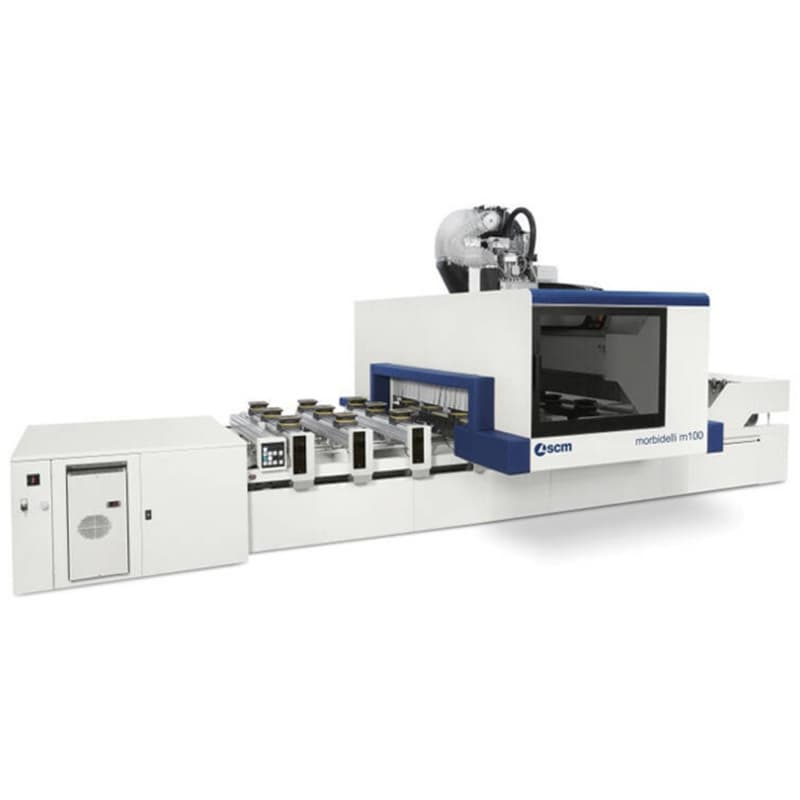

The SCM M100F is a state-of-the-art CNC machining center designed for high-performance routing, drilling, and panel processing in woodworking and similar industries. Engineered for precision and automation, this flat table cell version machine is ideal for manufacturers seeking increased efficiency, accuracy, and flexibility in their production processes.
Key Features & Benefits:
Robust & High-Precision Machine Structure:
• Built on a cage-like electro-welded frame, ensuring superior rigidity, long-term stability, and precision.
• Wide base design for durability, reducing vibrations and enhancing machining accuracy.
• Linear recirculating ball bearings on prismatic guides for smooth and precise movement.
• Rack and pinion system with helical teeth on X and Y axes for better thrust, acceleration, and speed.
• Recirculating ball screw drive on the Z-axis for high-speed movement and accuracy.
• Brushless motor technology controlled via static inverters for reduced cycle times and maintenance.
Advanced Machining Capabilities:
High-Power Electrospindle:
• 10kW (13.6 HP) HSK-63F attachment.
• Speeds from 1,800 to 24,000 rpm.
• Forced air cooling and ceramic bearings for durability.
RO.AX F23L Drilling Unit:
• 13 vertical spindles, 5 horizontal spindles, and an integrated saw blade along the X-axis.
• High-speed performance up to 8,000 rpm (optional inverter increases speed to 10,000 rpm).
• High-pressure pneumatic circuit for drilling efficiency.
R16 Automatic Tool Changer:
• 16-position rotary tool changer for quick and seamless tool switching.
• Maximum tool diameter: 300mm, weight capacity: 8kg per tool.
High-Efficiency Worktable & Vacuum System:
• Phenolic high-efficiency multifunction worktable with vacuum zones for secure workpiece holding.
• 8-zone vacuum worktable, automatically adjusts to workpiece dimensions.
• Dynamic vacuum system that focuses suction only where machining is active, improving hold-down force for small or porous materials.
• Tool length detection device for automated tool calibration.
• Side and rear safety fences for added protection during machining operations.
Smart Automation & Integration:
• Automated loading/unloading systems for seamless production workflow:
• Loading table with lifting system (1600mm rails, 2000kg capacity).
• Panel loading pods with vacuum-assisted picking.
• ON-OFF workpiece outfeed pusher with integrated dust extraction.
• Motorized outfeed conveyor belt with automatic start-stop function.
Maestro Connect IoT Integration:
• Real-time machine monitoring and analytics.
• Remote diagnostics and proactive maintenance support.
Maestro Lab Programming Software:
• 3D graphical CAD/CAM suite for easy programming and optimization.
• Supports DXF file imports and parametric programming.
Maestro Active HMI Software:
• Intuitive 24" touchscreen control panel with user-friendly interface.
• Machine diagnostics, production reports, and maintenance tracking.
Advanced Safety & Ergonomics:
• PRO-SPACE safety system with RFID detection for high-speed safe operation.
• Bumpers and retractable safety strip curtains for operator protection.
• Centralized dust extraction system with automatic ON-OFF valves.
• RFID-enabled safety sensors prevent errors and ensure compliance with safety standards.
Energy-Efficient & Customizable Power Options:
• Electrical compatibility with 208/230/460V – 60Hz power supply.
• Automatic centralized lubrication system for reduced maintenance.
• Air conditioning for electrical cabinet, ensuring performance in high-temperature environments.
- Series: Morbidelli M100F
- Table Size: 5' x 12'
- Panel Length: 66.9"
- Machine Type: Cantilever
- X-Y Transmission: Rack
- Suction Air Speed: 25 m/s
- Compressed Air Pressure: 6.5 Bar
- Average Compressed Air Consumption: 300 NL/min
- Driling Head Type: RO.AX F23L
- No. Of Spindles: 13
- Axes Electrospindle Power: 24,000 RPM
- Axes Electrospindle Cooling: Liquid Cooled
- Pre-Arrangement For Angular Driven Heads: HIT_P
- Max. Installed Current: 35.80 KVA
- Working Area Along X Axis: 146.2"
- Working Area Along Y Axis: 63.7"
- Panel Clearance Y: 63"
- Panel Clearance Z: 7"
- Working Table Type: With Bars
- Centralized Optimized Air Conveyor Diameter: 9.84"
- Air Conveyor Diameter at Belt Outlet: 4.72"
- Suction Consumption During Machining: 3,207 CFM
