Description

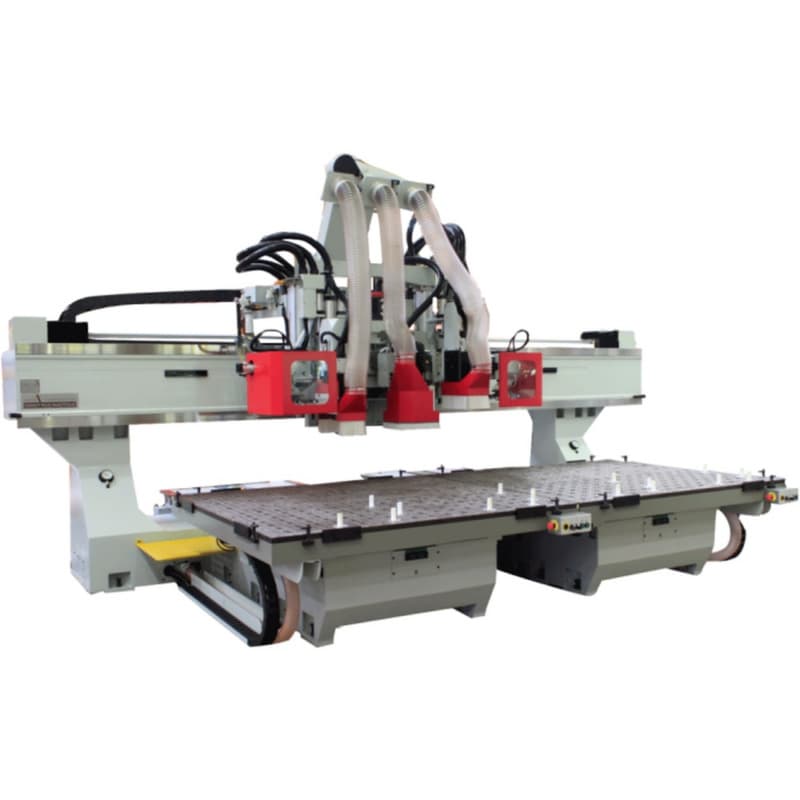

The EXXACT PLUS DUO Twin Table CNC Router is built for manufacturers who need precision, speed, and flexibility in one robust machine. Made with a fixed bridge and twin moving tables, it maximizes throughput and minimizes downtime during part loading. From wood and MDF to plastics and aluminum, this machine handles diverse materials with ease, all powered by FANUC AC digital servo systems and heavy-duty Meehanite castings. An integrated boring unit, high-speed spindle, and tool changer make it a versatile solution for high-demand production environments.
Key Features & Benefits
Built to Handle a Wide Range of Materials with High Accuracy
• Processes wood, MDF, plastics, aluminum, and composite materials with consistent performance
• High-speed spindle reaches full torque at 9,000 RPM and full HP at 12,000 RPM
• Ideal for cabinetmaking, aerospace, signage, and plastic fabrication
Twin Table Design Doubles Productivity
• Fixed bridge with twin moving tables allows simultaneous loading and machining
• Minimizes downtime between jobs for continuous output
• Independent vacuum zones and popup pins streamline workpiece positioning
Servo Precision for Repeatable Results
• FANUC AC digital servo motors on all axes ensure closed-loop control and exact positioning
• Pneumatically counterbalanced Z-axis for smooth, accurate vertical motion
• Tool length probe ensures precise tool calibration and repeatability
Superior Construction for Durability & Vibration Control
• Meehanite cast spindle carriage and welded steel frame absorb vibration
• Boxway and roller linear guide systems deliver high stiffness and long service life
• Automatic oil and grease lubrication ensures long-term machine health
Versatile Tooling & Boring Capabilities
• 18 HP air-cooled spindle paired with a 10-position automatic tool changer
• Integrated 2 HP boring unit with 9 selectable vertical spindles for flexible drilling
• Tool changer carousel mounted next to spindle for rapid, efficient tool swaps
Flexible Clamping and Vacuum Holding Options
• Grid table tops support pods, spoilboards, clamps, or fixtures
• Pneumatically controlled pop-up pins and stops ensure precise material placement
• M-code controlled vacuum zones allow flexible part holding and quick changeovers
Smart Operator Controls for Safe, Efficient Operation
• Handheld pendant with rapid rate and feed override keeps control in your hands
• Dust hood with automatic damper system improves air quality and chip extraction
• Ethernet connectivity allows for remote diagnostics and technical support
