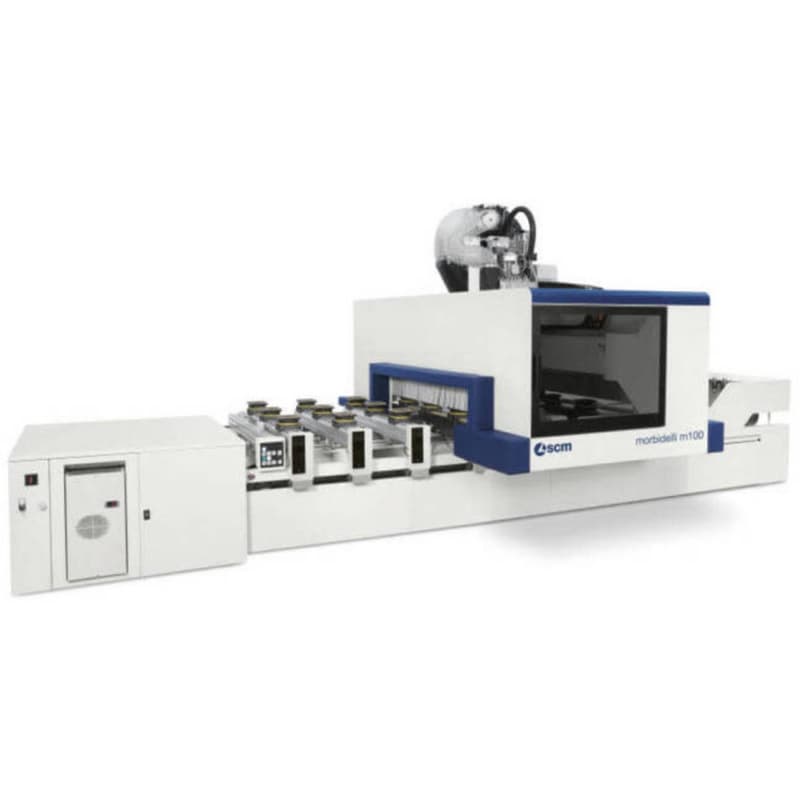

This highly modular machining center provides answers to all the problems associated with woodworking.
Just a few clicks to design and manufacture pieces of any shape, the machine is run by the Suite Maestro which has specific modules for every production cycle.
Unique on the market in having an unrivalled price-performance ratio, it can be configured according to the customer’s needs and investment plan.
FREEDOM AT 360°:
PRO-SPEED SAFETY SYSTEM
It allows to increase the axis speed along X over 25 m/min, by means of safety fences and photocells on the front access area. The light barrier interruption causes the speed along X axis lowering to 25 m/min. A dedicated pushbutton restores the high speed. The machine is equipped with side and rear safety fences and a photocell to protect the front access area: once programs are running and light beam on photocell is not interrupted, X axis can run faster (see technical data) and production rate is increased.
Once the operator enters the operative area while running programs (i.e. loading/unloading parts), the interruption of light beam on photocell will cause an automatic reduction of the maximum speed along X axis to 25 m/min, granting the operator to work in safe conditions.
To restore high-speed regime, the re-activation of the light barrier is required, through an ergonomic manual command.
SUPERIOR QUALITY:
ALL TOP QUALITY
Unmatched finishing thanks to the JQX (Just Quality eXtreme)
5-axis direct-driven spindle head which ensures the total absence of vibrations even with huge material removal at high speed and with the high-performance drilling heads with RO.AX (Rotoaxial spindle technology) spindles and rotation speed up to 8000 rpm.
FASTER THAN ANYONE ELSE:
ALL FASTER
60% time saving in drilling cycles thanks to the rapid machining/cycle time and devices that reduce the idle times. No downtimes for set-up operations with the TV FLEXMATIC work table and less than 15" for the tool change with the FAST14 tool changer.
ENDLESS MACHINING TYPES:
ALL FLEXIBLE
The machine can cope with every type of wood elements: panels, single elements, kitchen doors, windows, the configured solution for all your needs and your investment plan.
The unit can accommodate up to four machining units, including a device for inserting dowels using pearl glue.

• Table Size: 5' x 12'
• Series: Morbidelli M100
• Vertical Speed X-Y Axes: 56 m/min
• Z Axis Panel Passage: 180 mm
• Routing Unit Max. Rotation Speed: 24000 RPM
• Routing Unit Available Tools on Tool Changer: 44
• Drilling Unit Max. Rotation Speed: 8000 RPM
• Auxillary Routing Unit Max. Rotation Speed: 18000 RPM
