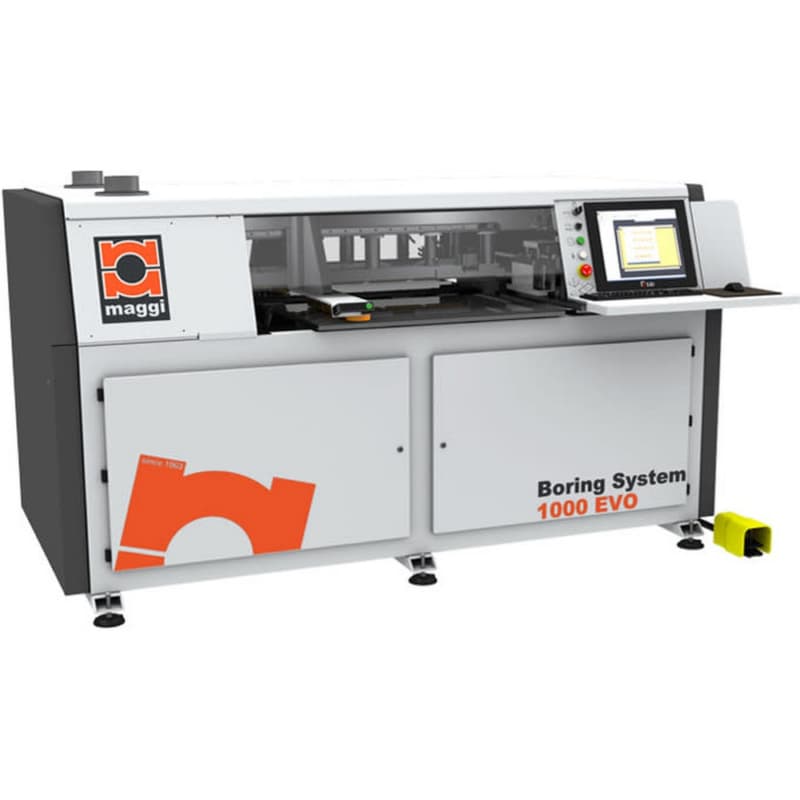

The Maggi Boring System 1000 EVO is a highly versatile CNC boring machine, specifically designed for small to medium-sized furniture manufacturers. This machine excels in high-accuracy drilling, routing, and grooving, all while offering an intuitive software interface. With its compact footprint and energy-efficient design, the 1000 EVO is perfect for manufacturers looking to boost productivity without occupying excessive space.
Key Features & Benefits
Precision Engineering for Accurate Results
• Equipped with 7 vertical spindles and double horizontal spindles for diverse drilling operations
• High-precision manual side aligner ensures accurate panel positioning
• Laser sensor detects panel edges for perfect joint alignment
User-Friendly Software Interface
• Osai open light CNC system enables easy programming and remote connectivity
• Pegasus panel software simplifies project setup with its light version
• Icon-based system with step-by-step data entry streamlines the learning process
Versatile Machining Capabilities
• Performs grooving, milling, and squaring in addition to drilling
• Handles panels ranging from 300 mm x 75 mm x 8 mm to infinite length x 1000 mm x 60 mm
• Offers both through-feed or return-to-operator processes for flexible workflows
Compact and Efficient Design
• Small footprint of just 3 sqm, conserving valuable workshop space
• Air-flotation working tables make panel handling easier
• Automatic lubrication of axes minimizes maintenance requirements
Enhanced Productivity and Maintenance
• Zero set-up time speeds up production cycles
• Powerful dust-collection system keeps the workspace clean
• Teleservice software provides remote diagnostics and support
- Weight: 3,475 lbs
- Vertical Speed X-Y Axes: 25 m/min
- Max. Workpiece Dimension: ∞ x 1000 x 60 mm
- Min. Workpiece Dimensions: 300 x 75 x 8 mm
- Max. Panel Weight: 70 Kg
- Blade Speed: 4000 RPM
- Blade Diameter: 120 mm
- Motor: 2,2 kW
- Air Pressure: 6 bar
- Max. Axis Speed (Full And No Load): 25 m/min - 70 m/min
- Double Horizontal Spindles (X Axis): n.2 (TH1, TH2)
- Double Horizontal Spindles (Y Axis): n.2 (TH3, TH4 )
- Vertical Spindles (Z Axis): n.12 (7X-5Y)
- Spindle Interaxis: 32 mm
- Spindle Speed: 3200 RPM
- Integrated Blade Unit, Fxed Position (X Axis): n.1
- Blade Thickness: 4,3 mm
- Electro Spindle Manual Tool Change: 4,5 kW, ER 32, 18.000 RPM
- Total Power: 10 kVA
- Dust-Collection Nozzle Diameter: n.2 x 120 mm n.1 x 80 mm
- Air Consumption: Q. = 750 m3/h
- Overall Dimensions: 2660 mm x 1560 mm x 1450 mm
- Net Weight: 1715 Kg
- Package Dimensions: 2650 mm x 1570 mm x 1680 mm
- Gross Weight: 1800 Kg
