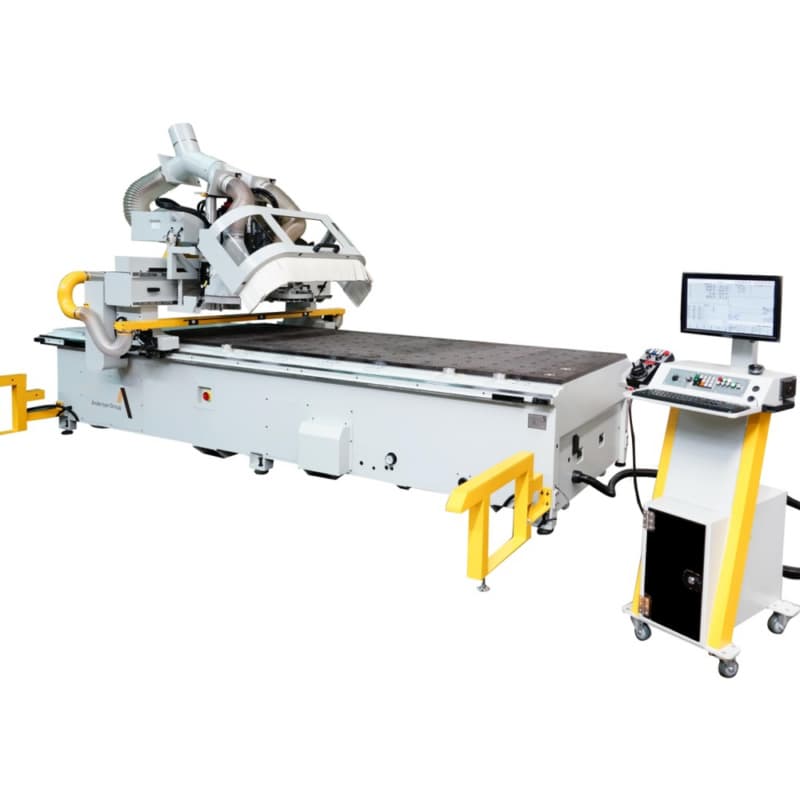

The Anderson SELEXX PLUS 512 TC+D HL CNC Router delivers powerful, precise, and efficient machining in demanding manufacturing environments. Built with a rigid gantry frame, powerful 12 HP spindle, FANUC digital servos, and automatic tool changing, it’s engineered for accuracy and repeatability in woodworking, plastics, aluminum, and composite applications. Its multi-zone vacuum table, advanced dust collection, and ergonomic operator controls ensure smooth production and clean results. Designed for versatility, the SELEXX PLUS handles nested-based manufacturing, drilling, trimming, and routing with ease.
Key Features & Benefits
Powerful Spindle and Efficient Tool Change System for Maximum Productivity
• Features a 12 HP, 4-pole air-cooled spindle with ceramic bearings for long-lasting, high-speed performance
• Includes an 8-position automatic tool changer with steel tool holder clips for quick tool swaps
• Touch probe detects tool length for precise depth control on each operation
Precision Boring and Dual Functionality for Enhanced Versatility
• 2 HP boring unit with 9 independently selectable spindles allows flexible vertical boring
• Full torque at 9,000 RPM and full HP at 12,000 RPM ensures cutting performance across materials
• Boring and routing functions run independently or together for seamless multitasking
Robust Construction and Vibration-Free Machining for Long-Term Accuracy
• Gantry and bridge are monolithic, one-piece construction for rigidity and precision
• Z-axis carriage uses Meehanite castings with pneumatic counterbalance for smoother movement
• Heavy-duty welded steel frame absorbs vibration and increases machining stability
High-Precision Motion Control for Flawless Cutting and Drilling
• FANUC AC digital servo motors control X, Y, and Z axes for closed-loop, repeatable positioning
• Dual-drive X-axis uses hardened helical rack and pinion system for fast, smooth motion
• Linear guideways and ball screws include anti-backlash ball nuts for precision and reliability
Advanced Vacuum Table with Safety and Flexibility for Material Handling
• Four vacuum zones with electronic safety barrier and low vacuum sensor for secure holding
• Phenolic grid table top with torsion-resistant steel base provides long-lasting flatness
• Includes pop-up pins and guide rails for easy part alignment and nested-based manufacturing
Operator-Friendly Controls and Dust Management for Clean, Easy Operation
• Handheld pendant with feed rate and rapid override simplifies machine control
• Automatic dust hood with damper system ensures efficient chip extraction
• Electronics stored in sealed under-machine drawer for space saving and protection
- No. Of Vacuum Zones: 4
- Controller: FANUC 0i
- Table Size X: 147" (3750 mm)
- Table Size Y: 61" (1550 mm)
- Stroke Of X-Axis: 152" (3880 mm)
- Clamping System: HSK-63
- Stroke Of Z-Axis: 9.84" (250 mm)
- Rapid Travel Speed In X: 3,149"/min (80 meters/min)
- Rapid Travel Speed In Z: 20 meters/min (787â€/min)
- Rapid Travel Speed In Y: 60 meters/min (2,362â€/min)
- Spindle Power: 12 HP / 18 HP
- Ride Along Tool Changer: 46244
- Dimensions: A: 188" (4,782 mm)
- Boring Block: 5+5 or 10+7
- Dimensions: B: 167" (4,250 mm)
- Dimensions :C: 90.5" (2,300 mm)
