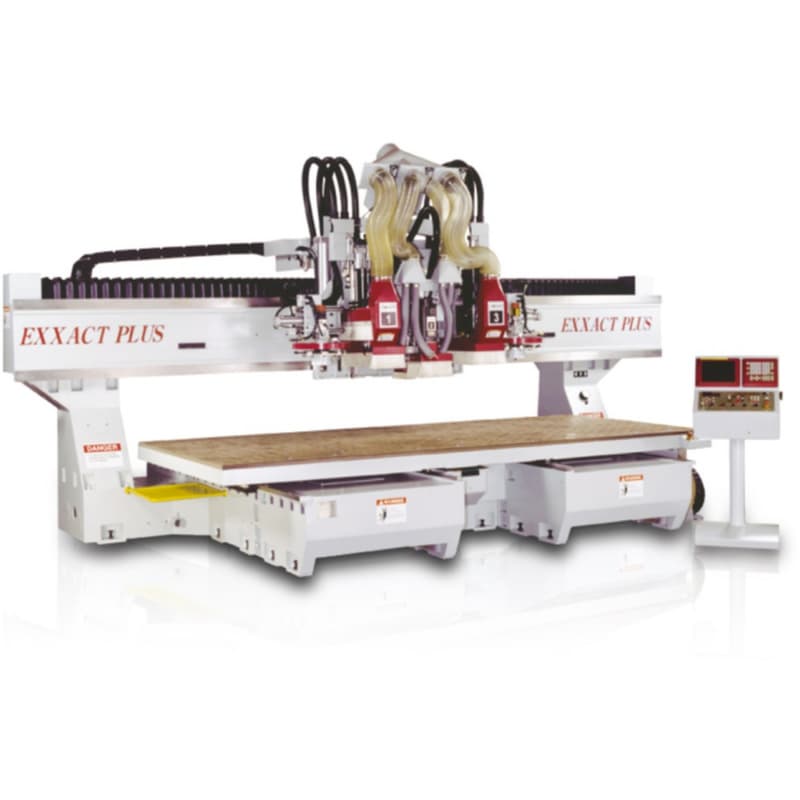

The EXXACT PLUS CNC Router is engineered to set a new standard in machining performance and accuracy. With its rigid steel weldments and advanced servo system, this router excels in processing wood, MDF, plywood, plastic, aluminum, and composite materials. It is designed for precision, speed, and versatility, making it the perfect solution for a variety of machining needs. The EXXACT PLUS combines high performance with user-friendly features, providing excellent machine access and flexibility in workholding.
Key Features & Benefits
Precision and Performance
• The EXXACT PLUS uses a high-accuracy servo system to provide superior machining results
• A rigid steel weldment base ensures smooth, consistent cutting across the X, Y, and Z axes
• Designed to handle both flat and aluminum plates, even at various thicknesses
Flexible Machining Options
• The moving table and fixed bridge design make setup and access easy
• Optional C-axis allows for even more flexibility in machining operations
• The machine can handle a wide variety of materials, including wood, plastics, aluminum, and composites
Enhanced Workpiece Holding
• Optional clamping, grid, or manifold vacuum systems ensure secure workpiece holding
• Allows precise and efficient machining, reducing setup time
• Ensures high-quality results with minimal vibration or movement during operation
User-Friendly Control and Connectivity
• Equipped with Ethernet options for remote technical support, ensuring quick problem resolution
• Utilizes industry-standard G-code for compatibility with all major CAD/CAM software
• Seamless integration with solid modeling software for easy design to machine communication
Safety and Durability
• The webbed steel substructure provides smooth and rigid operation during heavy-duty cutting
• Designed to withstand tough operations, ensuring longevity and consistent high performance
• CE safety standards ensure the machine operates with the highest level of safety in mind
- No. Of Tables: 1
- Controller: FANUC 0i
- Table Size X: 3700 mm (146 in)
- Height: 110" (2800 mm)
- Vacuum Pump: 10/25/40 HP
- Table Size Y: 1600 mm (63 in)
- Stroke Of X-Axis: 4400 mm (174 in)
- Clamping System: HSK-63F
- Stroke Of Y-Axis: 1775 mm (70 in)
- Max. Speed: 24000 RPM
- Stroke Of Z-Axis: 350 mm (14 in)
- Rapid Travel Speed In X: 80 M/min (3150“/min.)
- Rapid Travel Speed In Z: 30 M/min (1181“/min.)
- Rapid Travel Speed In Y: 80 M/min (3150“/min.)
- Power: 18 HP / 24 HP
- Ride Along Tool Changer: 46307
- Boring Block: 5+5 or 10+7
- Footprint: 6000 x 3375 mm (236" x 133")
