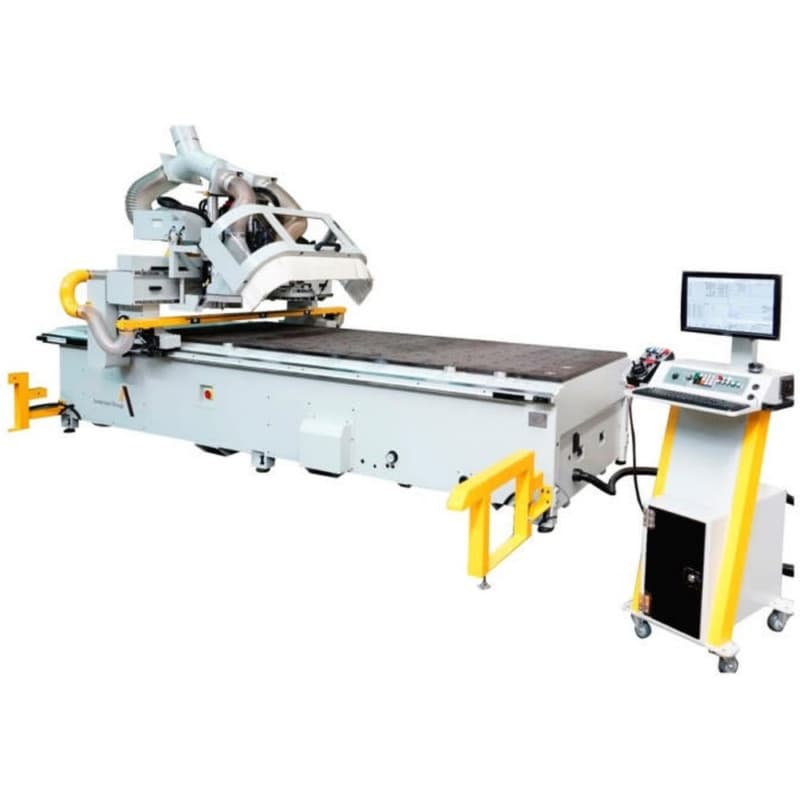

Anderson CNC Router Selexx Plus 510 TC+D HL Auto Offload

Pusher/Sweeper System, and integrated off-load Conveyor

Equipped with1 (one) 12 HP HSK63F Router Head With an 8-Position Ride-Along Automatic Tool Changer And 1 (one) Multiple Spindle Boring Head With Pop-Up Guide Rails

Moving gantry (stationary table) type machine equipped with 1 (one) 12 HP air-cooled router spindle, with grease lubricated ceramic bearings, an 8-Position Automatic Tool Changing System, with tool length touch probe, and 1 (one) 2 HP, multiple spindle boring unit with 9 independently selectable spindles for vertical boring. The spindle motor is powered by an electronic AC inverter drive system with dynamic spindle braking. Full Torque is achieved at 9,000 RPM & Full HP is achieved at 12,000 RPM. The Automatic Tool Changer Carousel, with Steel Tool Holder Clips, is mounted on the spindle carriage, next to the Router Spindle, for fast and efficient tool changes.

The bridge & vertical supports are a monolithic one-piece construction for maximum stiffness and accuracy.  X & Y axes are constructed of massive, heavy duty welded steel construction with multiple reinforcements to increase strength and absorb vibration. Z-axis spindle carriage is a specially designed Meehanite casting for high strength and inherent vibration dampening characteristics with a pneumatic counterbalance system for smooth and accurate operation.
Hardened and precision linear guide way systems with recirculating roller linear bearings are provided for all primary movements in the X, Y & Z axes. Hardened and precision ball screws with anti-backlash ball nuts are provided for all primary movements of the Y & Z axis.  The X-Axis is a dual drive, dual support, 2-channel system, using twin industrial grade, induction hardened, helical racks & pinions.

Table size: 1550 mm x 3100 mm (61” x 122”)
Pop-Up Positioning Pins: (plus 2 pop-up material guide rails)
Vacuum Zones per Table: 3 (three) - Automatic Control Based on Sheet Size
Axis stroke
• X axis: 3180 mm (125.2”)
• Y axis: 1835 mm (72.24”)
• Z axis: 250 mm (9.84”)

Single Axis Rapid Rate
• X-axis: 80 meters/min (3,149”/min)
• Y-axis: 60 meters/min (2,362”/min)
• Z-axis: 20 meters/min (787”/min)

Maximum Rapid Traverse
• All-axis: 100 meters/min (3,937”/min)

Spindle #1 - Router Spindle
• Spindle type: Anderson Air Cooled
• Motor power: 12 HP (S6): 10 HP (S1)
• Spindle speed (RPM): 1000-22000
• No. of changeable tools: 8
• Spindle nose: HSK63F taper

Spindle #2 - Line Boring Unit
• Spindle type: Line Boring Unit
• Motor Power: 2 HP
• Spindle speed: 4,500 rpm
• Vertical Drills: 5 x 5
• Drill Shank Dia: 10 mm
• HSK 63F tool holders: 8 sets (Holder & Locknut)

Aggregate Torque Ring: INCLUDED
Collet Sizes Included: (4) ½”, (4) 3/8” (4) ¼” & (4) ¾” (total # of collets: 16)

• Series: Selexx
• Table Size: 5 x 10
• No. Of Spindles: 8
• HP: 12 HP
