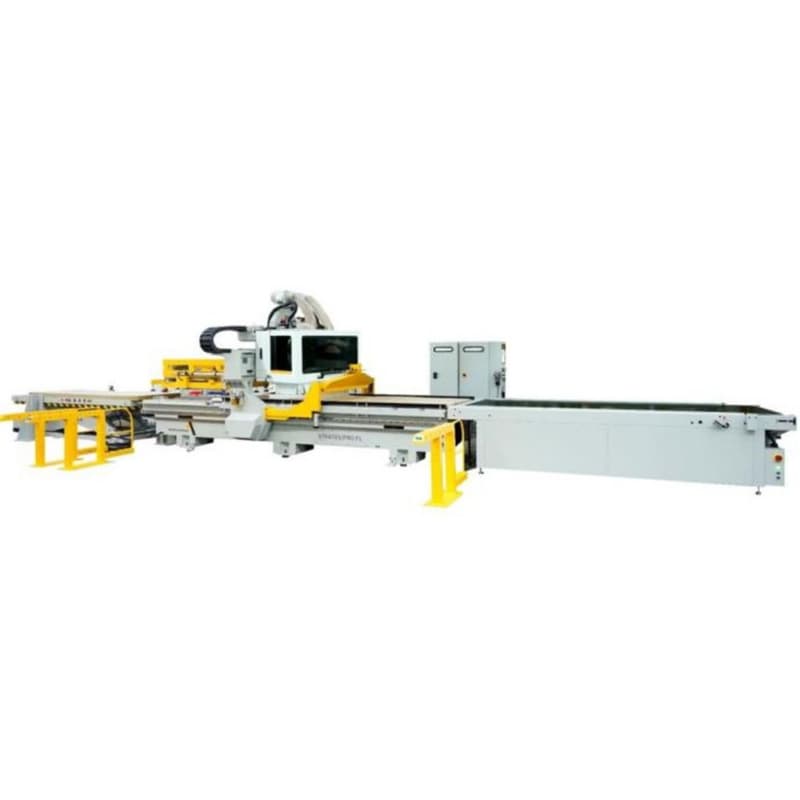

The Anderson CNC Router Stratos/Pro FL (Full Auto) combines cutting-edge technology with robust construction, offering an ideal solution for high-performance machining. With a powerful 24 HP router spindle and versatile tool-changing capabilities, this machine ensures quick, precise, and efficient operations. Its advanced features, including a high-torque spindle and state-of-the-art vacuum table system, make it perfect for both small and large production runs. Whether you're working with wood, MDF, or other materials, the Stratos/Pro FL guarantees exceptional precision and reliability.
Key Features & Benefits
Powerful Spindle for Enhanced Performance
• 24 HP 4-pole liquid-cooled router spindle for efficient, high-torque operations
• Achieves full torque at 9,000 RPM and full HP at 12,000 RPM for consistent cutting power
• Powered by an electronic AC inverter drive system with dynamic spindle braking for smooth operations
Automatic Tool Changing System for Increased Productivity
• 10-Position Automatic Tool Changer carousel for fast and efficient tool swaps
• Steel Tool Holder Clips mounted on the spindle carriage minimize tool change time
• Tool length touch probe ensures accuracy and reduces manual adjustments
Precision Movement with Robust Axis Construction
• X and Y axes constructed with heavy-duty welded steel for maximum strength and vibration resistance
• Z-axis uses a specially designed Meehanite casting for high strength and inherent vibration dampening
• State-of-the-art STAR linear guideway systems and precision ground ball screws ensure smooth and precise movements
Versatile Vacuum Table for Secure Workholding
• Torsion-resistant cast steel vacuum table with 30mm thick phenolic grid top for easy mounting
• Four automatic vacuum zones with m-code control for flexible workpiece holding
• Pneumatically controlled Pop-Up pins and Guide Rails enhance material location accuracy
Advanced Lubrication and Dust Collection Systems
• Automatic oil lubrication for X & Y guideways and ball screws for long-lasting durability
• Grease fittings for end bearings and profiled linear guideways, ensuring low maintenance
• Dust collection hood with an automatic damper system helps maintain a clean work environment
- Table Size X: 146" (3700 mm)
- Vacuum Pump: Controller
- Table Size Y: 63" (1600 mm)
- Stroke Of X-Axis: 154" (3900 mm)
- Clamping System: HSK 63
- Stroke Of Y-Axis: 86" (2180 mm)
- Max. Speed: 24000 RPM
- Stroke Of Z-Axis: 14 in (350 mm)
- Rapid Travel Speed In X: 100 M/min (3937â€/min)
- Max. Rapid Traverse: 141 M/min (5551â€/min)
- Rapid Travel Speed In Z: 20 M/min (787“/min.)
- Rapid Travel Speed In Y: 100 M/min (3937â€/min)
- Power: 18 HP
- Ride Along Tool Changer: 46307
- Boring Block: 5+5 or 10+7
