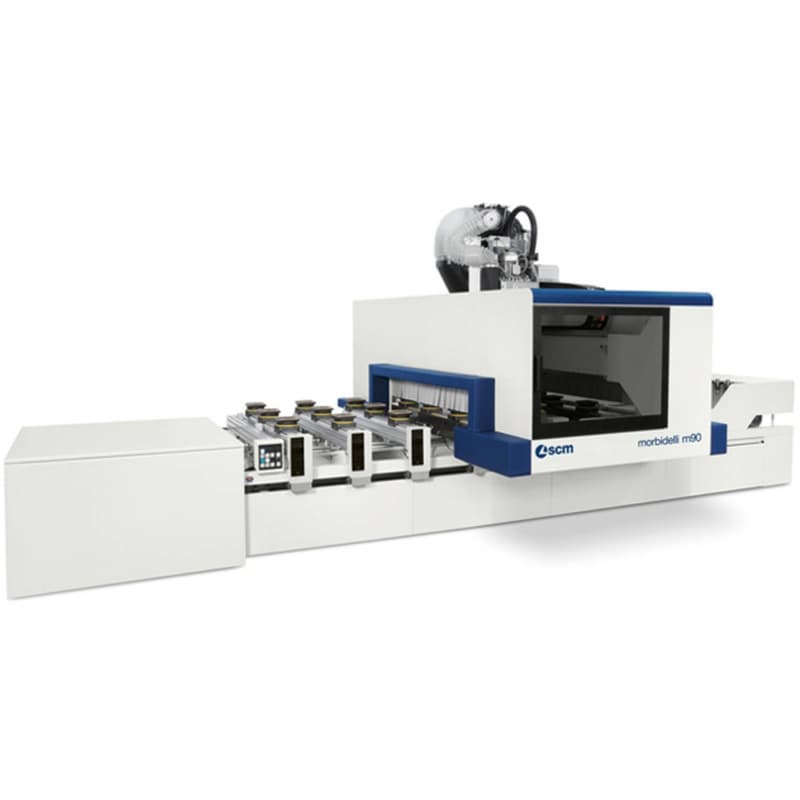

The SCM Morbidelli M90 is a state-of-the-art CNC machining center designed for high-performance routing, drilling, and panel processing in woodworking and similar industries. Engineered for precision and automation, this machine is ideal for manufacturers seeking increased efficiency, accuracy, and flexibility in their production processes.
Key Features & Benefits:
Robust & High-Precision Machine Structure:
• Cage-Like Electro-Welded Frame: Ensures superior rigidity, long-term stability, and precision.
• Wide Base Design: Enhances durability, reduces vibrations, and improves machining accuracy.
• Linear Recirculating Ball Bearings: Provides smooth and precise movement on prismatic guides.
• Rack and Pinion System: Helical teeth on X and Y axes for better thrust, acceleration, and speed.
• Recirculating Ball Screw Drive: On the Z-axis for high-speed movement and accuracy.
• Brushless Motor Technology: Controlled via static inverters for reduced cycle times and maintenance.
Advanced Machining Capabilities:
High-Power Electrospindle:
• 14kW (19 HP) HSK-63F attachment.
• Speeds from 1,500 to 24,000 rpm.
• Forced air cooling and ceramic bearings for durability.
RO.AX F31LTC Drilling Unit:
• 21 vertical spindles, 5 horizontal spindles, and an integrated saw blade along the X-axis.
• High-speed performance up to 8,000 rpm (optional inverter increases speed to 10,000 rpm).
• High-pressure pneumatic circuit for drilling efficiency.
• FAST14 Tool Changer:
• 14-position linear tool changer for quick and seamless tool switching.
• Maximum tool diameter: 180mm, weight capacity: 8kg per tool.
High-Efficiency Worktable & Vacuum System:
• Multifunction Aluminum Worktable: With vacuum zones for secure workpiece holding.
• Dynamic Vacuum System: Focuses suction only where machining is active, improving hold-down force for small or porous materials.
• Tool Length Detection Device: For automated tool calibration.
• Side and Rear Safety Fences: For added protection during machining operations.
Smart Automation & Integration:
• Automated Loading/Unloading Systems:
• Loading table with lifting system.
• ON-OFF workpiece outfeed pusher with integrated dust extraction.
• Motorized outfeed conveyor belt with automatic start-stop function.
Maestro Connect IoT Integration:
• Real-time machine monitoring and analytics.
• Remote diagnostics and proactive maintenance support.
Maestro Lab Programming Software:
• 3D graphical CAD/CAM suite for easy programming and optimization.
• Supports DXF file imports and parametric programming.
Maestro Active HMI Software:
• Intuitive touchscreen control panel with user-friendly interface.
• Machine diagnostics, production reports, and maintenance tracking.
Advanced Safety & Ergonomics:
• PRO-SPACE Safety System: Allows easy access to the working table from any position around the machine.
• Bumpers and Retractable Safety Strip Curtains: For operator protection.
• Centralized Dust Extraction System: With automatic ON-OFF valves.
• RFID-Enabled Safety Sensors: Prevent errors and ensure compliance with safety standards.
Energy-Efficient & Customizable Power Options:
• Electrical Compatibility: With 208/230/460V – 60Hz power supply.
• Automatic Centralized Lubrication System: For reduced maintenance.
• Air Conditioning for Electrical Cabinet: Ensures performance in high-temperature environments.
- Table Size: 4' x 10'
- Series: Morbidelli M90
- Vertical Speed X-Y Axes: 56 m/min
- Z Axis Panel Passage: 180 mm
- Routing Unit Max. Rotation Speed: 24000 RPM
- Routing Unit Available Tools on Tool Changer: 25
- Drilling Unit Max. Rotation Speed: 8000 RPM
