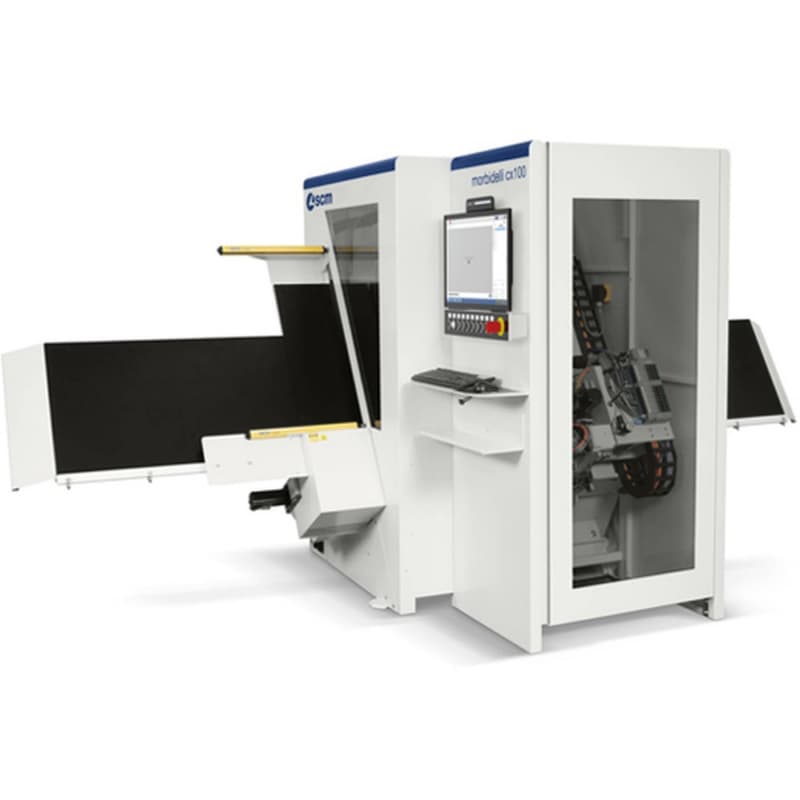

The SCM Morbidelli CX100 CNC Drilling Center delivers exceptional speed, accuracy, and automation for drilling, grooving, and vertical routing operations. Designed for high-performance cabinetry and panel processing, it features automatic workpiece length detection, top-down drilling, and advanced tool management through SCM's proprietary Maestro software. With its scratch-free worktable and intuitive operation, the CX100 is built to maximize productivity while maintaining superior finish qualityeven on delicate surfaces.
Key Features & Benefits
Precision Drilling with Top Reference Logic
• Top-down drilling hides imperfections within the cabinet interior
• Uses the panel’s exterior as the reference to offset thickness variations
• Supports high productivity without operator intervention on the worktable
Automatic Length Measurement for Perfect Joints
• Integrated laser system auto-detects workpiece length
• Corrects discrepancies for perfect joint alignment every time
• Eliminates manual adjustments, saving time and reducing human error
User-Friendly Operation with Maestro Software
• SCM’s Maestro CAD/CAM platform for intuitive programming
• Operates within a Windows environment with easy tool and process management
• Reduces programming time and improves workflow consistency
6-Position Automatic Tool Changer for Versatile Production
• Seamlessly switches tools for varied operations without manual changeover
• Enhances flexibility for small batch or high-volume runs
Stable, Scratch-Free Worktable for Delicate Materials
• Floating mobile clamp ensures maximum stability during machining
• Upper presser unit keeps workpieces aligned and steady
• Designed to prevent surface damage, ideal for lacquered and sensitive panels
Efficient Material Handling
• Side supports simplify loading/unloading of panels up to 3050 mm
• Boosts operator efficiency while minimizing fatigue
- Vertical Speed X-Y Axes: 40 m/min
- Max. Workpiece Dimension: 3050 x 900 x 60 mm
- Min. Workpiece Dimensions: 200 x 70 x 10 mm
- Independent Vertical Spindles: 12"
- Independent Horizontal Spindles X Direction: 2"
- Electrospindle Motor Power: 5,5 kW
- Independent Horizontal Spindles Y Direction: 4
