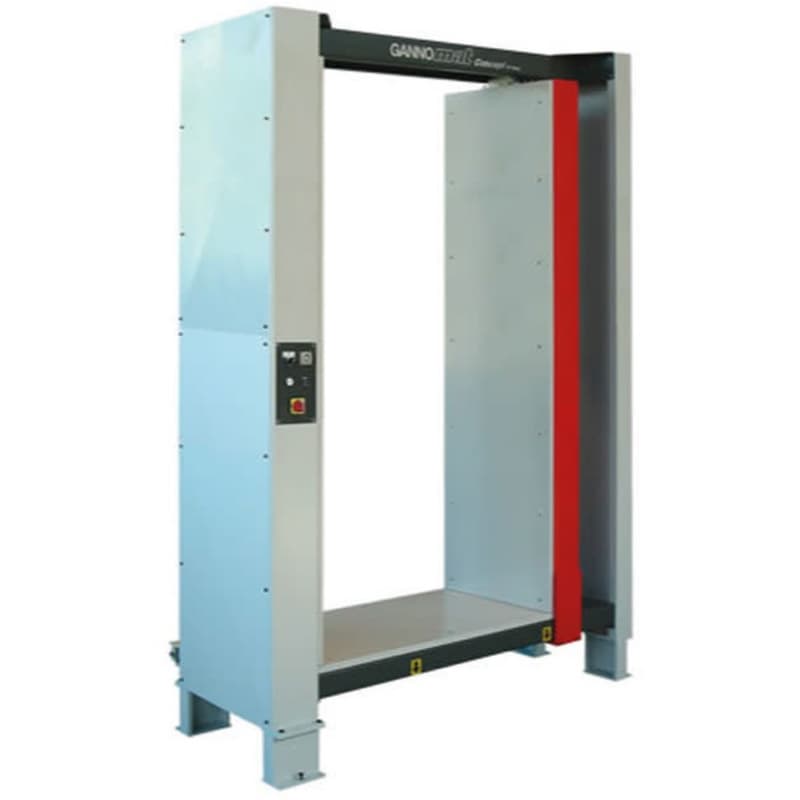

The Gannomat Concept 70 EASY 170 Case Clamp delivers reliable, adjustable power for professional cabinet and drawer assembly. Designed for high accuracy in dowel construction, this compact solution supports consistent production with minimal floor space. With a working height of 67" and variable pressing forces, it’s built to accommodate a wide range of case sizes. This model is a perfect fit for woodworking operations seeking efficiency, precision, and durability.
Key Features & Benefits
Boost Assembly Versatility with Adjustable Pressing Power
• Pressing force adjustable from 300 daN to 2200 daN for flexible clamping across various cabinet sizes
• Potentiometer allows stepless fine-tuning to match material needs and prevent damage
• Three pressing speeds (5/10/25 mm/sec) support high production or delicate positioning
Optimize Space and Workflow Efficiency
• Small footprint occupies less than 20 square feet, ideal for compact assembly lines
• Clamp dimensions of 79" L x 32" D offer robust capability without sacrificing workspace
• Automatic opening and cycle timer streamline repetitive tasks and reduce operator effort
Support Larger Case Goods with Elevated Working Height
• 67" working height is ideal for tall cabinets or stacked drawers
• Minimum clamping width of 6" and maximum of 51-3/16" cover a wide range of case sizes
• Reinforced steel beams maintain precision under pressure and heavy-duty use
- Weight: 1,464.000 lbs
- Working Height: 67"
- Installed Power: 220 V, 3 Phase
- Max. Working Dimensions: 1300 x 1700 x 700
- Min. Working Dimensions: 150 x 150 x 700
- Clamp Dimensions: 79" x 32"
- Max. Clamping Width: 51-3/16"
- Min. Clamping Width: 6"
