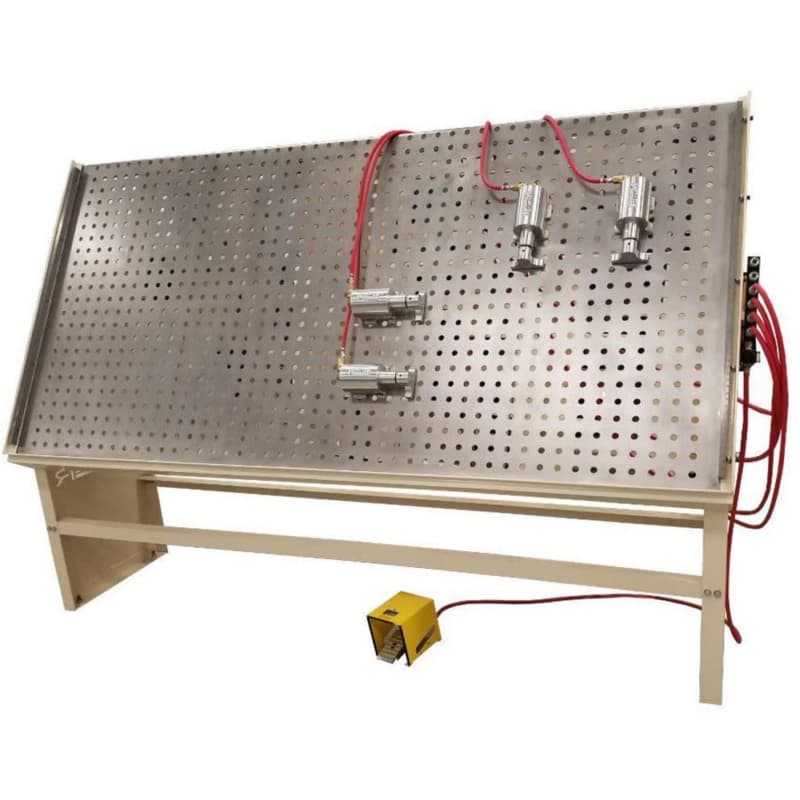

The Ritter R375V Clamp is engineered for both high and low-volume cabinet door production. Its powerful pneumatic system replaces traditional bar or pipe clamps, providing consistent pressure to the glue line. The clamp features an ergonomic vertical easel that simplifies assembly while maintaining precision. With adjustable pressure and a foot pedal for activation, this clamp system is designed to maximize efficiency and streamline your production process.
Key Features & Benefits
Efficient Pneumatic Clamping System for Consistent Pressure
• Pneumatic clamp cylinders replace individual bar or pipe clamps, offering superior pressure control
• Foot pedal operation ensures hands-free activation, enhancing workflow speed
• Each cylinder is activated via a simple slide toggle for easy, precise pressure adjustments
Versatile Vertical Assembly Easel for Faster Setup
• 4' x 8' vertical easel provides ample space for a variety of cabinet doors and assemblies
• 30-deg easel angle ensures easy and square alignment of your workpiece
• The system is designed for easy adjustment, making it ideal for different sized cabinet doors
Heavy-Duty Construction for Durability and Longevity
• Built with a robust steel frame and perforated steel table for long-lasting performance
• 3" bore clamp cylinder housing ensures strength and reliability in high-pressure settings
• Includes squaring bar and fence to secure your cabinet door firmly during assembly
Customizable Pressure for Optimal Clamping
• Adjustable pressure range from 20 to 130 PSI to accommodate various production needs
• Easy-to-read 1/4" NPT regulator/gauge allows precise monitoring and adjustment of pressure levels
• Ensures consistent pressure on all parts of the door, improving glue bond quality and uniformity
Easy Setup with Expansion Options for Flexibility
• Six universal clamping cylinders with a 2" cylinder position grid pattern for adjustable clamping options
• Foot treadle activation simplifies operation and reduces setup time
• Additional options such as extra clamping cylinders, manifolds, and foot assemblies are available for customized configurations
- Weight: 750.000 lbs
- Working Height: 31"
- Usable Table Area: 95" x 46"
- Footprint: 74" x 30"
- Air: 80-100 PSI
- Shipping Dimensions: 53" X 106" X 30"
- Shipping Weight: 778 lbs
