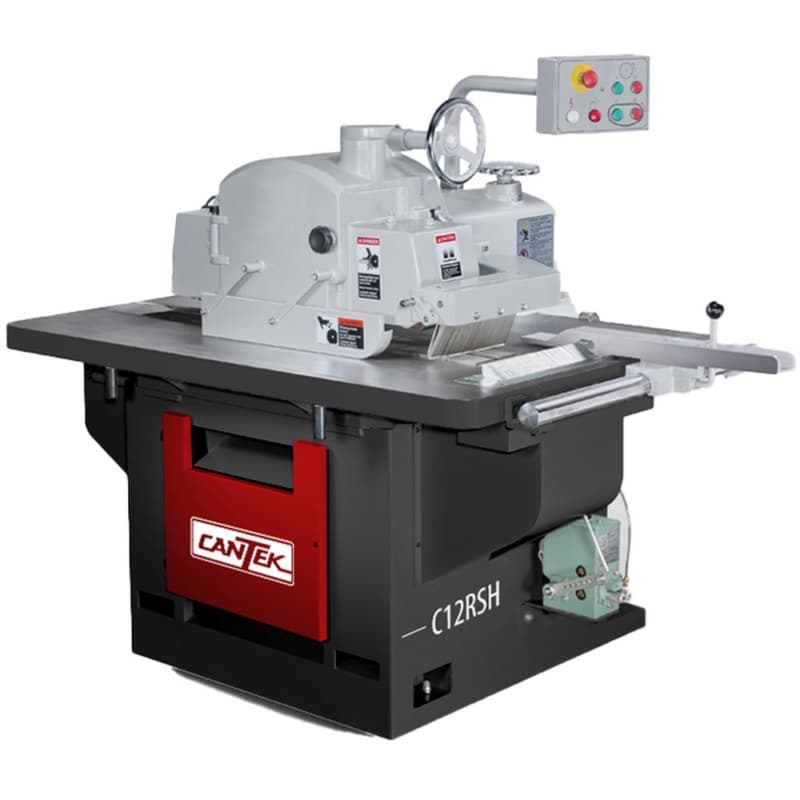

The CANTEK C12RSH Straight Line Rip Saw is a precision-engineered straight line rip saw designed for shops seeking to enhance efficiency without investing in a multi-blade system. Ideal for millwork machinery applications, it delivers parallel and accurate rip cuts with a guaranteed glue joint finish up to 10 feet, eliminating the need for additional jointing. Built with a heavy-duty cast iron structure, advanced lubrication, and a powerful saw arbor, this solid wood processing machine ensures durability, precision, and operator safety.
Key Features & Benefits
Guaranteed Glue Joint Finish
- Produces a flawless glue joint finish up to 10 feet, ready for panel glue-up
- Eliminates the need for jointing after ripping, reducing processing time
Precision Straight Line Cutting
- Cast iron chain track with a double-V design ensures precise rip cuts
- Eight hold-down rollers across six rows keep material firmly in place for straighter, more accurate results
Durable & Low-Maintenance Construction
- FC35 cast iron chain track ensures long wear life and precision feeding
- Maintenance-free track with a mechanical lubrication system for smooth operation
- Rigid welded steel frame absorbs vibrations for optimal cutting accuracy
High-Performance Saw Arbor
- Nickel-chrome steel arbor, dynamically balanced for minimal vibration
- Runs on precision angular contact ball bearings, eliminating radial run-out and axial thrust
- V-belt driven from below for efficient power transmission
Operator Safety & Ease of Use
- Three sets of anti-kickback fingers (two top, one in the table) for enhanced safety
- Soft start Star Delta starter reduces amp draw during startup, protecting electrical components
- Optional laser light projection for maximum material yield and precision cutting
- Dust Port Size: 4"
- Table Size: 39" x 57"
- Arbor Motor: 15 HP
- Distance Between Saw And Column: 18"
- Feed Motor: 1 HP
- Feed Speed: 50 - 120 FPM
- Glue Line Guarantee: 10' (+/- 0.0098" or 0.25 mm)
- Machine Dimensions: 68" x 46" x 62"
- Max. Workpiece Thickness: 3.34"
- Min. Workpiece Length: 14"
- Net Weight: 2,090 lbs
- Saw Arbor Diameter: 1"
- Saw Arbor Speed: 4500 RPM
- Saw Blade Diameter: 10-12"
- Shipping Dimensions: 65" x 55" x 60"
- Shipping Weight: 2,530 lbs
- Table Height: 31-7/8"
- Weight: 2,375.000 lbs
