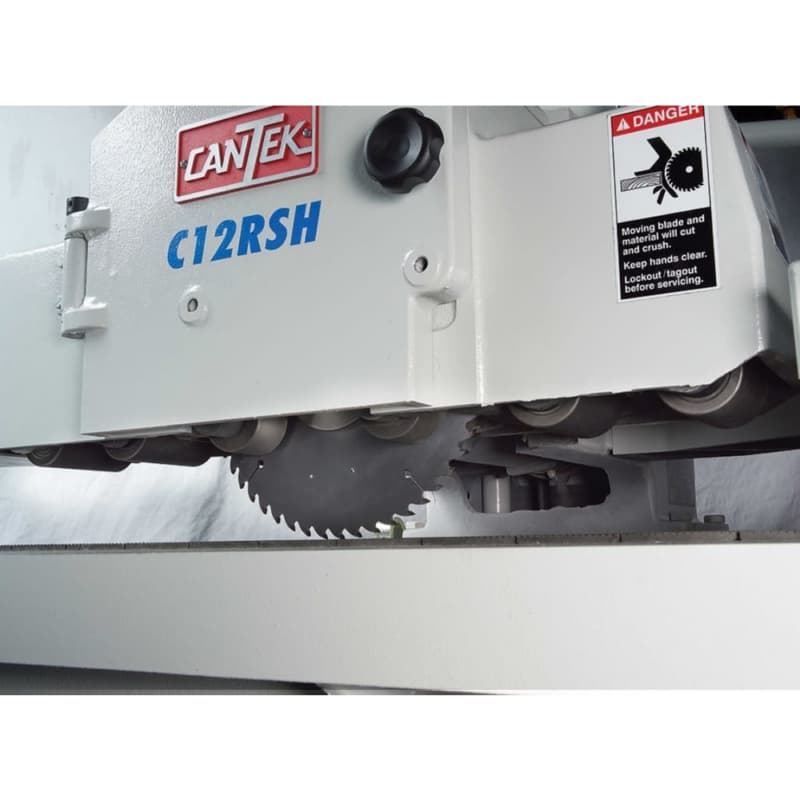

The Cantek C12RSHA Single Blade Rip Saw is designed for woodworking shops that require precision and efficiency in their ripping operations. Engineered for superior accuracy, this machine ensures a guaranteed glue joint finish up to 10 feet, eliminating the need for additional jointing after ripping. Its cast iron construction, advanced chain track system, and extended pressure section provide long-term durability and consistently straight, high-quality cuts. Built for reliability and ease of use, the C12RSHA is the perfect solution for increasing productivity without the investment in a multi-blade rip saw.
Key Features & Benefits
Unmatched Precision Cutting for Superior Results
- Heavy-duty cast iron saw assembly, column, and table absorb vibrations for optimal cutting results.
- Ensures long machine life and superior bearing durability.
- Maintains stability during high-speed cutting operations for consistent performance.
Reliable and Maintenance-Free Chain Track System
- FC35 cast iron chain track with double-V design ensures precise straight-line ripping with extended wear life.
- Mechanical chain oiler provides consistent lubrication, automatically adjusting to feed speed.
- Built-in warning light alerts when oil levels are low, preventing damage by stopping the track when necessary.
Safety and Stability for Enhanced Operator Protection
- Eight hold-down rollers across six rows keep materials firmly in place for straighter, more accurate cuts.
- Three sets of anti-kickback fingers (two on top, one in the table) add an extra layer of operator safety.
- Soft start Star Delta starter reduces amp draw on startup, protecting electrical components.
Effortless Adjustments and Optimized Material Usage
- Cast iron rip fence mounted on a large-diameter round guide rail for smooth and precise positioning.
- Quick-locking lever ensures fast and secure adjustments for maximum efficiency.
- Optional laser light projects the cutting line to maximize material yield and minimize waste.
- Arbor Motor: 15 HP
- Distance Between Saw And Column: 18"
- Feed Motor: 1 HP
- Glue Line Guarantee: 10' (+/- 0.0098" or 0.25mm)
- Machine Dimensions: 68" x 46" x 62"
- Net Weight: 2,090 lbs
- Saw Arbor Diameter: 1"
- Saw Arbor Speed: 4500 RPM
- Saw Blade Diameter: 10 - 12"
- Shipping Dimensions: 65" x 55" x 60"
- Shipping Weight: 2,530 Lbs
- Table Height: 31-7/8"
