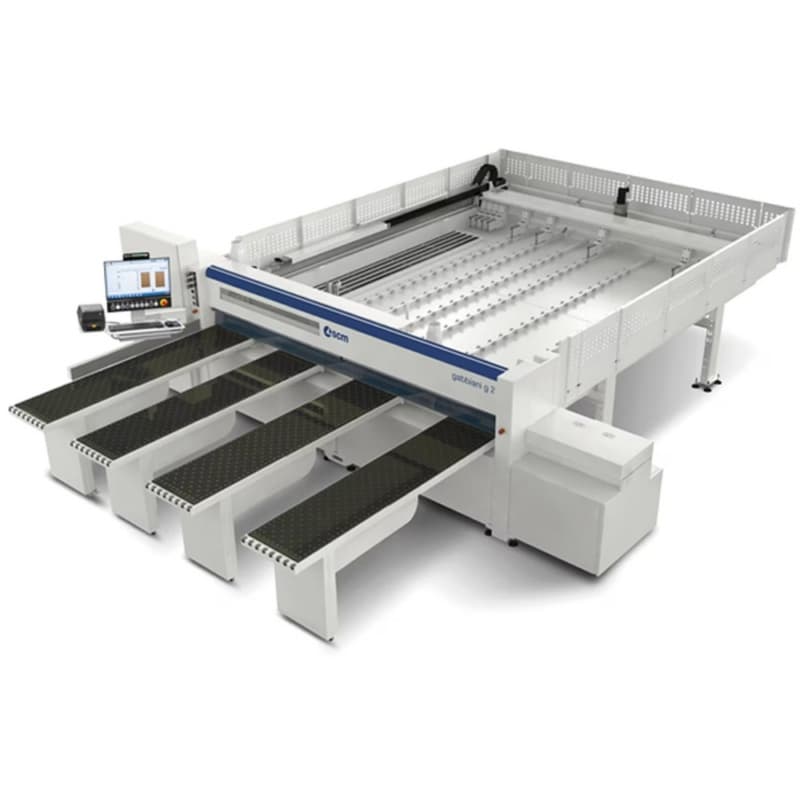

The SCM G2 115 (3800) Automatic Horizontal Beam Saw is a high-performance industrial panel saw designed for precision, speed, and efficiency in demanding manufacturing environments. Engineered for just-in-time production, it offers an exceptional balance of cost and performance, making it a reliable choice for furniture production, panel sizing, and plastic material processing. Equipped with HI-TRONIC vertical stroke control, prismatic guides, and the FLEXCUT system, this advanced machine ensures superior accuracy, flexibility, and seamless operation across various materials, including postforming and plastic panels.
Key Features & Benefits
• HI-TRONIC Vertical Stroke Device for Unmatched Precision
• Electronically controlled blade system ensures high-speed, ultra-accurate cuts with minimal waste
• Delivers consistent finishing quality, even on delicate and postforming panels
Prismatic Guides with Recirculating Spheres for Maximum Stability
• Ensures friction-free linear movement, providing smoother and more stable cutting operations
• Enhances long-term durability, reducing maintenance costs and downtime
High-Speed Performance for Increased Productivity
• Feed and return stroke speeds up to 170 m/min maximize output for large-scale production
• Centralized automatic lubrication system extends machine lifespan and minimizes maintenance efforts
FLEXCUT 1/D & 1/S for Multi-Cut Efficiency
• Dual independent pushers enable simultaneous panel processing, significantly reducing cycle times
• 1/S version provides dual independent cutting axes at a cost-effective price
• 1/D version features a mobile unit with dual grippers, allowing extreme flexibility in strip width adjustments
SAW-SET System for Quick & Precise Tool Changes
• Electronically controlled blade and tool adjustments reduce setup time and enhance ease of operation
• Ideal for high-precision furniture manufacturing, panel sizing, and plastic material processing
- 70: Kit for advanced building materials cutting
- 0 - 150 (0 - 170): Pusher Variable Speed m/min
- 1/S: Number of Clamps
- Available: FLEXCUT devices
- Max. Motor Power with Inverter - 100 Hz kW (opt.): Saw Carriage Variable Speed m/min (Opt.) (opt.)
- Main Blade Motor Power kW (opt.): 7.5 (11) (15) (18)
- Blade Projection: 115 mm
- Cutting Length: 3200 / 3800 / 4500 mm
