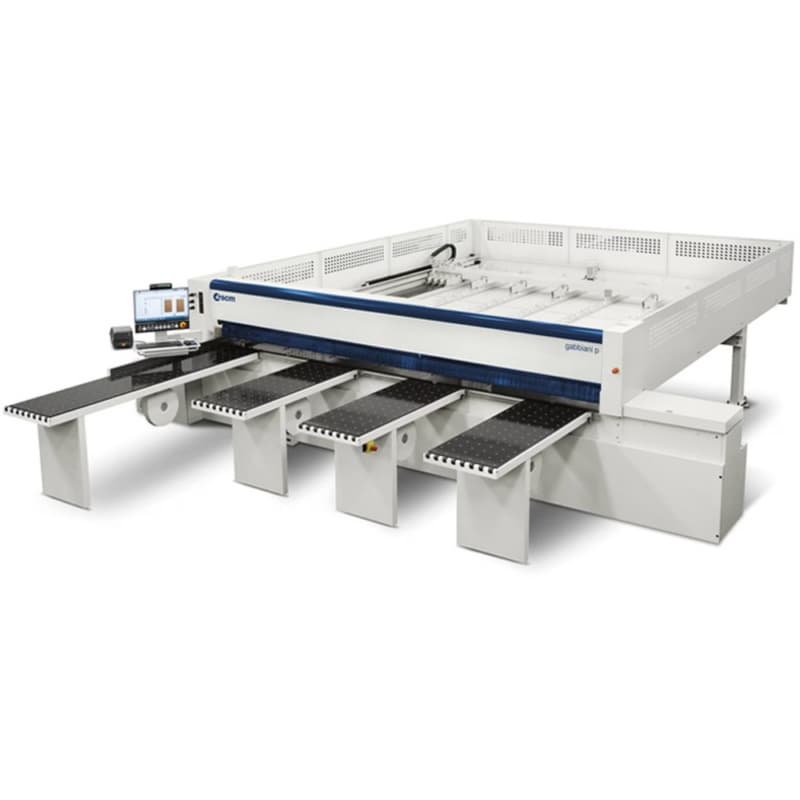

The SCM Gabbiani P60 (3300) Automatic Horizontal Beam Saw is a high-performance cutting solution made for precision, speed, and efficiency. Constructed for small-sized companies, this advanced single-blade beam saw is controlled by a PC/PLC system, making it ideal for cutting a variety of solid wood panels and composite materials, including chipboards, MDF, multilayer panels, plywood, and fiber panels. Its seamless integration with flexstore storage solutions further enhances automation and workflow optimization. With cutting-edge features like electronic blade control, independent pushers, and high-speed precision, the Gabbiani P60 maximizes productivity while maintaining top-tier cutting quality.
Key Features & Benefits
Superior Cutting Precision with HI-TRONIC Device
• Advanced electronic control ensures high-speed, high-precision cuts.
• Delivers exceptional finishing quality for professional-grade results.
• Minimizes manual adjustments, increasing operational efficiency.
Increased Efficiency with FLEXCUT 1/D System
• Two independent pushers enable multiple cuts simultaneously, reducing cycle times.
• Enhances flexibility by allowing different bar widths to be processed at once.
• Maximizes production output without compromising accuracy.
Smooth and Reliable Operation with Prismatic Guides
• Recirculating sphere guides ensure maximum linearity and minimal friction.
• Achieves high feed and return speeds, up to 170 m/min, for improved throughput.
• Centralized lubrication system eliminates the need for frequent maintenance.
Consistent Performance with Pusher Beam Technology
• High-speed return stroke of up to 135 m/min accelerates production cycles.
• Centralized, automated lubrication system reduces downtime and maintenance costs.
• Ensures long-term precision and reliability for continuous operation.
- Blade Projection: 60 mm
- Cutting Length: 3300 mm
- Main Blade / Scorer Blade Diameter: 300/200 mm
- Scoring Unit Blade Motor 50 Hz: 1.5 kW
