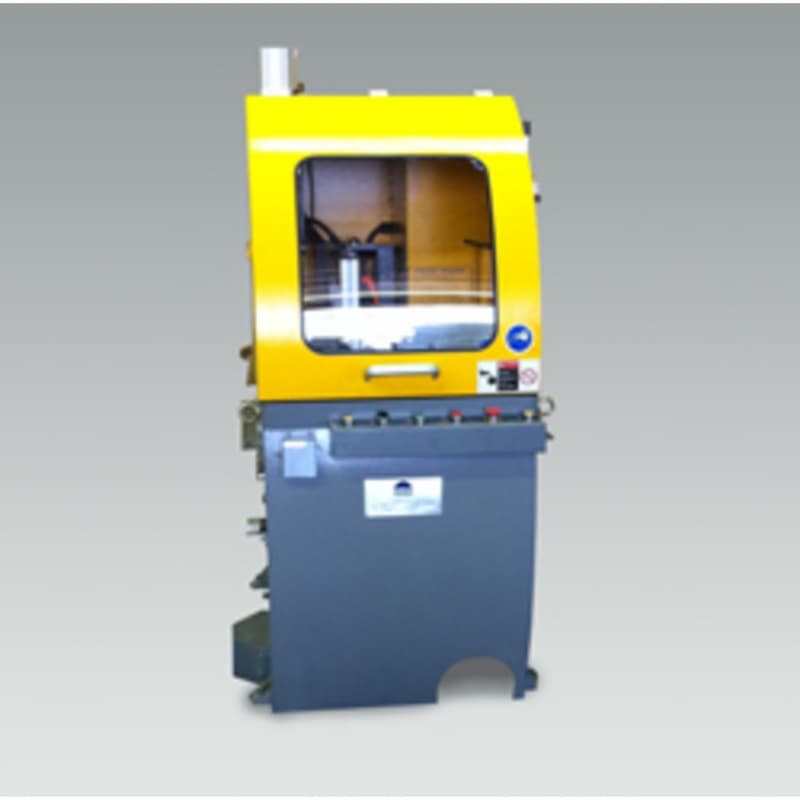

The PMI-24 is a semi-automatic upcut saw engineered for cutting aluminum extrusions, profiles, and other non-ferrous materials including copper, brass, and plastics. Built for consistent performance, it offers a large 24†blade and vertical/horizontal clamping to ensure clean, burr-free cuts. With air-over-oil feed rate control and adjustable clamping pressure, operators have full command over the cutting process. Its robust 10 HP motor and 2000 RPM blade speed make it ideal for high-throughput industrial use.
Key Features & Benefits
24" Blade Capacity Maximizes Cutting Width and Depth
• The large diameter blade reaches up to 7.87" in cutting height and 16.5" in width
• This allows for processing of large or stacked aluminum profiles in a single pass
• Ideal for applications that demand clean, accurate crosscuts on wide materials
Air-Over-Oil Feed System Delivers Smooth and Controlled Cutting
• Operators can precisely manage the blade feed rate, reducing material damage
• Controlled descent extends blade life and ensures smoother surface finishes
• The system balances speed with accuracy for improved production flow
Dual Clamping System Ensures Workpiece Stability and Safety
• Equipped with vertical and horizontal clamping for maximum part security
• Adjustable pressure prevents distortion on thin-walled or delicate materials
• Reduces vibration during cutting, which enhances cut quality and operator safety
High-Powered Motor and Blade Speed for Demanding Tasks
• The 10 HP motor supports cutting of dense non-ferrous materials with ease
• 2000 RPM blade speed provides fast, efficient cuts without sacrificing precision
• Optimized for aluminum but capable of processing copper, brass, and plastics
Automation Ready with Go2 PD-50 and PD-100 Positioning Systems
• Go2 PD-50 offers automatic go-to stop positioning for repeat cuts
• Go2 PD-100 adds pushing functionality to enable semi-automated feeding
• Both use rack and pinion drive with a non-contact encoder for quick, accurate setup
- Weight: 1210 lbs
- Blade Size: 24" x 1" bore
- Table Size: 45-1/4" x 26" (1150mm x 660mm)
- Working Height: 29-1/2" (750 mm)
