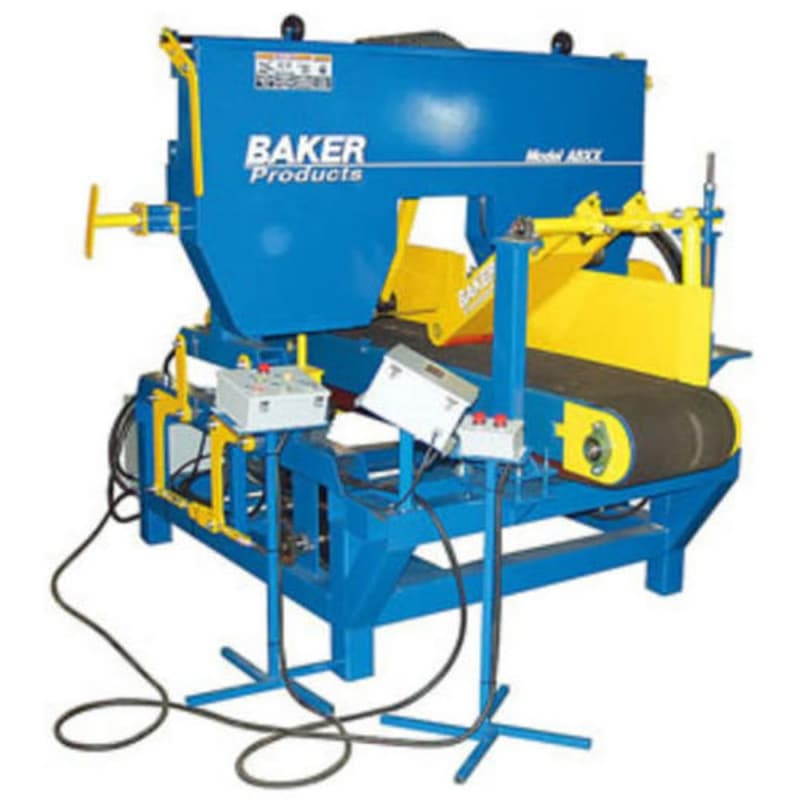

The Baker ABXX Band Resaw is a high-performance bandsaw designed to maximize grade lumber production while maintaining a compact footprint and an economical price point. Featuring a 16-inch wide cutting capacity, it efficiently processes wood with a thin-kerf band blade, minimizing material waste and delivering a smooth finish. Its adjustable headrig and fixed conveyor height ensure seamless integration with other millwork machinery and woodworking equipment. Whether you're in solid wood processing, panel processing, or general woodworking, the Baker ABXX is built for precision, durability, and efficiency.
Key Features & Benefits
Optimized Cutting Performance
• Accepts material up to 16" wide x 12" tall, allowing for large workpieces.
• Thin-kerf (0.072") blade minimizes material waste while producing high-quality cuts.
• 28" dynamically balanced steel band wheels ensure smooth operation and extended blade life.
High Efficiency & Versatility
• Variable feed speed (0-95 feet per minute) adapts to different wood types and cutting requirements.
• Capable of ripping lumber, cutting grade lumber from sawmill squares, and making angled cuts.
• Hydraulically powered hold-down wheel system enhances stability and precision.
Seamless Integration & Compact Design
• Fixed conveyor height (34" above floor) simplifies integration with other woodworking machinery.
• Compact size (56" wide x 64" deep) saves valuable floor space in your workshop or millwork facility.
• Multiple material handling options, including return conveyor and tilting feedworks, for customized workflow solutions.
Powerful & Reliable Operation
• 40 HP TEFC main drive motor delivers robust cutting power.
• Hydraulic motor-driven conveyor system with a 10-gallon reservoir for smooth feed control.
• NEMA 12 prewired electrical system ensures safety and reliability with overload protection.
Durable Blades & Advanced Tensioning
• Compatible with 14' 10" x 1" x 0.035" or 14' 10" x 1¼" x 0.035" hardback blades.
• Mechanical spring blade tensioning maintains precision cuts with minimal adjustments.
- Guides: Baker Low-Profile Flat Guides System with hardened tool steel guide plates with rear backup roller
- Number of Heads: 1
- Height: 79"
- Length: 108"
- Weight: 3,000 lbs
- Width: 93-3/4"
