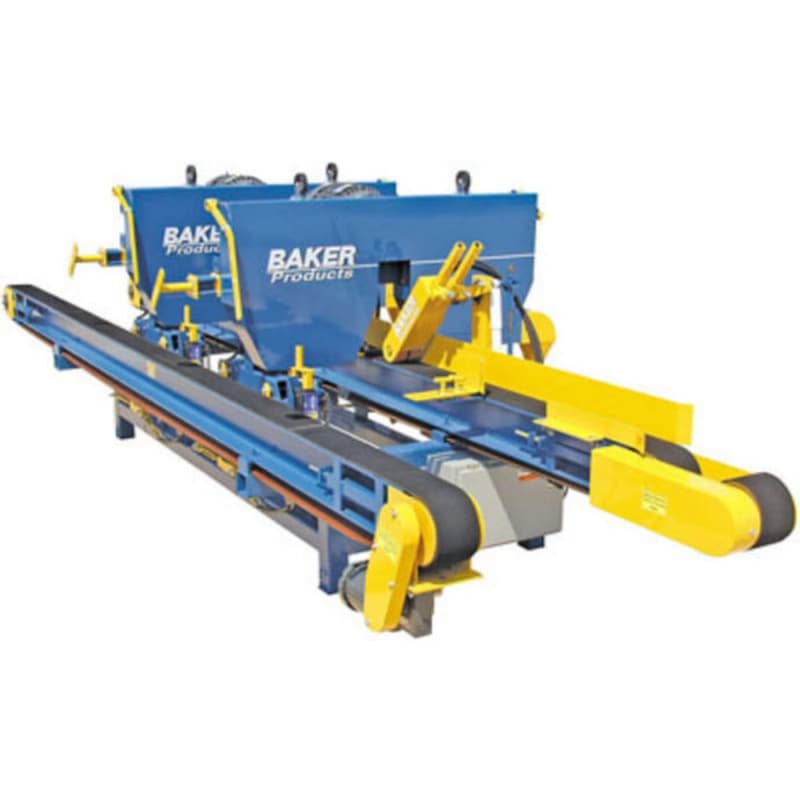

The Baker BX Double Head Band Resaw is a powerful and versatile bandsaw designed for high-efficiency solid wood processing. Featuring thin-kerf technology and a low-profile flat guide system, this resaw maximizes yield while minimizing sawdust waste, making it ideal for millwork machinery operations. Its heavy-duty construction, adjustable blade height, and two-sided feedworks allow for precision cuts on random-width material, cants, and panel processing equipment. Whether you're producing dowels, edgebanding rolls, or sizing lumber for cabinetry and furniture, the Baker BX is a top choice in woodworking machinery supplies and parts.
Key Features & Benefits
High-Performance Cutting
• Double-head design allows for higher production rates and increased efficiency.
• Thin-kerf bandsaw blades reduce material waste and increase yield.
• Adjustable blade height via hand crank for precise cuts and flexibility.
Heavy-Duty Construction & Durability
• Built with CNC-machined, dynamically balanced steel bandwheels for smooth operation.
• Spring or optional air tensioning system ensures consistent blade performance.
• Reinforced frame and robust components enhance longevity and reliability.
Versatile & Customizable
• Available with one to nine heads on a single frame, adaptable to production needs.
• Options like return conveyors and rear hold-down systems for enhanced workflow.
• Fully variable feed speed from 20 to 120 feet per minute for different material types.
Enhanced Productivity & Safety
• Two-sided feedworks with powered hold-downs provide stability for varied material widths.
• Low-profile flat guide system ensures precise cuts with minimal deviation.
• NEMA 12 electrical enclosure with overload protection for secure operation.
- Guides: Baker Low-Profile Flat Guide
- Number of Heads: 1
- Height: 68" (2.03 m)
- Length: Single is 180" (4.57 m). Add 55" (1.4 m) for every additional head
- Weight: Single Model "B" is 2,800 lbs (1,270 kg). Add 1,300 lbs (590 kg) per additional head. Single Model "BX" is 3,800 lbs (1,724 kg). Add 1,800 lbs (816 kg) per additional head.
- Width: "B" model is 77" (1.96 m); "BX" model is 85" (2.16 m)
