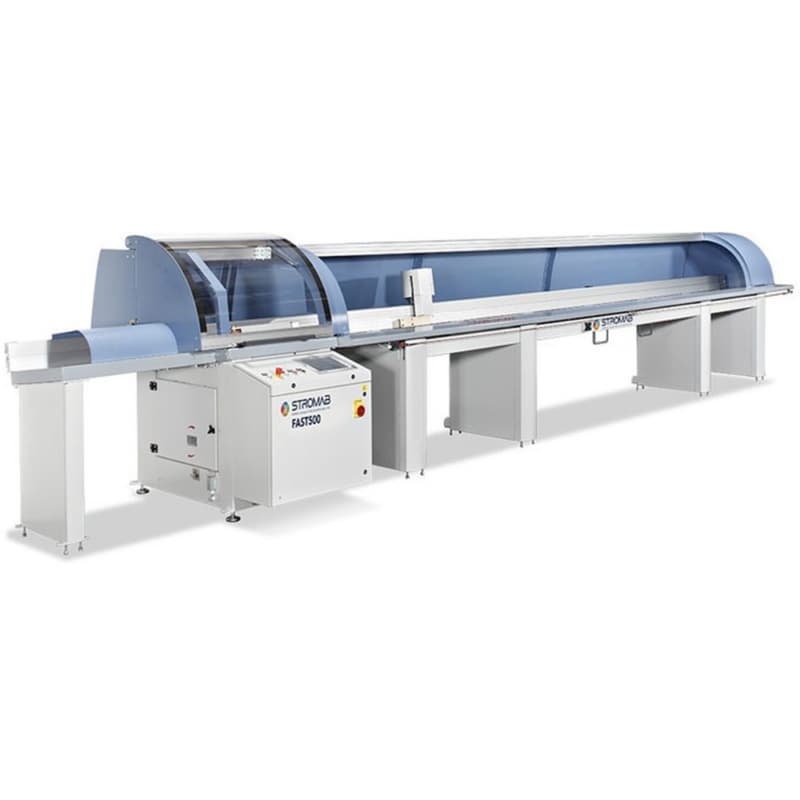

The Stromab FAST 500 Matrix is a high-speed automatic crosscut saw designed for precision, efficiency, and seamless wood optimization. Engineered with an electronic push-feed system, it ensures accurate positioning and maximum cutting speed. This saw is ideal for 90° up-cutting applications, working with both single bars and stacked materials. With a cutting cycle of just 2 seconds, it delivers up to 40% higher productivity compared to standard machines. Its advanced software architecture simplifies programming and integrates seamlessly with modern production workflows.
Key Features & Benefits
High-Speed Performance for Increased Productivity
• Delivers a rapid 2-second cutting cycle, significantly boosting output.
• Processes both single bars and stacks, optimizing workflow efficiency.
• Achieves up to 40% higher production capacity than standard crosscut saws.
Precision Cutting with Advanced Positioning
• Rack-and-pinion push-feed system and brushless Motor ensure unmatched accuracy.
• Automatic photocell measurement (OPTI function) adjusts cutting parameters for precision.
• Fluorescent mark detection (OPTI PLUS function) eliminates knots and wood defects.
Smart Software Integration for Optimized Workflow
• 12†high-resolution touchscreen with an intuitive Linux-based interface.
• Customizable cutting lists with automatic optimization to reduce waste.
• Seamless connectivity via Ethernet or USB for easy data import and export.
- Cutting Execution Cycle: 2 Seconds
- Loading Capacity: DA 78.740" A 551.181"
- Max Boards Weight: 176.37 lbs
- Max operating pressure: 87-116.03 PSI
- Max Positioning: 295.27 FPM
- Max Return Speed: 295.27 FPM
- Max Speed: 295.27 FPM
- Positioning Accuracy: =+/- 0.4mm
- Blade Diameter: 19"
- Blade Rotation Speed: 3500 RPM
- Max Cutting Capacity: 15.354" x 0.590" x 7.874"
