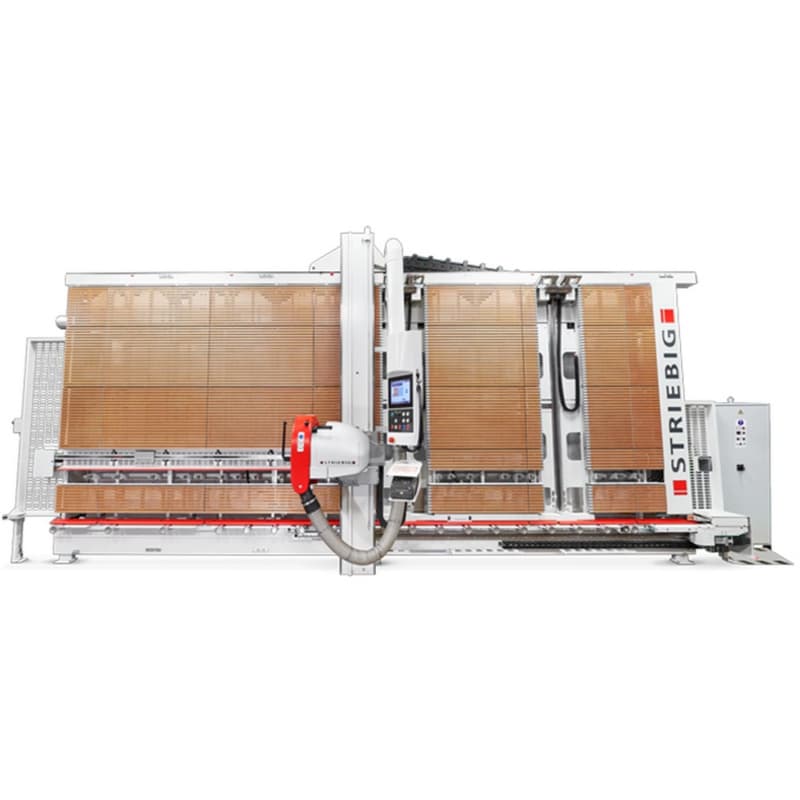

Made for professionals demanding ultra-precise cutting and seamless automation, the Striebig 80 mm 1 Vertical Panel Saw 4D redefines industrial performance. Featuring fully automated horizontal and vertical workpiece transport, it minimizes manual labor while maximizing operational efficiency. This cutting-edge saw consistently delivers superior quality and ensures smooth, effortless operation for a single operator. Ideal for high-volume production, it significantly enhances speed, safety, and precision in every cut. Equipped with advanced systems for automatic panel lowering, programmable alignment, and intelligent cutting optimization, this saw is designed to elevate your production workflow to new heights.
Key Features & Benefits
Fully Automatic Panel Lowering Smooth Handling for Heavy Panels
• The PAV system automatically lowers and transports the panel with precision.
• Coated clamps provide a secure grip on delicate surfaces without damage.
• Each clamp can hold up to 130 kg, ensuring stability for large workpieces.
Programmable Panel Feeder Precision Positioning with Minimal Effort
• The PPS system moves panels horizontally with 0.1 mm accuracy for perfect alignment.
• Panels rest securely on a roller-supported surface, preventing movement errors.
• Automatic positioning reduces manual intervention, enhancing productivity.
Intelligent Cutting Optimization Efficient Material Utilization
• The S ExpertCut 4D system ensures optimal cutting sequences for reduced waste.
• Automated cutting improves repeatability and production consistency.
• An integrated label printer marks workpieces for easy identification and tracking.
Advanced Control & Safety User-Friendly and Reliable Operation
• 12" touchscreen interface provides intuitive controls and real-time adjustments.
• Laser-guided cutting display enhances accuracy for complex cuts.
• Safety features like a light curtain and automatic panel detection ensure secure operation.
- Compressed Air Connection: 6-10 Bar
- Extraction Connection: ø 140 mm
- Mains Connection: 3 x 400 V / 50 Hz
- Saw Blade Bore: 30 mm *3
- Saw Blade Diameter: 300 mm *2
- Saw Blade Speed: 4800 RPM
