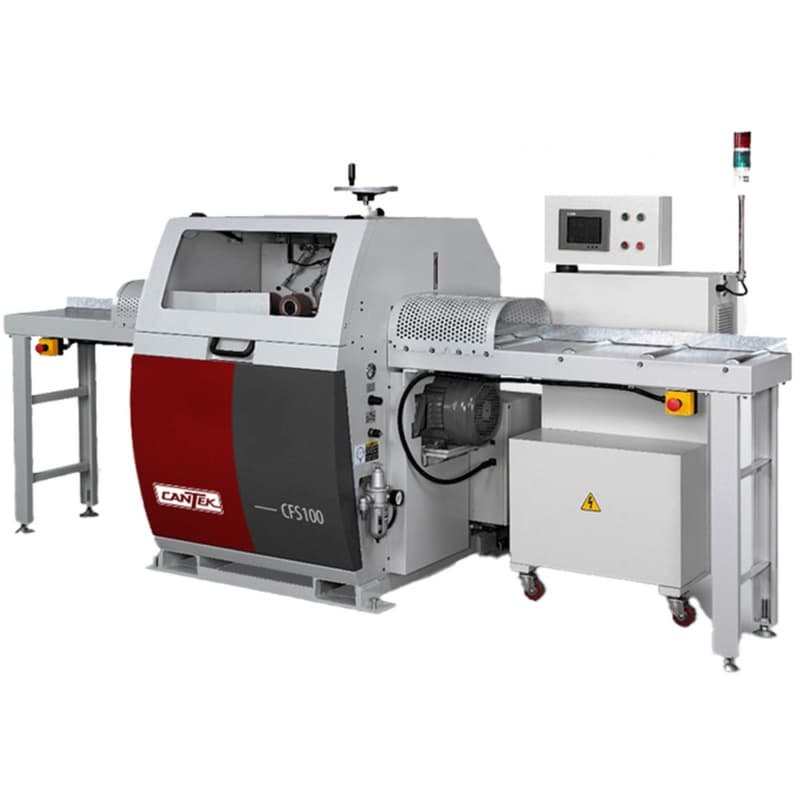

The Cantek CFS-100 Defecting Cut-Off Saw is a high-speed, economical solution for defect cross-cutting with partial optimization. Designed to significantly boost production efficiency, it offers 3 to 5 times higher output than manual cut-off saws. By scanning for defects marked with a fluorescent crayon, this saw ensures precise and automated defect removal. Featuring multiple cutting modes, a robust 10HP motor, and an 18" blade, it delivers smooth and accurate cuts for wood mouldings, flooring, finger joint blocks, and more. Its compact design and advanced automation make it a powerful addition to any woodworking operation.
Key Features & Benefits
Boost Your Productivity with Automated Defect Detection
• Detects defects marked with a fluorescent crayon for high-speed, precise cutting.
• Enhances production rates by 3 to 5 times compared to manual cut-off saws.
• Improves material yield by up to 5% over manual cutting methods.
Achieve Precision Cutting with Flexible Modes
• Offers fixed, sequential, and defect-cutting modes for optimal flexibility.
• Achieves +/1mm (0.0393") cutting accuracy for consistent results.
• Adjustable automatic trim optimizes material use and minimizes waste.
Experience Powerful Performance with Reliable Components
• 10HP motor operating at 3200 RPM ensures effortless cutting of various wood materials.
• 18" diameter blade provides a large cross-cutting capacity.
• Servo-driven feed motor enables fast, accurate motion and positioning control.
Enjoy User-Friendly Operation with Advanced Controls
• Touchscreen control panel with on-board synoptics and menu-based cutting modes.
• Cutting counter and programmable settings streamline the workflow.
• Defect blowing system with computerized logic control allows precise defect removal.
Utilize a Compact and Safe Design in Your Workspace
• Space-saving footprint compared to traditional manual cutting setups.
• Automatic feeding system and comprehensive safety guards enhance operator safety.
• Comes with a 48" infeed table and 40" flat outfeed table, with extended options available upon request.
- Air Requirements: 72-85 PSI
- Blade Size: 18"
- Max. Feed Speed: Variable to 262 ft/min (80 m/min)
- Max. Infeed Weight: 44 lbs (20 kgs)
- Min. Distance Between Marks: 0.787"
- Motor: 10 HP
- Saw Spindle Diameter: 30 mm
- Saw Spindle Speed: 3200 RPM
- Spindle Diameter: 30 mm
- Spindle Speed: 3200 RPM
- Weight: 2,190.000 lbs
