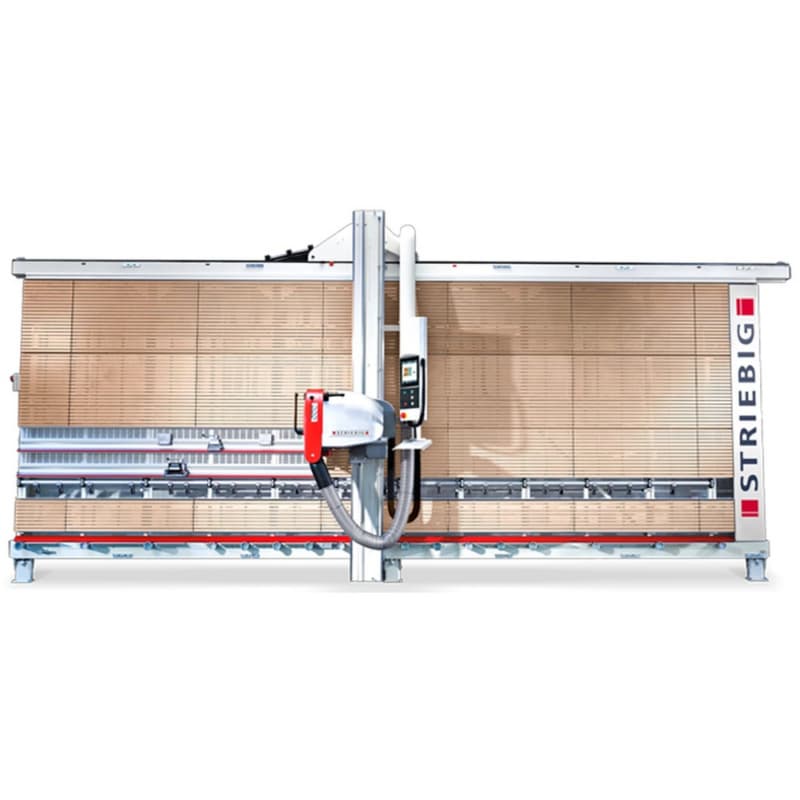

The Striebig 80 mm 1 Vertical Panel Saw EVOLUTION is engineered to deliver unparalleled cutting precision and efficiency. With a suite of automatic functions€”including automatic locking, swivelling, and the insertion and removal of the sawing unit€”this machine redefines ease of operation. Its intuitive 12" touchscreen interface provides complete control at your fingertips, ensuring every cut is executed with perfection. Ideal for high-demand production environments, EVOLUTION combines advanced technology with ergonomic design to streamline your workflow and enhance productivity.
Key Features & Benefits
Advanced Automation Simplify Your Workflow
• Automatic locking and swivelling of the sawing unit enable consistent, hands-free operation.
• Automatic insertion and removal functions streamline the cutting process, reducing setup time and manual intervention.
• The system automatically performs fine adjustments during horizontal cuts, ensuring optimal cutting height and precision with minimal effort.
Intuitive Control User-Friendly Operation at Your Fingertips
• A 12" touchscreen computer with a clear, color display visualizes all functions for effortless control.
• The Touch & Saw" concept lets you operate the saw safely with just your fingertips, simplifying daily operations.
• Digital measuring systems and laser-supported displays provide real-time feedback, ensuring every cut meets your exact specifications.
Robust Design & Reliability Built for Consistent, High-Quality Results
• A self-supporting, welded frame and ALU centre support ensure maximum stability, enhancing long-term cutting precision.
• Integrated TRK dust extraction with super-silent noise insulation maintains a clean, quiet work environment, reducing downtime and maintenance.
• The control cabinet attached directly to the saw frame and UPS 24VDC ensure continuous operation, even during power fluctuations.
- Compressed Air Connection: 6-10 Bar
- Cutting Depth: 80 mm *1
- Extraction Connection: ø 140 mm
- Mains Connection: 3 x 400 V / 50 Hz
- Saw Blade Bore: 30 mm *2
- Saw Blade Diameter: 300 mm
- Saw Blade Speed: 4800 RPM
- Wattage: 7.3 kW
