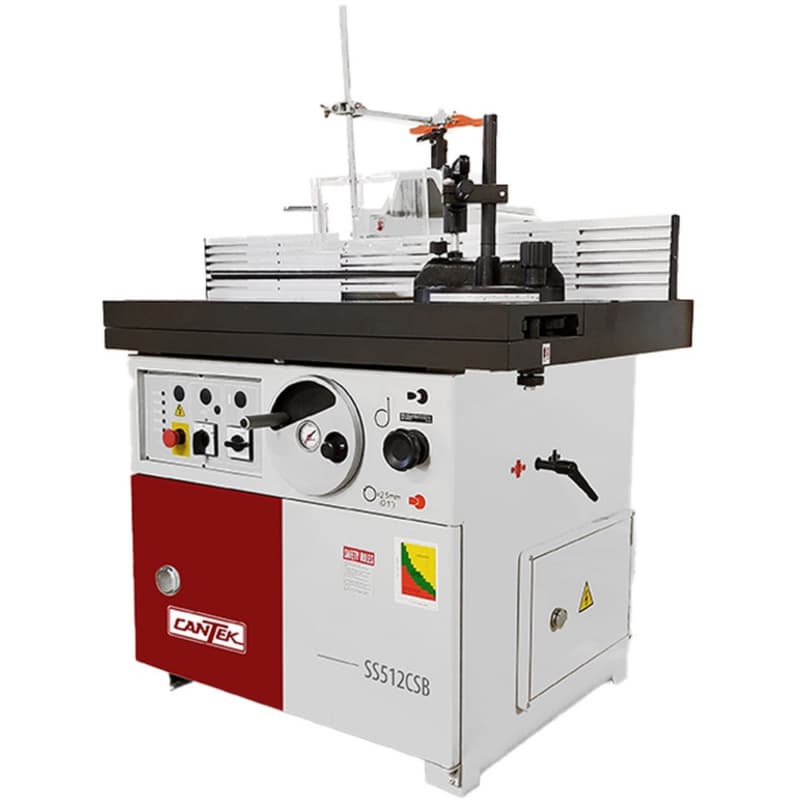

The SS512CSB Sliding Table Shaper from Cantek is designed for demanding production environments, providing high-precision edge profiling, molding, and tenoning. Featuring a 7.5HP spindle and a smooth-operating cast iron sliding table, this shaper is ideal for high-volume production where both precision and speed are crucial.
Key Features & Benefits
Built for Stability and Accuracy in Every Pass
- Heavy-duty cast iron table and shaping column dampen vibration
- Sliding table runs on bearings, providing smooth, stable movement during shaping
- Ground and polished table includes insert rings and T-slots for jigs
Dual Direction 7.5HP Spindle for Maximum Versatility
- Powerful 7.5HP motor supports large profile cutters with ease
- Forward/reverse spindle rotation allows compatibility with various tooling types
- Electronically balanced spindle ensures smooth operation with reduced vibration
Fine-Tune Adjustments for Precision Shaping
- Micro spindle height adjustment with dial indicator allows for accurate setup
- Independent micro-fence adjustments on both sides provide fine-tuning capability
- Adjustable "finger" style fence offers excellent material support and control
Speed Control for Any Application
- Five spindle speeds (3000 / 4000 / 6000 / 8000 / 10000 RPM) readily accessible
- V-belt drive system ensures consistent and powerful spindle operation
- Speed selection enables optimized shaping for various materials and cutter types
Designed with Operator Safety in Mind
- Electric spindle brake provides quick stops and reducing downtime
- Spindle lock with safety limit switch prevents the machine from running when engaged
- Safety-enhancing design elements reduce risk during spindle changes or setup
Ready for Increased Throughput with Feeder Support
- Cantek Power Feeder table is pre-drilled to accept feeder base
- 1 1/4" interchangeable cutter spindle gives flexibility for various shaping tasks
- Compatible with tenoning and mitering jigs for expanded shaping capabilities
- Weight: 1,166 lbs
- Dust Port: 1 - 5" on guard, 1 - 4" in table
- Fence Size: 6" x 43"
- Max. Useful Spindle Length: 5-1/2"
- Spindle Diameter: 1-1/4"
- Spindle RPM: 3000/4000/6000/8000/10000 RPM
- Spindle Taper: 5 MT
- Table Size: 31-1/2" x 39.4"
- Unit Type: Shaper
- Useable Length Of Spindle: 5-1/2"
- Vertical Spindle Stroke: 7"
