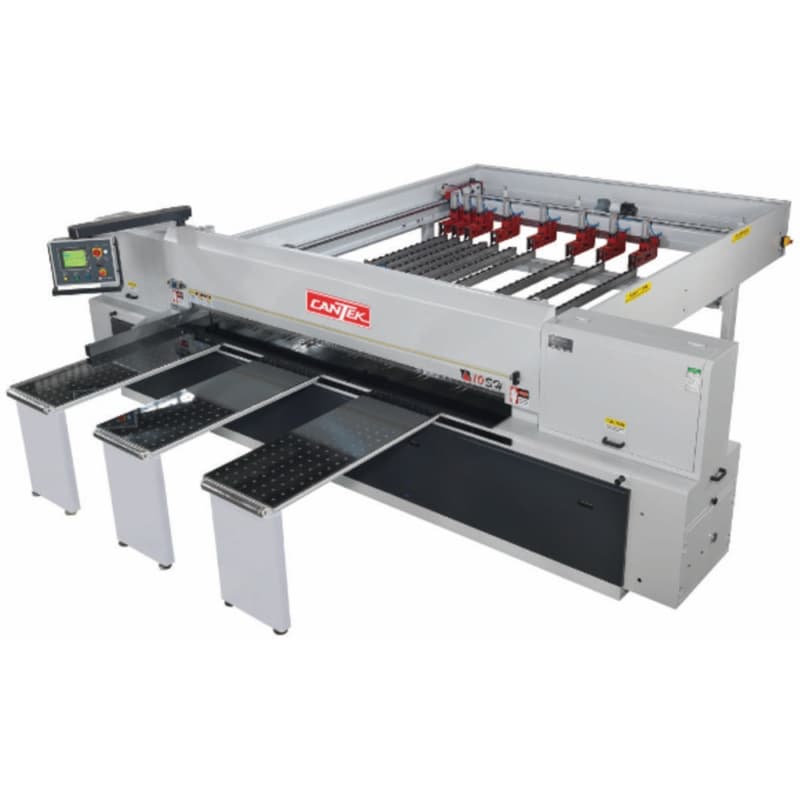

The Cantek TPS-CSR Series is a powerful and accurate panel sizing solution designed for small to mid-sized manufacturers. Built for production efficiency, this front-loading machine ensures clean, chip-free cuts with an industrial-grade design and a user-friendly PC interface. Available in 8, 10, and 12 models, it features an 18HP saw motor and a carriage system running on hardened guide rails for smooth, precise operation.
Key Features & Benefits
Precision Cutting for High-Quality Results
- 18HP saw motor delivers powerful and consistent performance.
- Saw carriage on hardened round guide rails with (8) copper wheels ensures stability.
- Double-side aligner guarantees perfectly square cuts during crosscutting.
User-Friendly Control for Maximum Efficiency
- PC-based control system for direct programming & cutting list imports.
- On-screen pattern editing & built-in optimization software streamline workflow.
- Programmable pusher beam with rack-and-pinion system for precise positioning.
Enhanced Handling & Loading Capability
- Front-loading operation simplifies material handling for faster processing.
- (3) or (4) air flotation tables support smooth panel movement & reduce manual effort.
- 7/8/9 pneumatic grippers securely handle materials during cutting.
Versatile & Durable Construction
- Available in 8, 10, and 12 models to suit various production needs.
- Maximum cutting height of 4" allows multiple sheet operations.
- High-speed rack-and-pinion drive ensures fast cutting & quick return speed.
- Grippers: 8 Units
- High Pressure Blower Motor: 3 HP (2.2 KW)
- Max. Cutting Height: 100 mm
- Max. Cutting Length: 3200 mm
- Max. Gripper Opening: 110 mm
- Max. Saw Blade Projection: 105 mm
- Pusher System Drive Motor: 1 KW
- Pusher System Pull Speed: 1~70 m/min
- Pusher System Push Speed: 1~60 m/min
- Return Speed: 90 m/min
- Saw Carriage Drive Motor: 2 HP (1.5 KW)
- Side Aligner Motor: 90 W
- Spindle Diameter: 1" (25.4mm)
- Table Height From Floor: 850 mm
