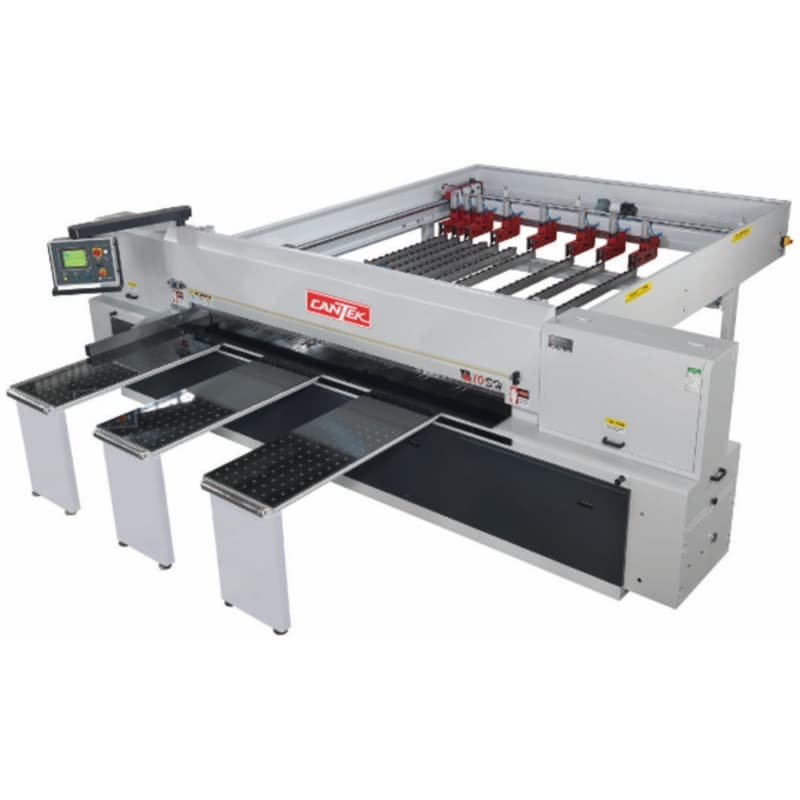

The Cantek TPS-CSR Series is a high-performance panel sizing solution built for small to mid-sized manufacturers. With an industrial-grade design and a user-friendly PC control interface, this machine ensures precise cutting with a smooth, chip-free finish.
Available in 8, 10, and 12 models, the CANTEK 8 Model features a powerful 18HP saw motor and a sturdy carriage running on two hardened round guide rails with (8) copper wheels. The adjustable cutting speed and double-side aligner enhance accuracy, making it an efficient and reliable choice for panel processing.
Key Features & Benefits
Precision Cutting for High-Quality Output
- Delivers chip-free cuts for a superior finish.
- Adjustable cutting speed adapts to material thickness and requirements.
- Integrated double-side aligner ensures perfectly square crosscuts.
User-Friendly Controls for Seamless Operation
- PC-based control system for easy programming & real-time adjustments.
- Supports direct input of cutting lists or import through built-in optimization software.
- On-screen pattern editing enhances workflow flexibility and efficiency.
Durable & Efficient Construction
- Heavy-duty 18HP saw motor for powerful & consistent cutting performance.
- Saw carriage on hardened round guides with (8) copper wheels for smooth operation.
- Rack and pinion drive system ensures accurate pusher beam adjustments.
Optimized Material Handling
- Front-loading design streamlines the feeding process for increased productivity.
- (7) pneumatic grippers securely position materials for precise cuts.
- (3) or (4) air flotation tables minimize handling effort and prevent surface damage.
- Grippers: 7 Units
- High Pressure Blower Motor: 3 HP (2.2 KW)
- Max. Cutting Height: 100 mm
- Max. Cutting Length: 2600 mm
- Max. Gripper Opening: 110 mm
- Max. Saw Blade Projection: 105 mm
- Pusher System Pull Speed: 1~70 m/min
- Pusher System Push Speed: 1~60 m/min
- Return Speed: 90 m/min
- Saw Carriage Drive Motor: 2 HP (1.5 KW)
- Side Aligner Motor: 90 W
- Spindle Diameter: 1" (25.4mm)
- Table Height From Floor: 850 mm
