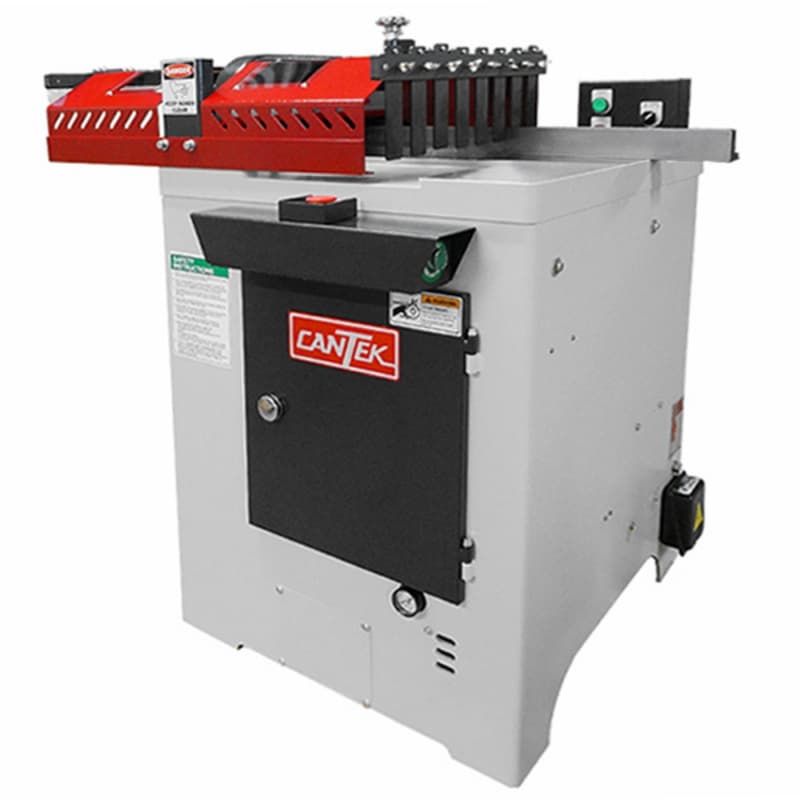

The Cantek PCS18 Left Hand Pneumatic Cut-Off Saw is designed to enhance crosscutting efficiency while ensuring maximum safety. With a powerful 10HP motor and an adjustable cutting stroke, this saw handles a wide range of materials with precision and speed. Built for high production environments, it delivers consistent performance with added safety features, including an infeed/outfeed safety guard, microswitches on all access doors, and a security bolt on the saw access door. Whether you're processing lumber or other materials, the PCS18 is engineered to improve workflow and productivity.
Key Features & Benefits
Versatile Cutting Specifications for Diverse Materials
• Handles materials up to 2" x 12", 3" x 11", and 4" x 10" for diverse cutting needs.
• Adjustable cutting stroke ensures the perfect balance of speed and cut quality.
• Fast cutting cycle with up to 45 strokes per minute boosts productivity.
Reliable Power and Precision for Heavy-Duty Use
• Equipped with a robust 10HP main motor for consistent cutting power.
• Precision-ground cast iron table surface enhances cutting accuracy.
• Pneumatic foot pedal operation provides smooth and controlled cutting (optional dual push-button control available).
Safety Mechanisms for Operator Assurance
• Infeed/outfeed safety guard minimizes risk during operation.
• Microswitches on all access doors prevent accidental engagement.
• Security bolt on the saw access door adds an extra layer of protection.
Customizable Clamping for Varied Workpiece Handling
• Adjustable material clamp accommodates varying workpiece thicknesses.
• CSA/UL magnetic switch ensures compliance with safety and electrical standards.
- Air Requirements: 9.8 CFM
- Arbor Diameter: 1"
- Blade Size: 18"
- Blade Speed: 3600 RPM
- Cutting Capacity: 2" x 12", 3" x 11", 4" x 10"
- Cycle Operation: Air
- Cycle Speed: 45 Strokes/min
- Dust Exhaust Diameter: Ø4"
- Net Weight: 770 lbs
- Power Requirements: 230/3/60 = 28 Amps 460/3/60 = 14 Amps 575/3/60 = 11 Amps
- Saw Arbor Diameter: 1"
- Saw Blade Speed: 3600 RPM
- Shipping Weight: 902 lbs
