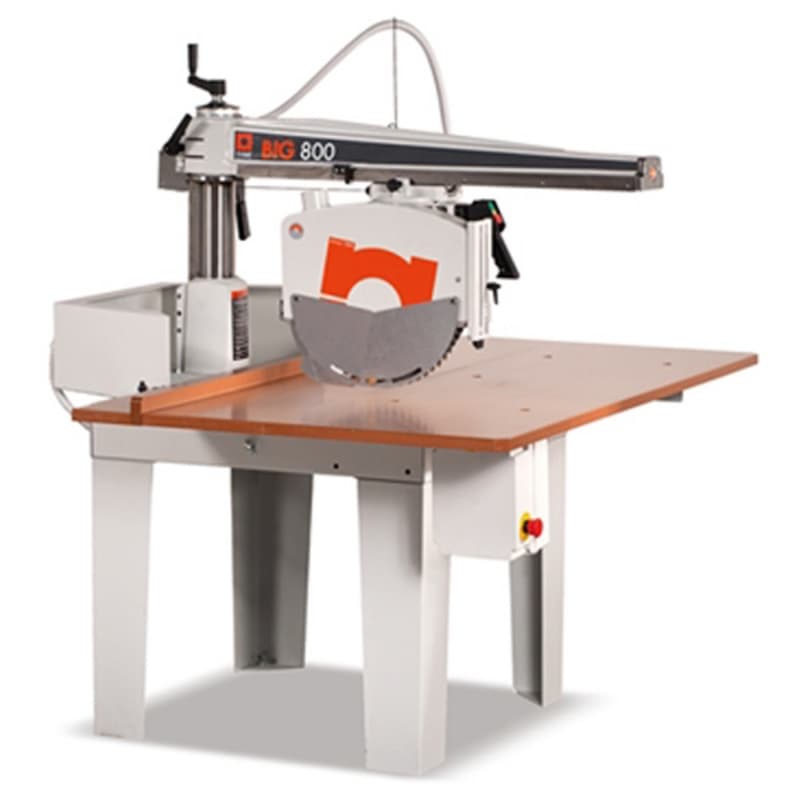

The Maggi 400 mm Radial Arm Saw BIG800CE is a high-performance cutting tool designed for precision, durability, and versatility in woodworking. Built with heavy castings and an eight-bearing saw carriage, this machine ensures smooth and accurate cuts for a variety of applications. Whether you're handling large crosscuts, deep rips, or angled cuts, this radial arm saw delivers European-quality craftsmanship that stands the test of time. Ideal for both small workshops and large production setups, it offers exceptional reliability and adaptability for professional woodworkers.
Key Features and Benefits :
• Unmatched Cutting Precision for Flawless Results:
• The 400 mm (15.75"") blade capacity (blade not included) allows for deep and clean cuts across different materials.
• The eight-bearing saw carriage enhances stability and precision, minimizing vibrations for superior cutting accuracy.
• Adjustable rip capacity from 0 to 40.5"" provides flexibility for various cutting tasks.
High-Powered Motor for Efficient Performance:
• Equipped with a 4 HP, 2800 RPM motor, this saw ensures smooth operation with consistent power output.
• The 1-inch arbor diameter supports a variety of high-performance blades for different woodworking needs.
• Designed for 230V 3-Phase power supply, making it ideal for industrial and professional use.
Versatile Cutting Capabilities for Complex Projects:
• Achieves a maximum crosscut length of 27.75 inches on 3/4"" thick material at 90 degrees.
• Provides a maximum depth of cut of 4.9 inches, suitable for deeper woodworking projects.
• Allows precise angled cuts with a max cut length of 19.68 inches at 45 degrees on the right side and 12.20 inches on the left.
Heavy-Duty Build for Long-Lasting Reliability:
• Constructed with heavy-duty castings for enhanced durability and long-lasting performance.
• Features a large 73.23"" x 45.08"" Table Size to support bigger workpieces with ease.
• Designed with an efficient dust collection system, including a dust chute on the blade guard and rear of the table, to maintain a clean work environment.
Easy Setup & Customization Options:
• Straightforward assembly for quick and hassle-free setup.
• Optional 400 mm x 30 mm bore blade with 60 ATB teeth available separately to match your specific needs.
- Blade Bore Diameter: 30 mm
- Cutting Height At 45°: 0 - 80 mm
- Height Of Blade: 0 - 45 mm
- Max. Cutting Height: 125 mm
- Max. Cutting Width: 705 x 20 h mm
- Saw Blade Diameter: 400 mm
- Table Dimensions: 1690 x 1155 mm
