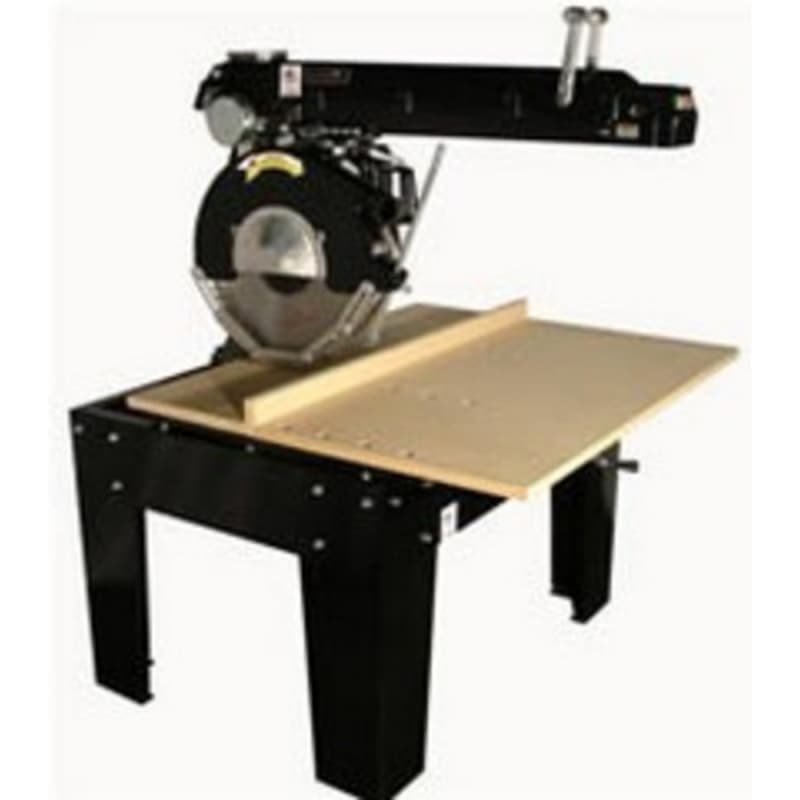

The Original Saw 7.5 HP Super Duty Radial Arm Saw 3571 is engineered for demanding industrial environments. This 16" saw features a 7.5 HP motor, delivers a 4 3/8" depth of cut, and offers a crosscut capacity of 24" to 32". Made in the USA.

• Cutting Performance: Performs crosscuts, bevel cuts, miter cuts, compound miter cuts, dado operations, and rip cuts (with optional Rip Kit upgrade). The Rip Kit enables safe lengthwise cutting with an integrated anti-kickback assembly. Works on wood, wood products, and plastics.
• Cutting Capacity: Delivers 4 3/8" depth of cut for thick and heavy materials. Offers crosscut range from 24" to 32" for large panels, doors, and structural components.
• Construction: Heavy cast iron arms and ductile iron components ensure vibration-free operation. Powder-coated, heavy-gauge steel frame and legs withstand harsh industrial conditions. Precision carriage rides on 8 wide-contact, double-row ball bearings.
• Safety: Integrated E-Stop cuts power immediately. HDPE lower blade guard provides complete blade coverage. Automatic blade braking system rapidly stops the blade after use.
• Work Surface: Standard 33" MDF table top with routed-in aluminum T-slots. Upgrade options include T-Slot extruded metal tables and T-Slot tables with HDPE inserts. Includes bolt-on enclosed table guard.
• Clamping and Feed: Manual clamps glide smoothly in aluminum T-slots. Optional pneumatic clamping systems available (two-front pushing or four-point clamping). Feed options include manual pull handle, hand crank operation, or semi-automatic electronic cross feed.
• Motor: 7.5 HP Variable Frequency Drive (VFD) motor for precise speed control. Designed for 1 phase operation. Multiple voltage options: 208V, 230V, 460V, and 575V.
