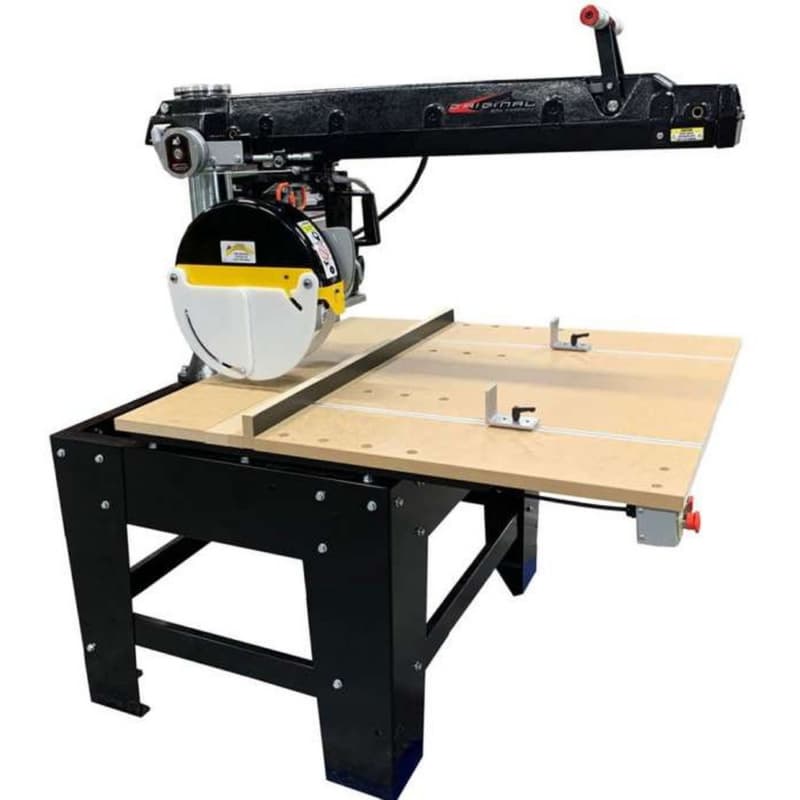

The Original Saw 3 Phase Super Duty Radial Arm Saw 3576 – the ultimate powerhouse engineered for the most demanding industrial environments. This 16" saw delivers a formidable 4 3/8" depth of cut and a generous crosscut range of 24" to 32", ensuring unparalleled precision on every project. Designed with an 850-pound robust construction, it guarantees exceptional stability even during high-volume production. Made in the USA, it embodies Original Saw Company’s commitment to quality, innovation, and reliability.
Key Features & Benefits
Versatile Cutting Performance for Maximum Flexibility
• Delivers a wide range of cuts including crosscuts, bevel cuts, miter cuts, compound miter cuts, dado operations, and rip cuts (with the optional Rip Kit upgrade).
• The Rip Kit upgrade enables safe, efficient lengthwise cuts with an integrated anti-kickback assembly, enhancing operational safety.
• Ensures precise and consistent cutting results across wood, wood products, and plastics for diverse applications.
High Cutting Capacity to Boost Productivity
• Provides a robust 4 3/8" depth of cut, perfect for thick and heavy materials.
• Offers a crosscut range from 24" to 32", ideal for handling large panels, doors, and structural components.
• Maximizes production efficiency by delivering accurate cuts that reduce material waste and speed up workflow.
Industrial-Grade Construction for Unmatched Durability
• Constructed with heavy cast iron arms and ductile iron components to ensure vibration-free operation.
• Features a powder-coated, heavy-gauge steel frame and legs designed to withstand harsh industrial conditions.
• Incorporates a precision carriage riding on 8 wide-contact, double-row ball bearings for smooth, consistent performance.
Enhanced Safety Features for Operator Assurance
• Equipped with an integrated E-Stop that immediately cuts power to prevent accidents.
• Includes an HDPE lower blade guard that offers full blade coverage, significantly enhancing operator safety.
• Utilizes an automatic blade braking system that quickly stops the blade after use, reducing risk during operation.
Customizable Work Surface for Optimized Material Handling
• Comes standard with a 33" MDF table top featuring routed-in aluminum T-slots for secure material clamping.
• Offers upgrade options such as T-Slot extruded metal tables and T-Slot tables with HDPE inserts for added stability.
• Includes a bolt-on enclosed table guard to restrict blade access and maintain a clean, safe work area.
Versatile Clamping and Feed Systems for Precise Control
• Standard manual clamps glide smoothly within the aluminum T-slots to hold materials securely.
• Optional pneumatic clamping systems (two-front pushing or four-point clamping) enhance material stability for repetitive tasks.
• Features versatile feed system options including a manual pull handle, hand crank operation, or semi-automatic electronic cross feed for optimal control.
Powerful 3 Phase Motor for Superior Efficiency
• Equipped with a high-performance 7.5 HP Variable Frequency Drive (VFD) motor designed for precise speed control and energy efficiency.
• Configured for 3 phase operation, ensuring reliable and consistent power delivery in industrial facilities.
• Offers multiple voltage options (208V, 230V, 460V, and 575V) to suit various electrical setups and facility requirements.
- Capable of Rip Cuts: Yes
- Cuttable Material: Plastic, Wood
- Max Crosscut: 32"
- Max Out Rip: 48-3/4"(1238 mm)
- Phases of Voltage Available: 3 Phase
- Recommended Usage: Capable of Running 2-3 Shifts Per Day
- Voltage Options: 208, 230, 460
- Max Miter at 3/4": 17", 21-1/2"
- Pneumatic Clamping Ability: Yes (Add on)
- Powerfeed Option: Yes (Add On)
- Blade Size: 16" (400 mm)
- Max Depth Cut: 4-3/8"
- Motor: 7.5 HP
- Shipping Dimensions: 72" x 52" x 48"
- Table Height: 33" (838 mm)
