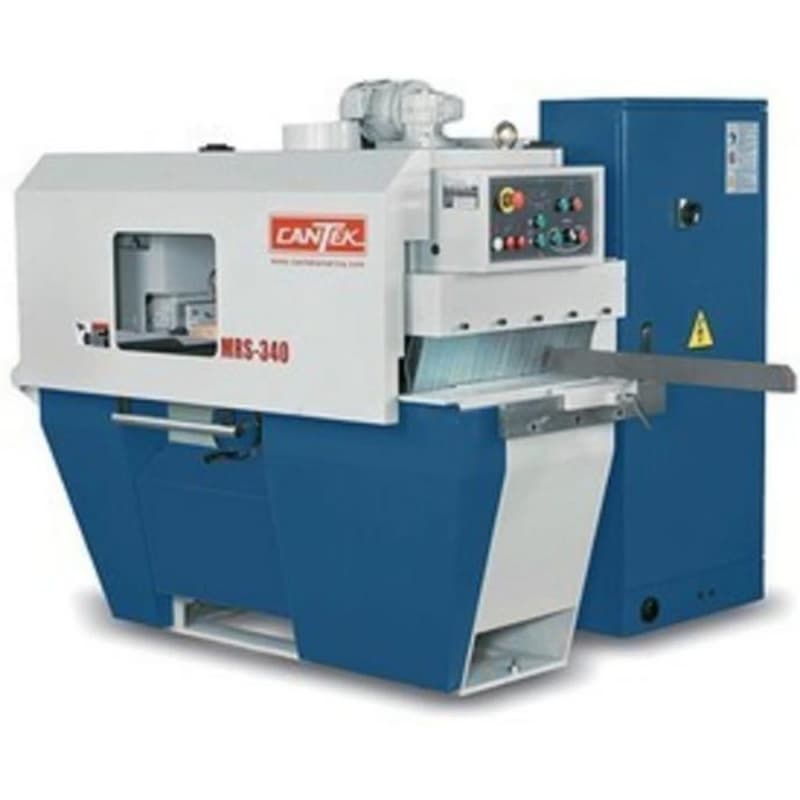

The Cantek Primo MRS-340M-2 Heavy Duty 2-Blade Shifting Multi Rip Saw is designed to maximize yield and efficiency in high-production settings. Featuring one or two motorized adjustable saw blades, this high-powered machine offers flexibility to optimize material usage. Its advanced servo motor system ensures precise blade positioning, while a laser guide helps operators visualize cuts for improved accuracy. A powerful 50HP motor (with optional 60HP or 75HP upgrades) and a sturdy cast-iron chain and track assembly provide exceptional durability. The MRS-340M-2 guarantees reliability and top-tier performance in rip-sawing applications.
Key Features & Benefits
Optimized Cutting Flexibility with Moving Blades
- One or two moving blades allow for maximum material yield.
- Servo motor system with ball screw and linear guideway ensures precise blade adjustments.
- Touchscreen control enables pre-set blade positions for efficient operation.
High-Powered Performance for Heavy-Duty Ripping
Standard 50HP main saw motor with optional 60HP or 75HP upgrades.
Variable speed feed with electronic overload protection adjusts feed speed automatically.
Supports up to 14" saw blades for cutting thicknesses up to 4".
Enhanced Accuracy with Laser Projection System
- Fixed and moving lasers project cutting lines for precise alignment.
- Joystick-controlled blade positioning for quick and accurate adjustments.
- Increases operator efficiency and material optimization.
Superior Material Control for Consistent Cuts
- Pneumatic top pressure rolls ensure stable and accurate material feeding.
- Four rows of safety anti-kickback fingers enhance operator protection.
- Powered outfeed roll efficiently evacuates ripped material from the machine.
Durable Construction for Long-Term Reliability
- Heavy-duty cast iron chain and track assembly ensures straight-line cutting.
- Insert-type chain track with replaceable steel or rubber inserts for extended durability.
- Automatic mechanical lubricator provides consistent chain lubrication to minimize wear.
- Feed Motor: 3 HP
- Max. Cutting Thickness: 2.95³ (75 mm) With 12" x3.4 mm Standard Blade 3.93" (100 mm) With 14" x3.4 mm Optional Blade
- Max. Cutting Width: 13.4" (340mm)
- Max. Material Width: 20.67" (525mm)
- Min. Material Length: 21.7" (550mm)
- Min. Saw Blade Diameter: 12" (305mm)
- Saw Arbor Diameter: 70 mm (2.8")
- Saw Arbor Motor: 50 HP Standard (60 or 75HP optional)
- Saw Arbor Speed: 4500 RPM with 12" standard blade
- Shipping Dimensions: 90" x 68" x 89"
- Thickness Adjustment Motor: 0.5 HP
