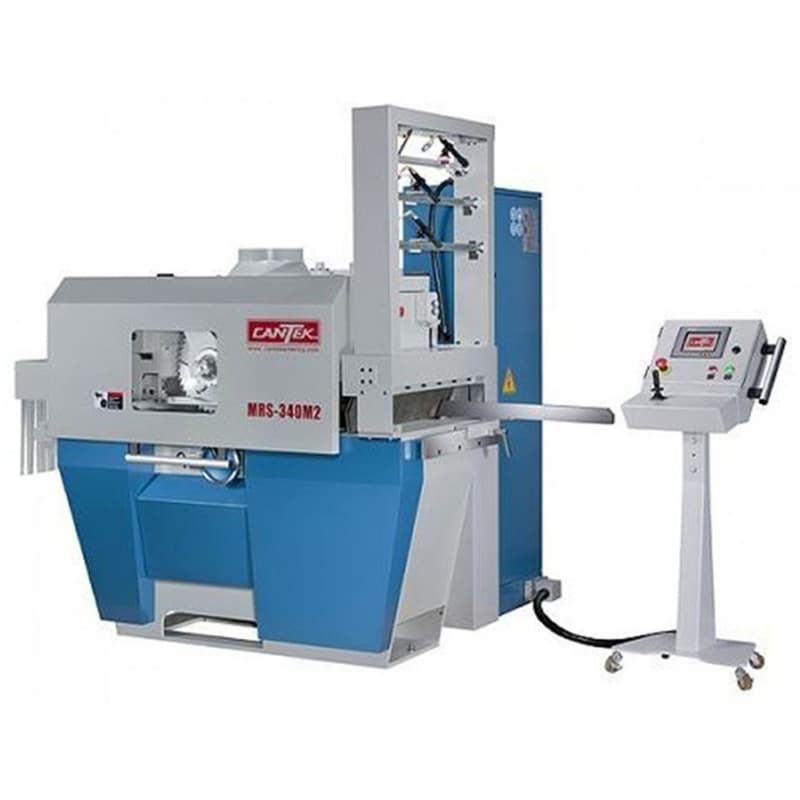

The Cantek MRS340M 2 Shifting Blade Multi Rip Saw maximizes material yield and efficiency in ripping operations. Equipped with one or two motorized moving saw blades, it offers ultimate flexibility for precise cuts. A powerful 50HP motor (with optional 60 or 75HP upgrades) ensures robust performance. The intuitive touchscreen control allows operators to store up to 10 programs with multiple settings. With laser-guided blade positioning and a precision servo motor system, the MRS340M delivers industry-leading accuracy and productivity.

Key Features & Benefits

Optimized Yield with Moving Blade Technology

• 1 or 2 moving blades provide maximum flexibility for enhanced material optimization.
• Servo motor-controlled blade adjustment ensures high precision.
• Laser projection system allows operators to visualize cutting lines for improved efficiency.

Powerful Cutting Performance with High-Output Motor

• Standard 50HP main saw motor, with optional upgrades to 60HP or 75HP.
• Variable speed feed system with electronic overload protection for consistent performance.
• Capable of handling a maximum cutting width of 13.4" between outside saws.

User-Friendly Control with Touchscreen & Joystick

• Touchscreen interface allows operators to store up to 10 programs with 10 settings each.
• Joystick control provides quick and easy blade positioning adjustments.
• Streamlined operation enhances workflow and reduces manual setup time.

Enhanced Durability with Precision Engineering

• Heavy-duty cast-iron chain and track assembly ensure straight-line cutting and long-term reliability.
• Automatic mechanical lubricator keeps the chain track in peak condition.
• Replaceable steel or rubber insert chain track enhances wear resistance.

Safety and Material Control for Accurate Cuts

• Four rows of safety anti-kickback fingers prevent material recoil.
• Pneumatic top pressure rolls provide optimal control over the material.
• Powered outfeed roll ensures smooth material evacuation post-cutting.

• Feed Motor: 3 HP
• Max. Cutting Thickness: 2.95³ (75 mm) With 12" x3.4 mm Standard Blade 3.93" (100 mm) With 14" x3.4 mm Optional Blade
• Max. Cutting Width: 13.4" (340mm)
• Max. Material Width: 20.67" (525mm)
• Min. Material Length: 21.7" (550mm)
• Min. Saw Blade Diameter: 12" (305mm)
• Saw Arbor Diameter: 70 mm (2.8")
• Saw Arbor Motor: 50 HP Standard (60 or 75HP optional)
• Saw Arbor Speed: 4500 RPM with 12" standard blade
• Shipping Dimensions: 90" x 68" x 89"
• Thickness Adjustment Motor: 0.5 HP
