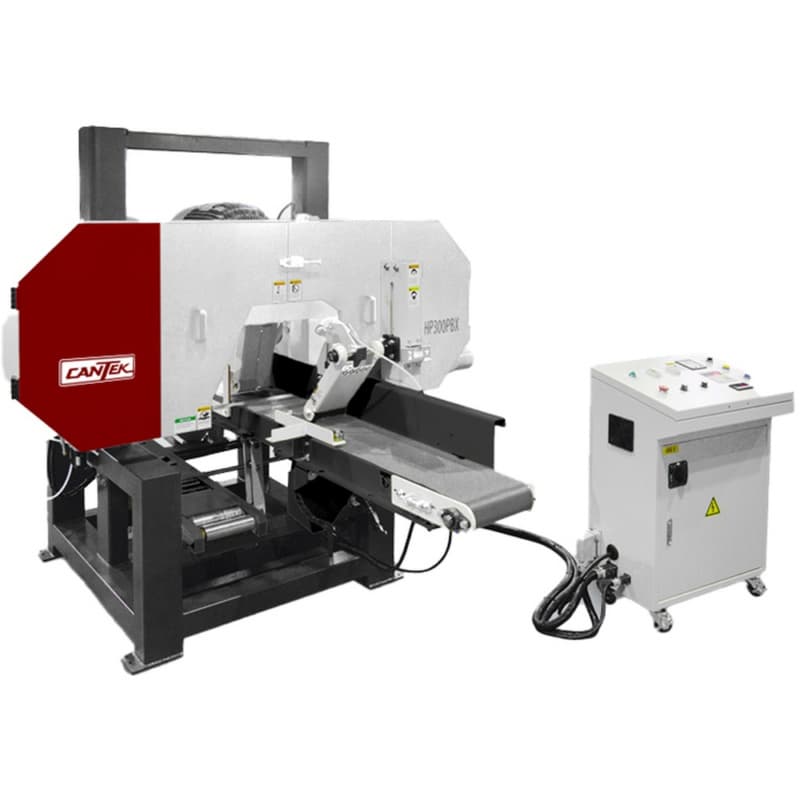

The Cantek HR300PBX Horizontal Resaw with Tilt is an industrial-grade bandsaw built for high-production resawing applications. Its tilting bed (0° to 45°) makes it the perfect solution for cutting bevel siding, moulding blanks, and custom millwork components. Powered by a robust 30HP saw motor and variable feed speed control, this machine delivers exceptional precision and flexibility to match your cutting requirements. With a solid steel frame, advanced blade guidance system, and digital thickness control, the HR300PBX ensures superior cut quality and efficiency, even for the most demanding jobs.
Key Features & Benefits
Versatile Cutting with Tilting Bed
- Adjustable feed belt tilts from 0° to 45° for straight or bevel cuts.
- Ideal for bevel siding, moulding blanks, and custom millwork applications.
- Expands production capabilities for a variety of woodworking needs.
Powerful and Precise Saw Motor
- 30HP saw motor with a variable speed inverter for optimal blade control.
- Runs a 2" wide blade on precision-machined, balanced solid steel wheels.
- Hydraulic blade tensioning system ensures stable and accurate cutting performance.
Effortless Thickness Adjustment
- Motorized blade height adjustment with digital position readout for precision.
- Adjustable left blade guide improves cut accuracy by staying close to the material.
- Quick setup for varied cutting applications, enhancing productivity.
Superior Material Handling
- Pneumatic pressurized hold-down rollers ensure consistent material feed.
- Reinforced urethane conveyor belt provides positive feeding & extended durability.
- Idle roller return conveyor streamlines operations for additional machining steps.
Advanced Control and Safety Features
- Mobile control panel with digital thickness control & feed speed display.
- Y Delta low-amperage starter ensures energy-efficient operation.
- UL/CSA-certified electrical components for enhanced safety & reliability.
- Conveyor Belt Size: 11.2" x 215"
- Dust Hood Diameter: 4" x 2
- Feed Speed: 0-148 FPM
- Machine Wheel Dimensions: 28" Dia. x 2" Wide
- Main Motor (Resaw Wheels): 30 HP
- Max. Blade Length: 188"
- Max. Input Board Size: 12" x 12"
- Max. Workpiece Size: 12" x 12"
- Saw Wheel Diameter: 28"
- Shipping Dimensions: 113" x 90" x 85"
- Shipping Weight: 4400 lbs
- Variable Feed Speeds: 0~148 FPM
