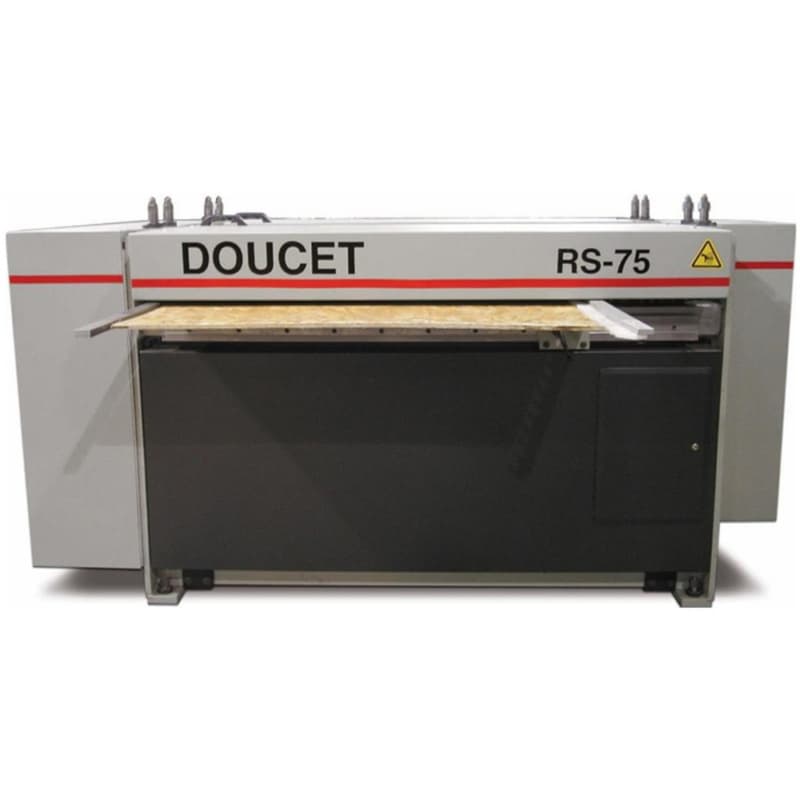

The Doucet RS-75 Panel Rip Saw is designed for high-precision ripping, grooving, and edging of plywood, OSB, MDF, HDF, and composite panels. Built for speed and versatility, it features an adjustable saw arbor, high-powered feed system, and robust construction to ensure consistent, accurate cuts with minimal downtime. With speeds of up to 75 FPM and 40 HP capacity, the RS-75 is the perfect solution for fabricators demanding efficiency and precision in a high-production environment.
Key Features & Benefits
Adjustable Saw Arbor Tailor Cutting to Your Material
• Height-adjustable arbor accommodates various panel thicknesses for versatile use.
• Quick-change adjustments adapt to different materials & production needs.
• Ensures consistent cutting depth for precise ripping & grooving operations.
High-Powered, Efficient Feed System Boost Productivity
• Two bottom feed rollers powered by a 1.5 HP motor ensure smooth material feeding.
• Top idler rollers with adjustable height & tension keep panels aligned for precision.
• Supports speeds up to 75 fpm with 40 HP capability, maximizing throughput.
Robust Construction & Material Versatility Built for Heavy-Duty Jobs
• Designed for plywood, OSB, MDF, HDF & composites, ensuring broad application use.
• Unlimited panel length capability enables processing of large sheets without interruption.
• Fully enclosed design with integrated dust outlet ensures a clean & safe work environment.
Enhanced Options for Greater Flexibility Customize Your Setup
• Simultaneous arbor height adjustment for fast, efficient setups.
• Optional additional powered bottom feed rollers for high-volume operations.
• Extra thickness capacity (up to 1") for handling a wider range of materials.
- Collector Outlet: 4000 CFM
- Feed Belt Speed: 75 FPM
- Panel Thickness Range: 0.25" to 0.72" (6 to 19mm)
- Panel Width Capacity: 60"
- Saw Capacity: 96"
