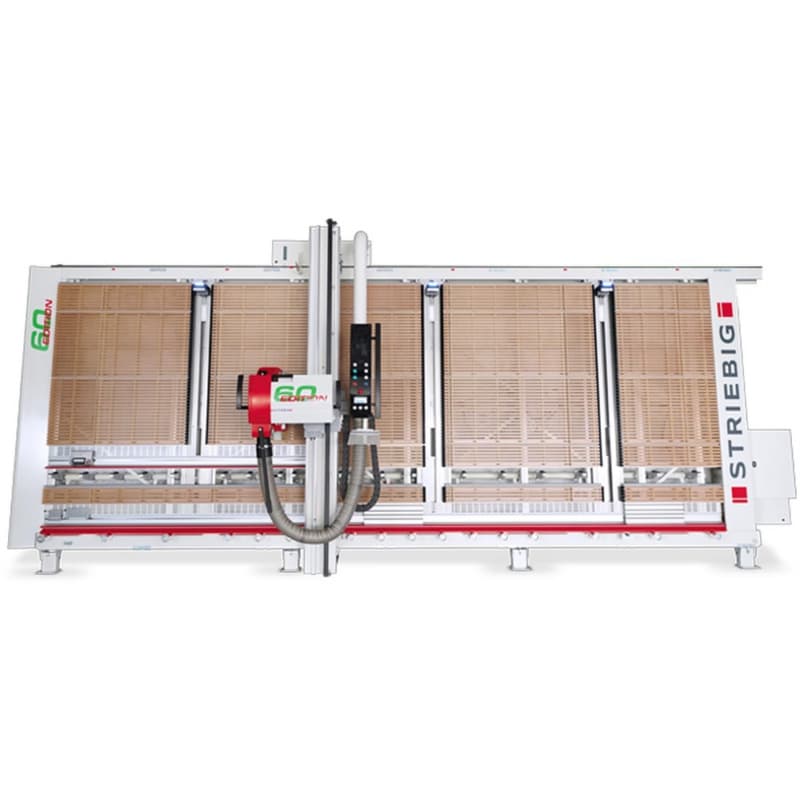

The Striebig 80 mm Vertical Panel Saw EDITION 60 celebrates 60 years of excellence by combining cutting-edge technology with timeless durability. This machine offers one-person operation with an integrated panel lowering device that delivers smooth, ergonomic cutting of panels up to 3000 2150 mm (or up to 5000 2150 mm with the optional unit). Built with comprehensive standard equipment and proven S accuracy, the EDITION 60 ensures short processing times and a safe, efficient workflow. Experience the perfect synergy of functionality, technology, and reliability for your wood processing needs.
Key Features & Benefits
Efficient One-Person Operation Streamline Your Workflow
• The integrated panel lowering device (PAV) automatically lowers panels, allowing one-person operation for uninterrupted production.
• Eliminates the need for manual panel turning, as cut strips can be divided vertically without additional handling.
• Optional additional panel lowering unit extends capacity, enabling processing of larger panels up to 5000 2150 mm and weights up to 240 kg.
Robust and Precise Construction Uncompromised Quality
• Built with a self-supporting, torsion-resistant welded frame on four solid feet, ensuring exceptional stability and long-term precision.
• The saw beam features a double locking mechanism for angular accuracy, guaranteeing consistent, perfect cuts.
• 17-fold roller support with pneumatically braked support rollers and a swivelling centre support maintain precise alignment across the entire cutting length.
Advanced Control & Intelligent Technology Enhance Productivity
• Operated via clear push-button controls and 2-hand positioning for the panel lowering device, providing intuitive, immediate control.
• Equipped with a 12" touchscreen computer, digital measuring systems (DMS-Y and DMS-X), and laser-supported horizontal cut display, ensuring precise and repeatable cuts.
• Status lights, operating hours counter, and an integrated document holder offer real-time feedback and data tracking, optimizing workflow and maintenance scheduling.
- Compressed Air Connection: 6-10 Bar
- Cutting Depth: 80 mm
- Extraction Connection: ø 140 mm
- Mains Connection: 3 x 400 V / 50 Hz
- Saw Blade Bore: 30 mm *1
- Saw Blade Diameter: 300 mm
- Saw Blade Speed: 4800 U/min
- Wattage: 8.8 kW
